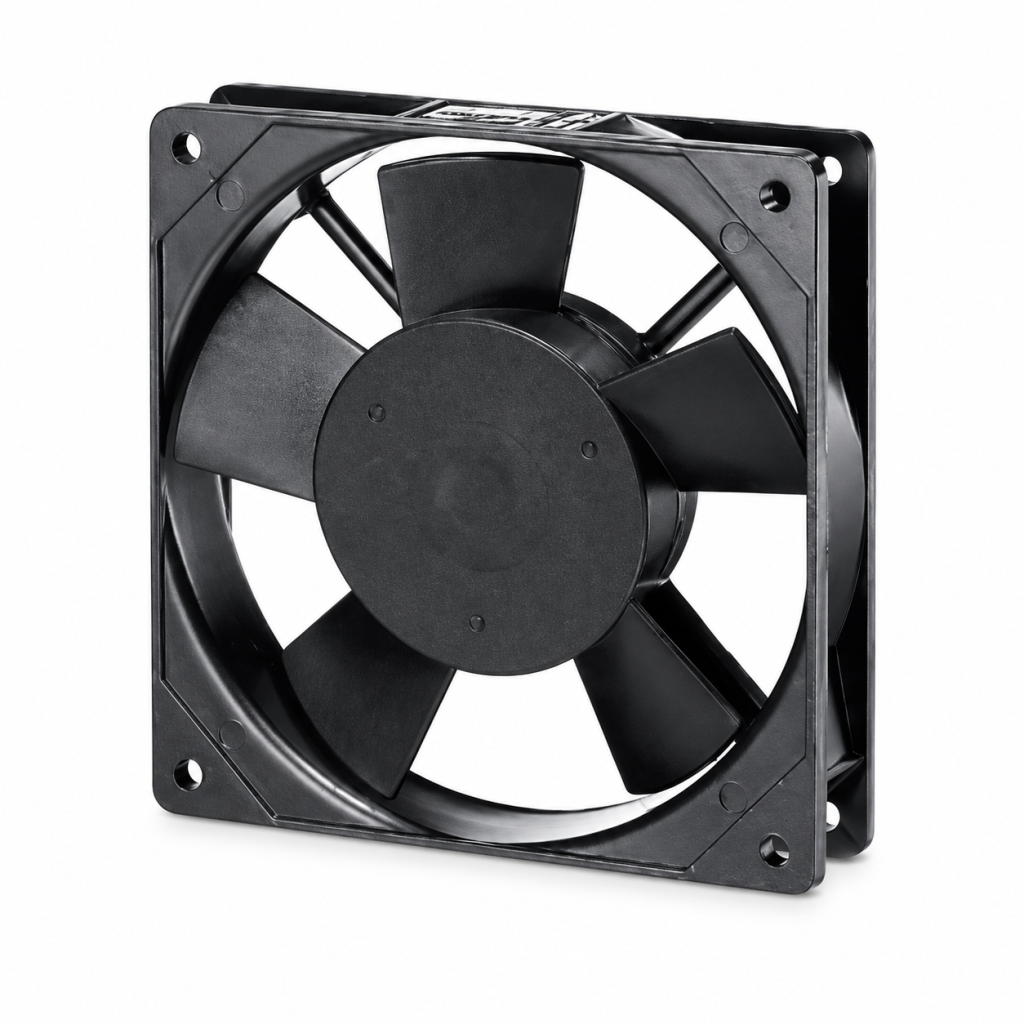

AC FANS
120×120×25 mm
(4.72x4.72x0.98 in)
PRODUCT SPECIFICATIONS
Frame: Die-cast Aluminum
Impeller: Plastic (UL 94V-0 P.B.T)
Ambient Temperature Range: -20℃ ~ +70℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball & Sleeve Bearing
Motor Structure: Shaded Pole
Motor Protection: Impedance Protected
Termination: Terminals & Lead wire
Weight: 380 g
Typical Applications
Industrial Equipment
Control Cabinets
Power Supplies
HVAC Systems

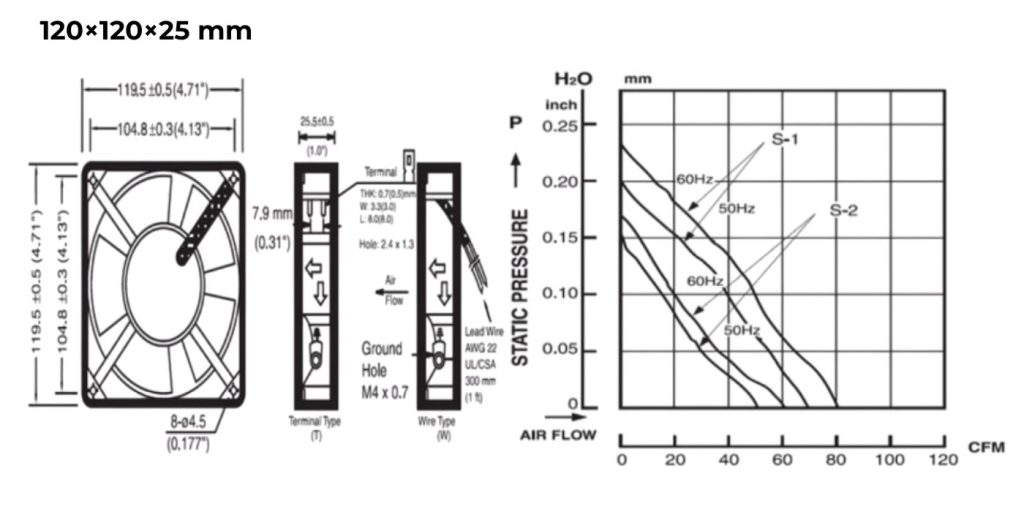

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HY11225HB | 115 | 50/60 | 0.19/0.18 | 18/16 | 2000/2350 | 64/80 | 5.08/5.84 | 42/44 |
| HY21225HB | 230 | 50/60 | 0.12/0.11 | 18/16 | 2000/2350 | 64/80 | 5.08/5.84 | 42/44 |
