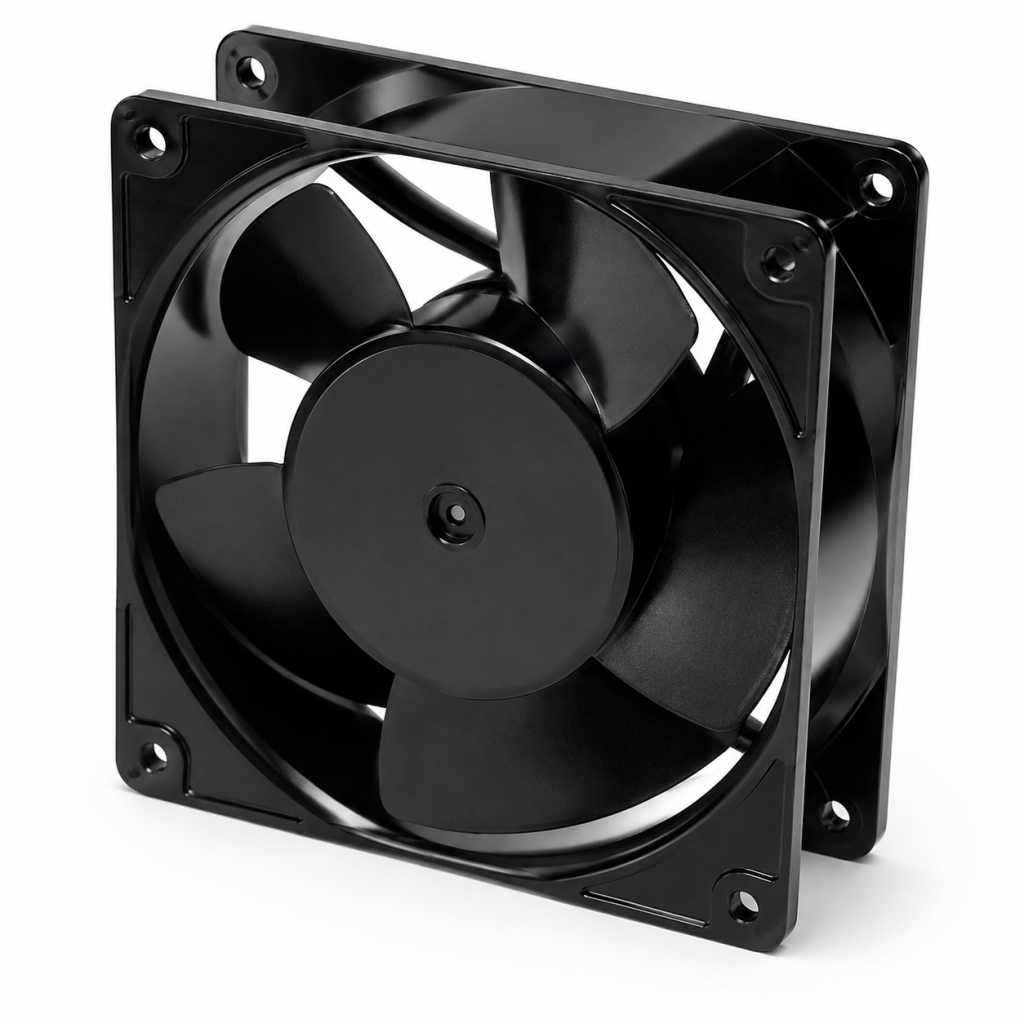

AC FANS
120x120x38 mm
(4.7x4.7x1.5 in)
PRODUCT SPECIFICATIONS
Frame: Die-cast Aluminum
Impeller: Steel Blades
Ambient Temperature Range: -10°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: AC External Rotor Capacitor Motor
Motor Protection: Impedance Protected
Termination: Terminals or Lead wire 310± 15mm
Weight: 534 g
Typical Applications
Industrial Equipment
Control Cabinets
Power Supplies
HVAC Systems

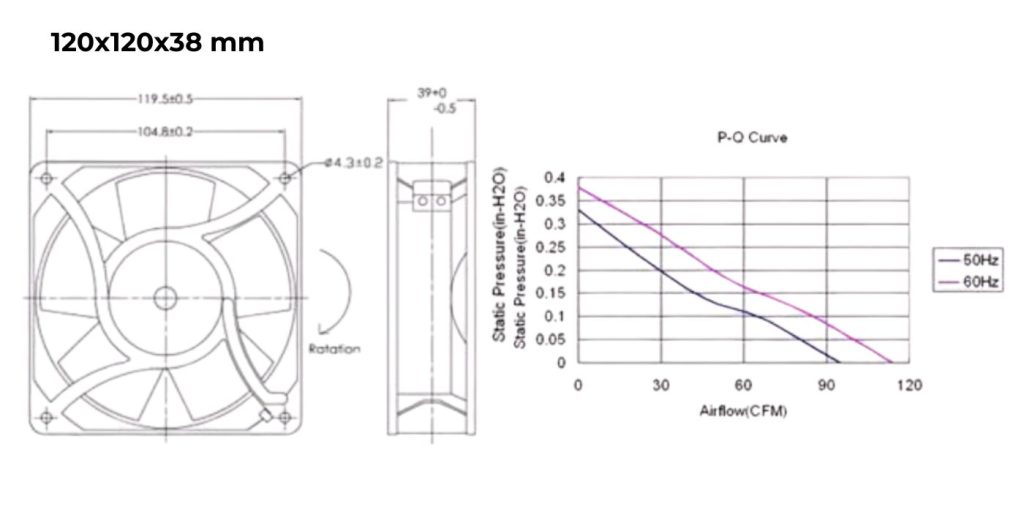

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYM11238HB | 115 | 50/60 | 0.13/0.11 | 12.5/11 | 2750/3250 | 105/123 | 7.11/8.89 | 47/49 |
| HYM21238HB | 230 | 50/60 | 0.06/0.06 | 12.5/11.5 | 2650/3150 | 103/120 | 7.11/8.89 | 47/49 |
