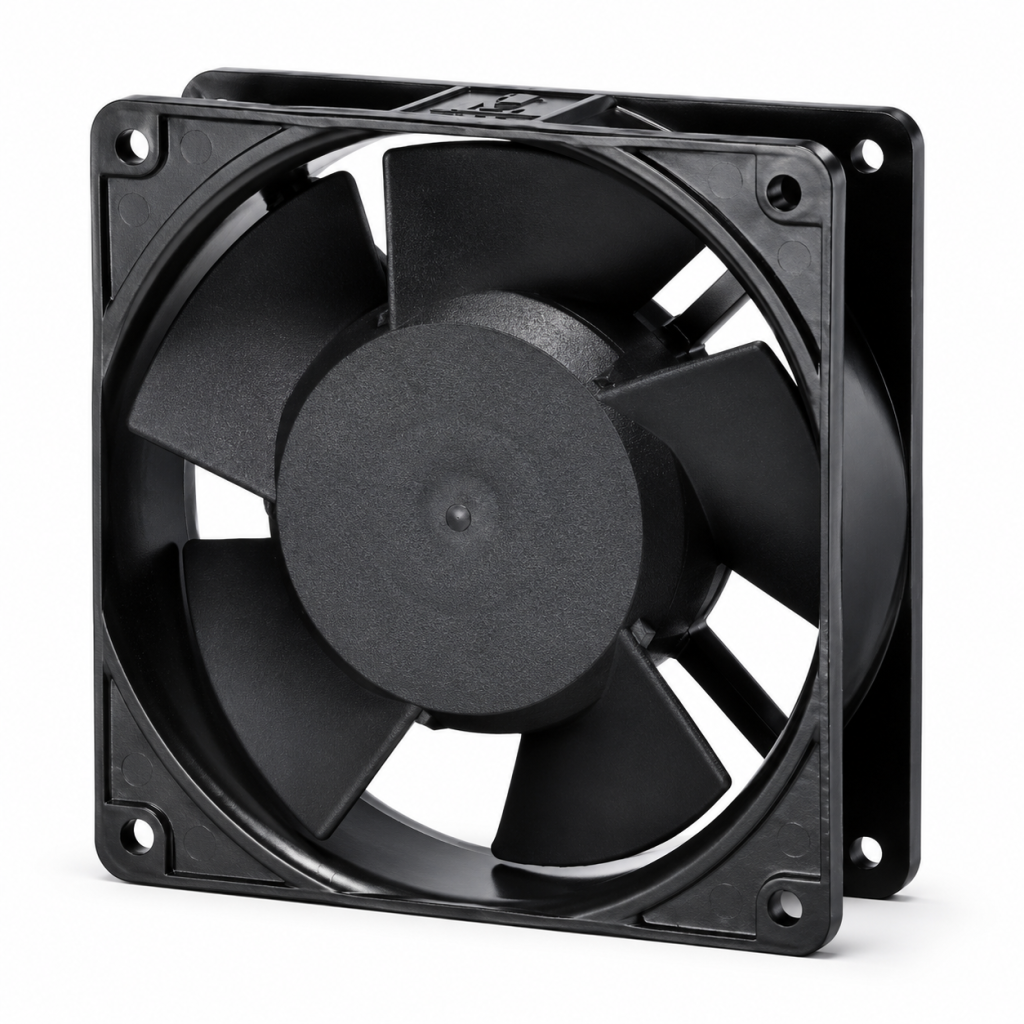

AC FANS

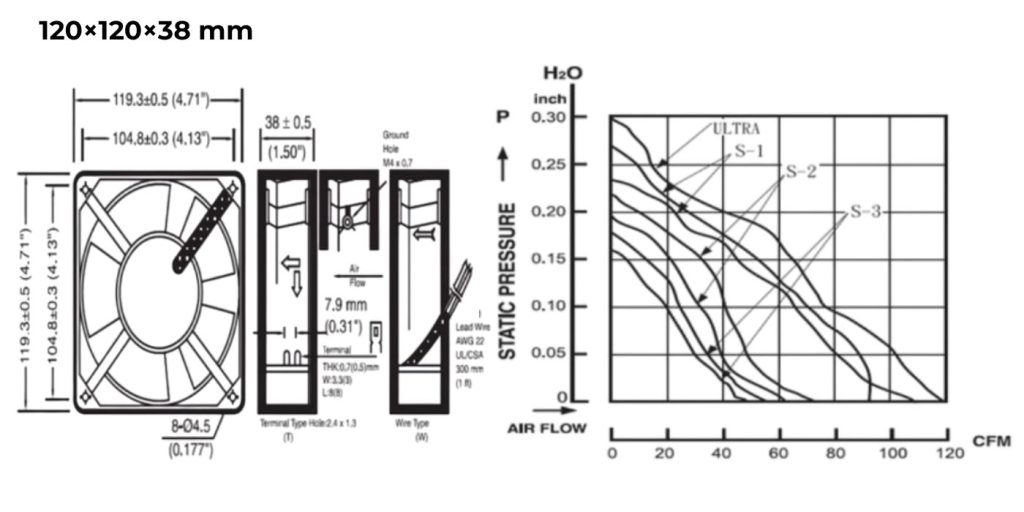

120×120×38 mm
(4.72x4.72x1.49 in)
PRODUCT SPECIFICATIONS
Frame: Die-cast Aluminum
Impeller: Plastic (UL 94V-0 P.B.T)
Ambient Temperature Range: -20℃ ~ +70℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball & Sleeve Bearing
Motor Structure: Shaded Pole
Motor Protection: Impedance Protected
Termination: Terminals & Lead wire
Weight: 600 g
Typical Applications
Industrial Equipment
Control Cabinets
Power Supplies
HVAC Systems
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HY11238XB | 115 | 50/60 | 0.25/0.19 | 18/19 | 2700/3000 | 112/120 | 6.85/7.62 | 40/45 |
| HY11238HB | 115 | 50/60 | 0.24/0.18 | 18/17 | 2700/3000 | 80/105 | 5.84/7.11 | 42/47 |
| HY21238XB | 230 | 50/60 | 0.14/0.12 | 18/19 | 2700/3000 | 112/120 | 6.85/7.62 | 40/45 |
| HY21238HB | 230 | 50/60 | 0.24/0.18 | 18/17 | 2700/3000 | 80/105 | 5.84/7.11 | 42/47 |
