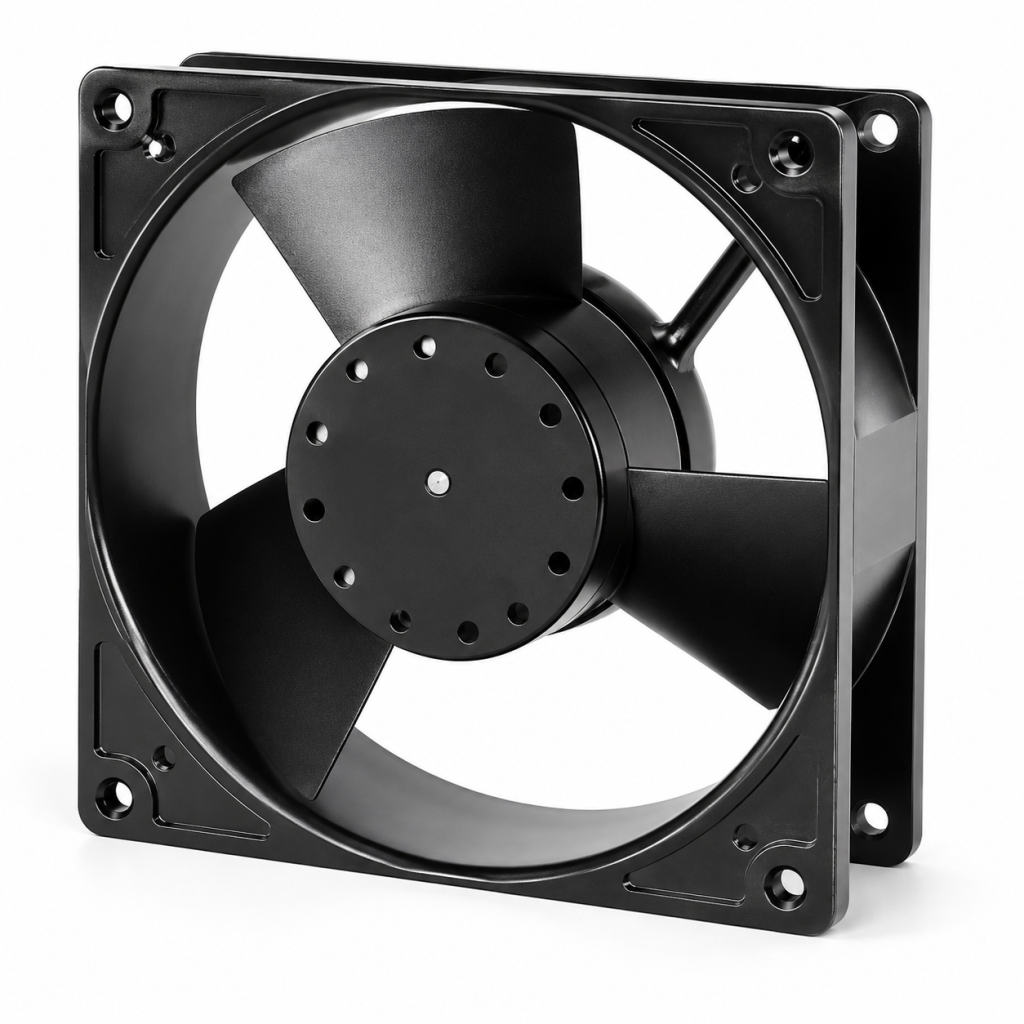

AC FANS
127x127x38.5 mm
(5x5x1.5 in)
PRODUCT SPECIFICATIONS
Frame: Die-cast Aluminum
Impeller: Steel Blades
Ambient Temperature Range: -30℃ ~ +80℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Shaded Pole Induction, Single Phase
Motor Protection: Impedance Protected
Termination: Terminals or Lead wire
Weight: 630 g
Typical Applications
Industrial Equipment
Control Cabinets
Power Supplies
HVAC Systems

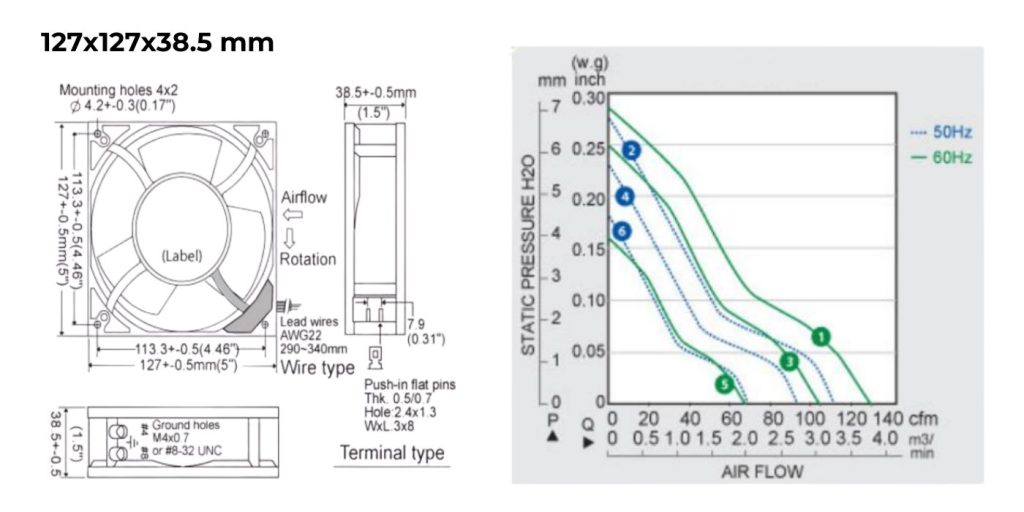

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYM11338HB | 115 | 50/60 | 29/26 | 2600/2950 | 110/128 | 6.86/7.37 | 48 |
| HYM21338HB | 230 | 50/60 | 29/26 | 2600/2950 | 110/128 | 6.86/7.37 | 48 |
