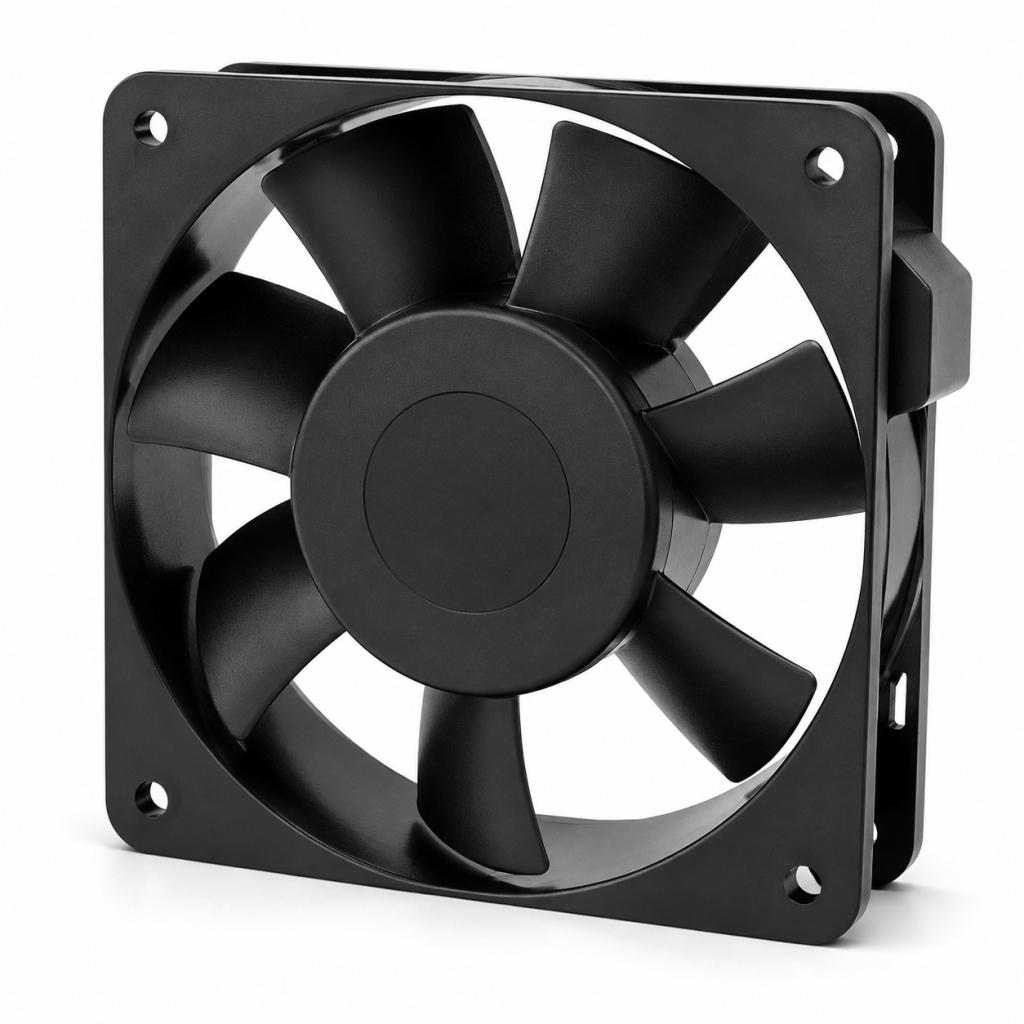

AC FANS

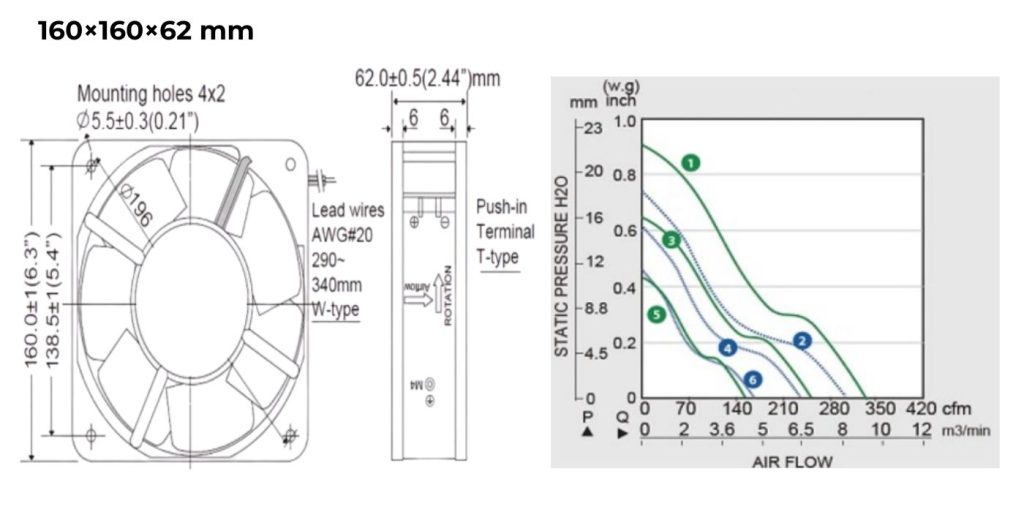

160×160×62 mm
(6.3x6.3x2.4 in)
PRODUCT SPECIFICATIONS
Frame: Die-cast Aluminum
Impeller: Plastic (UL 94V-0 P.B.T)
Ambient Temperature Range: -20℃ ~ +70℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Capacitor Induction Motor
Motor Protection: Thermally Protected
Termination: Terminals or Lead wire
Weight: 1,400 g
Typical Applications
Industrial Equipment
Control Cabinets
Power Supplies
HVAC Systems
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HY11662HB | 115 | 50/60 | 48/55 | 2700/3100 | 298/340 | 19.3/23.62 | 56 |
| HY21662HB | 230 | 50/60 | 48/55 | 2700/3100 | 298/340 | 19.3/23.62 | 56 |
