AC FANS
172x150x38 mm
(6.77x6x1.5 in)
PRODUCT SPECIFICATIONS
Frame: Die-cast Aluminum , Painted Black
Impeller: Steel Blades(Black)
Ambient Temperature Range: -20℃ ~ +70℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Certification: TÜV & UL Approved
Motor Structure: Capacitor Induction Motor
Motor Protection: Thermally Protected (Auto Restart)
Termination: Terminals or Lead wire
Weight: 820 g
Typical Applications
Industrial Equipment
Control Cabinets
Power Supplies
HVAC Systems

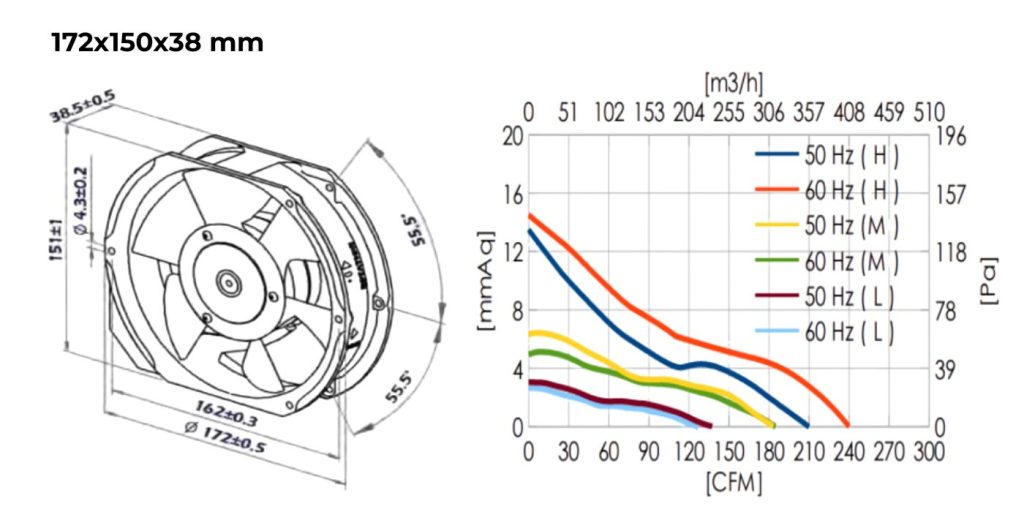

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
TÜV UL |
|---|---|---|---|---|---|---|---|---|---|
| HYM11738HB | 115 | 50/60 | 0.25/0.21 | 27/25 | 2700/3100 | 210/240 | 13.5/14.5 | 53/59 | V |
| HYM21738HB | 230 | 50/60 | 0.11/0.12 | 26/27 | 2700/3100 | 210/240 | 13.5/14.5 | 53/59 | V |
