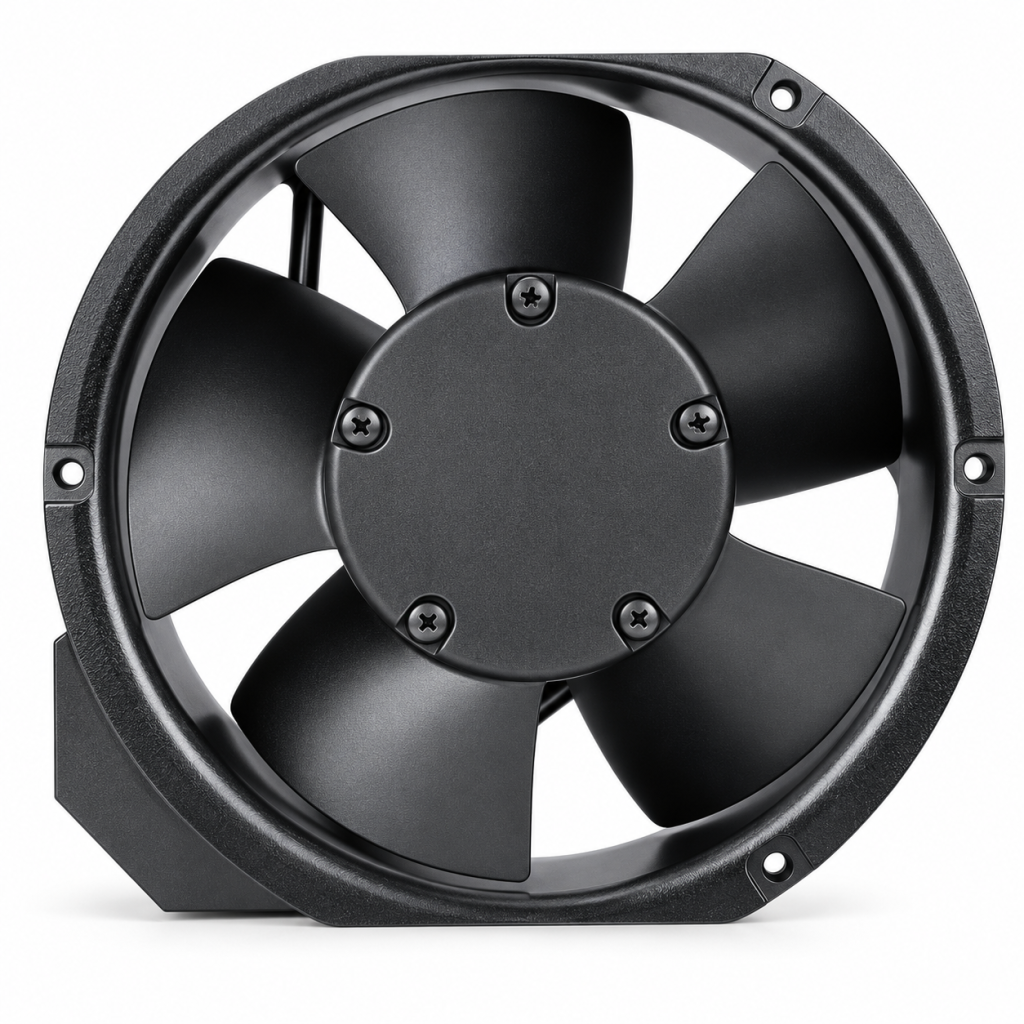

AC FANS

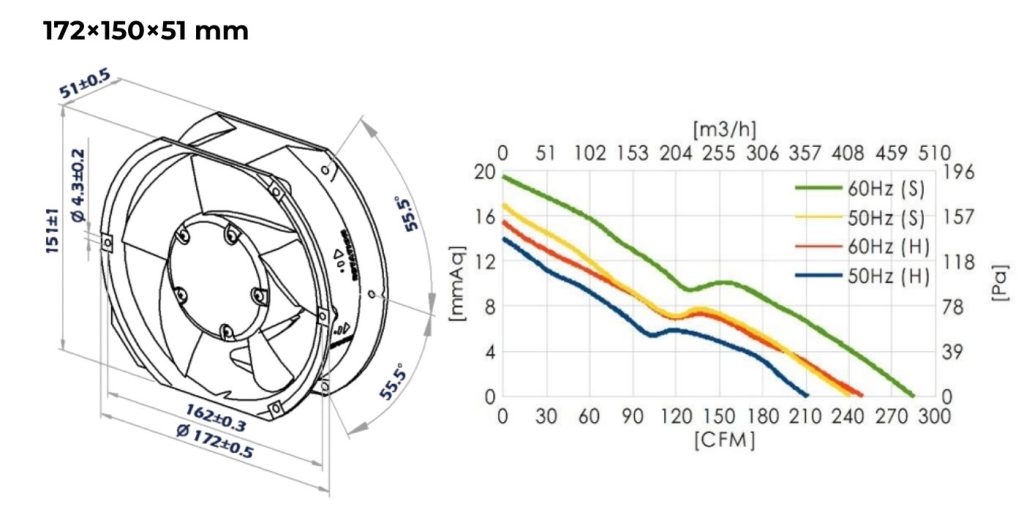

172×150×51 mm
(6.77x6x1.5 in)
PRODUCT SPECIFICATIONS
Frame: Die-cast Aluminum
Impeller: Plastic (UL 94V-0 P.B.T)
Ambient Temperature Range: -20℃ ~ +70℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Certification: TÜV & UL Approved
Motor Structure: Capacitor Induction Motor
Motor Protection: Thermally Protected (Auto Restart)
Termination: Terminals or Lead wire
Weight: 1,050 g
Typical Applications
Industrial Equipment
Control Cabinets
Power Supplies
HVAC Systems
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
TÜV UL |
|---|---|---|---|---|---|---|---|---|---|
| HY11751XB | 115 | 50/60 | 0.28/0.24 | 27/27 | 2800/3300 | 230/270 | 16.5/20 | 55/61 | V |
| HY21751XB | 230 | 50/60 | 0.11/0.12 | 24/27 | 2800/3300 | 230/270 | 16.5/20 | 55/61 | V |
| HY11751HB | 115 | 50/60 | 0.25/0.23 | 27/27 | 2650/3050 | 210/250 | 14/15.5 | 53/59 | V |
| HY21751HB | 230 | 50/60 | 0.11/0.11 | 26/26 | 2650/3050 | 210/250 | 14/15.5 | 53/59 | V |
