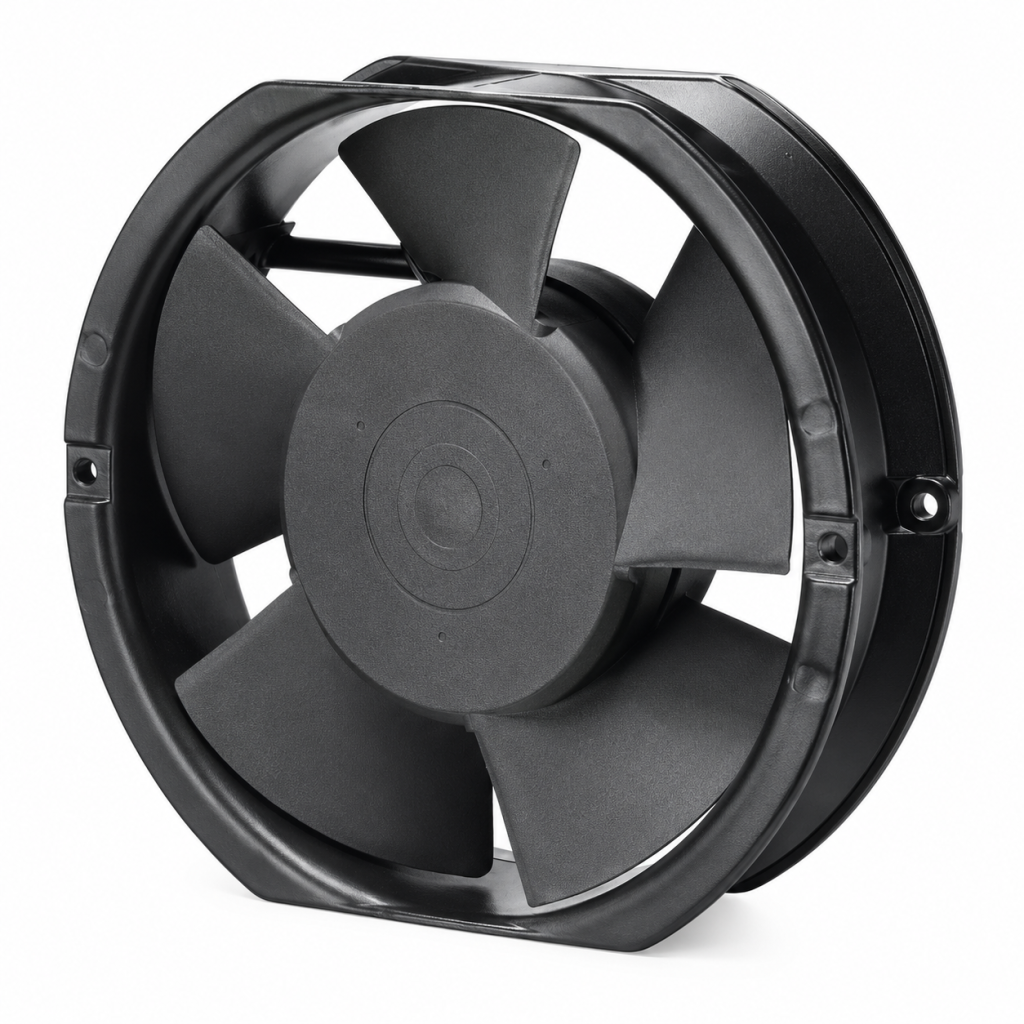

AC FANS
172x150x51N mm
(6.77x5.9x2 in)
PRODUCT SPECIFICATIONS
Frame: Die-cast Aluminum
Impeller: Plastic (UL 94V-0 P.B.T)
Ambient Temperature Range: -20℃ ~ +70℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Shaded Pole
Motor Protection: Impedance Protected
Termination: Terminals & Lead wire
Weight: 1,050 g
Typical Applications
Industrial Equipment
Control Cabinets
Power Supplies
HVAC Systems

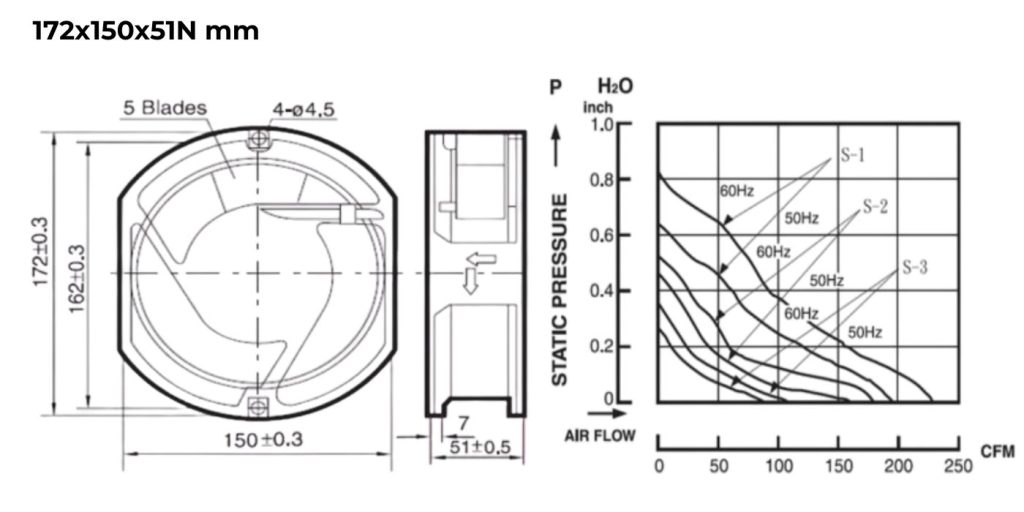

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HY11751HB-N | 115 | 50/60 | 0.5/0.45 | 38/35 | 2800/3100 | 190/235 | 16/20.06 | 50/45 |
| HY21751HB-N | 230 | 50/60 | 0.23/0.21 | 32/31 | 2800/3100 | 190/235 | 16/20.06 | 50/45 |
