AC FANS
176x176x89 mm
(7x7x3.5 in)
PRODUCT SPECIFICATIONS
Frame: Die-cast Aluminum , Painted Black
Impeller: Steel Blades
Ambient Temperature Range: -30℃ ~ +80℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Capacitor Induction Motor,
Single Phase
Motor Protection: Thermally Protected
Termination: Terminals or Lead wire
Weight: 1850 g
Typical Applications
Industrial Equipment
Control Cabinets
Power Supplies
HVAC Systems

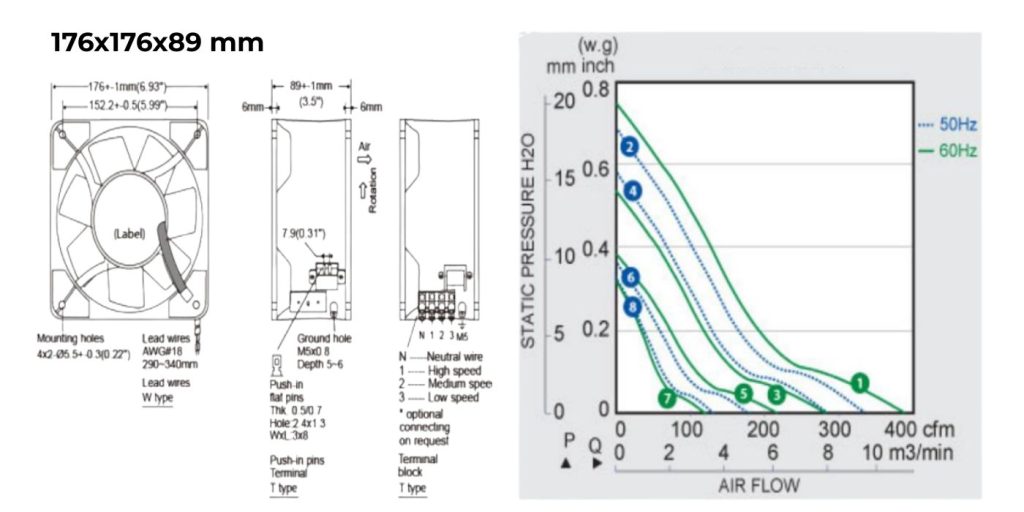

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYM11789HB | 115 | 50/60 | 60/80 | 2750/3250 | 330/380 | 17.53/19.3 | 63 |
| HYM21789HB | 230 | 50/60 | 60/80 | 2750/3250 | 330/380 | 17.53/19.3 | 63 |
