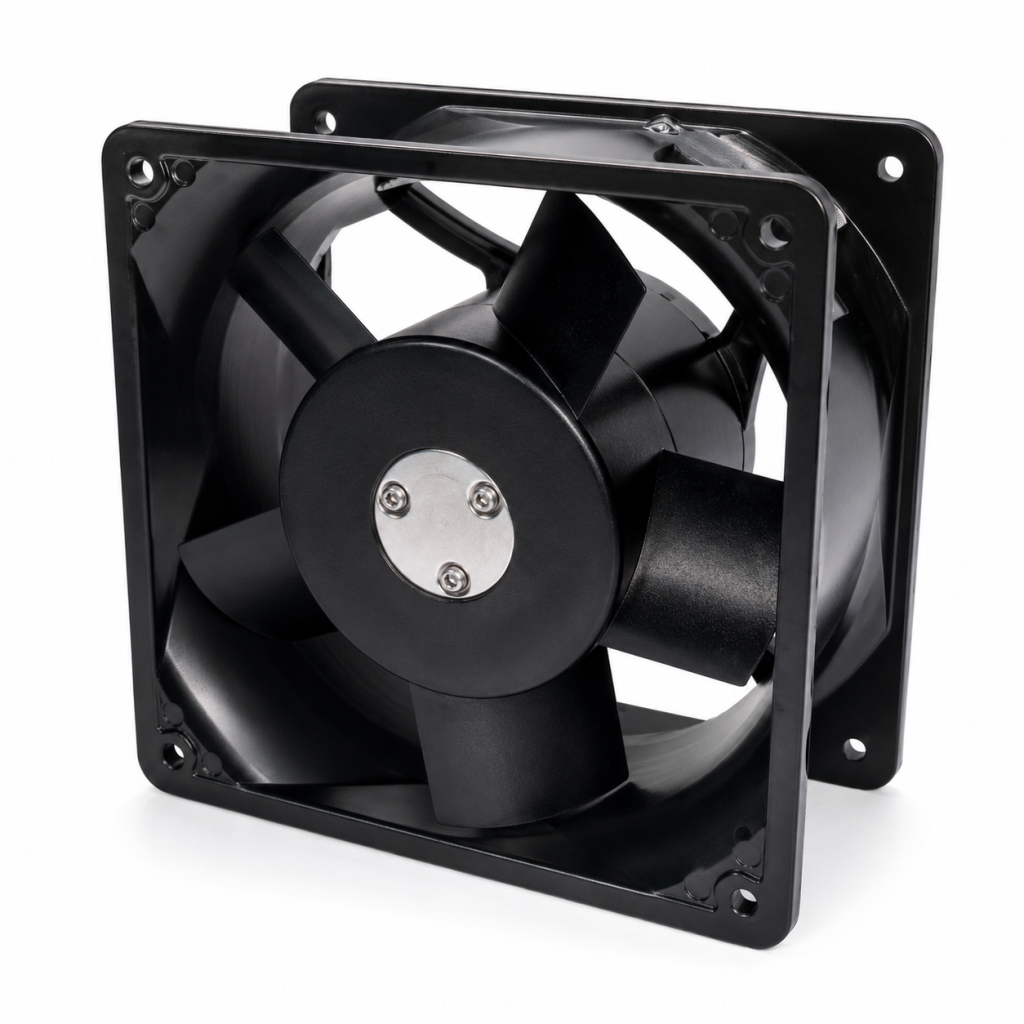

AC FANS
176x176x89 mm
(6.92x6.92x3.5 in)
PRODUCT SPECIFICATIONS
Frame: Die-cast Aluminum
Impeller: Plastic (UL 94V-0 P.B.T)
Ambient Temperature Range: -20℃ ~ +70℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Capacitor Induction Motor
Motor Protection: Thermally Protected (Auto Restart)
Termination: Terminals or Lead wire
Weight: 1,800 g
Typical Applications
Industrial Equipment
Control Cabinets
Power Supplies
HVAC Systems

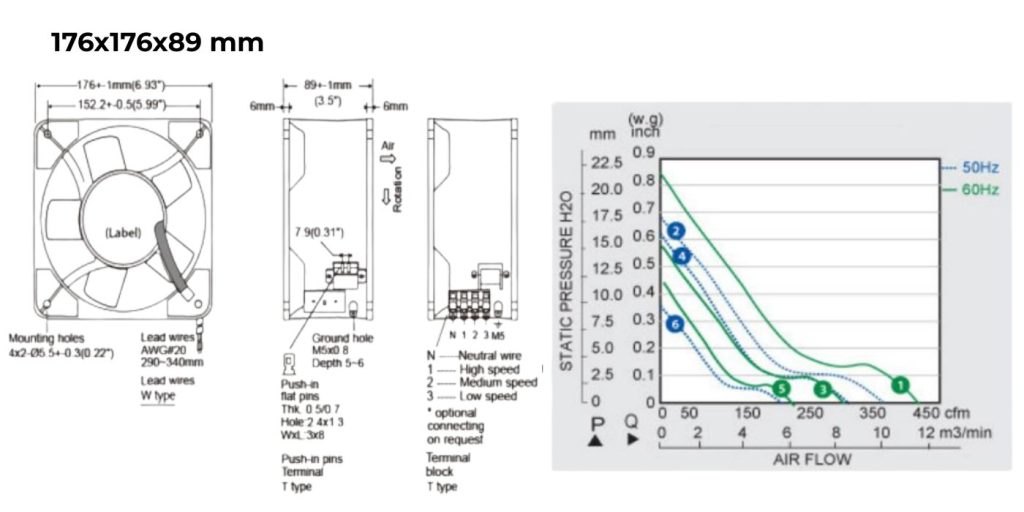

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HY11789HB | 115 | 50/60 | 60/70 | 2750/3200 | 360/410 | 17.27/21.59 | 62 |
| HY21789HB | 230 | 50/60 | 60/70 | 2750/3200 | 360/410 | 17.27/21.59 | 62 |
