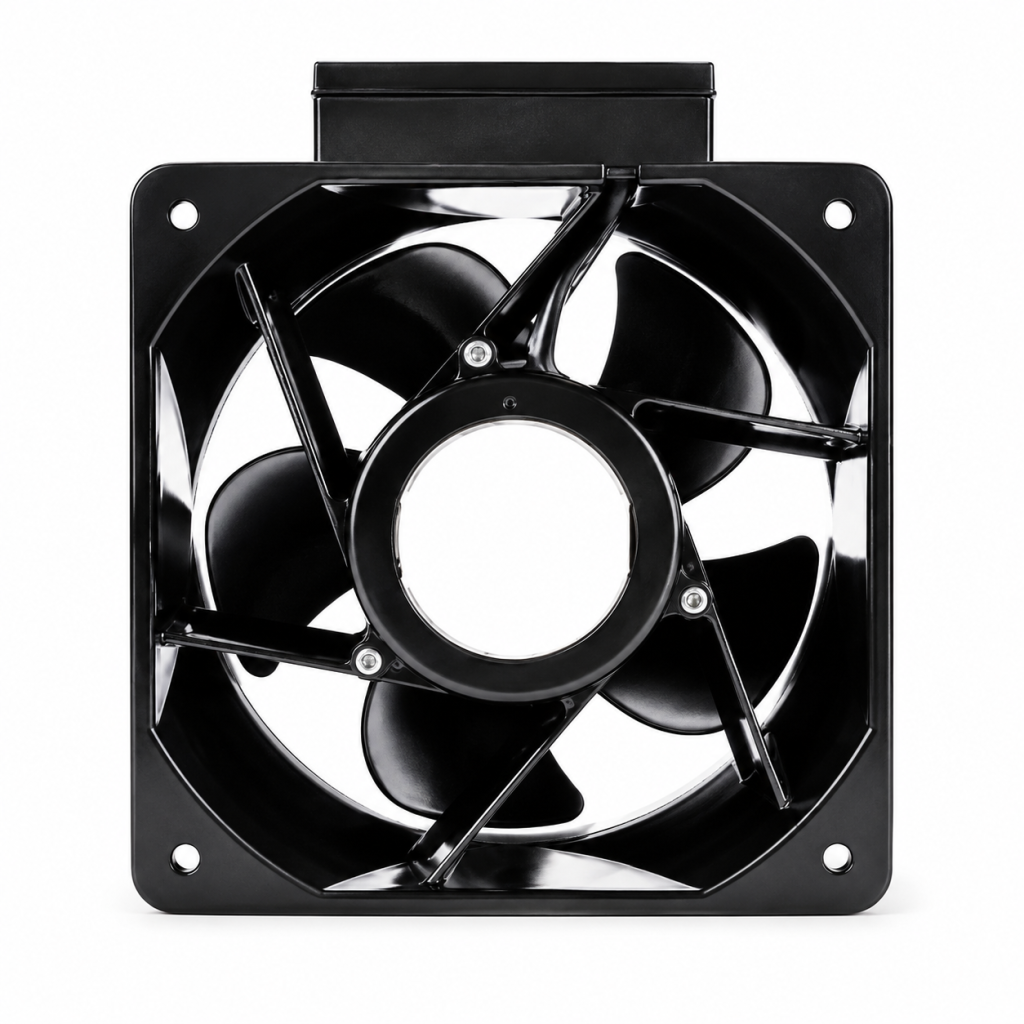

AC FANS
180x180x90 mm
(7.08x7.08x3.54 in)
PRODUCT SPECIFICATIONS
Frame: Die-cast Aluminum
Impeller: Plastic (UL 94V-0 P.B.T)
Ambient Temperature Range: -20℃ ~ +70℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball & Sleeve Bearing
Motor Structure: Capacitor Induction Motor
Motor Protection: Thermally or Impedance protected
Termination: Terminals or Lead wire
Weight: 2,200 g
Typical Applications
Industrial Equipment
Control Cabinets
Power Supplies
HVAC Systems

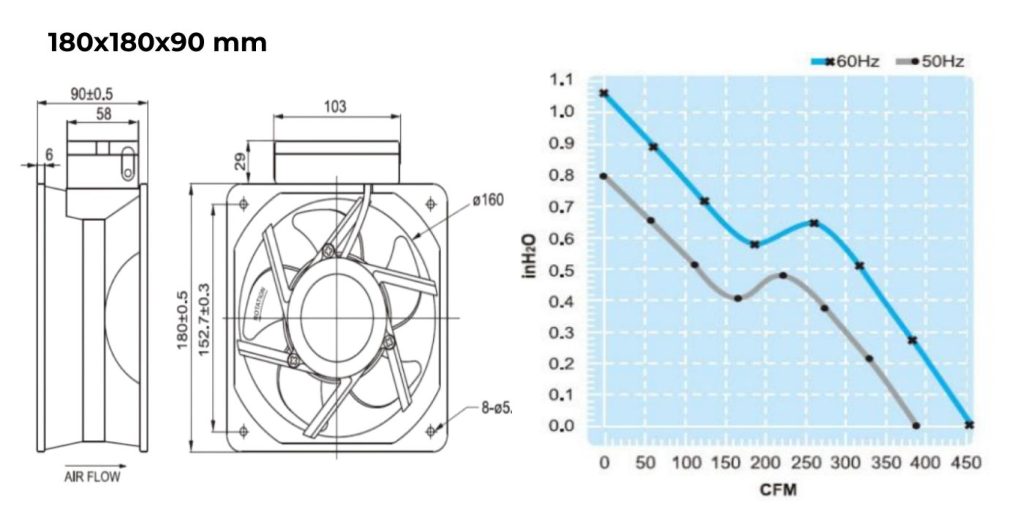

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HY11890HB | 115 | 50/60 | 0.88/0.63 | 78/72 | 2850/3400 | 390/460 | 20/27 | 54/59 |
| HY21890HB | 230 | 50/60 | 0.42/0.31 | 75/72 | 2850/3400 | 390/460 | 20/27 | 54/59 |
