AC FANS

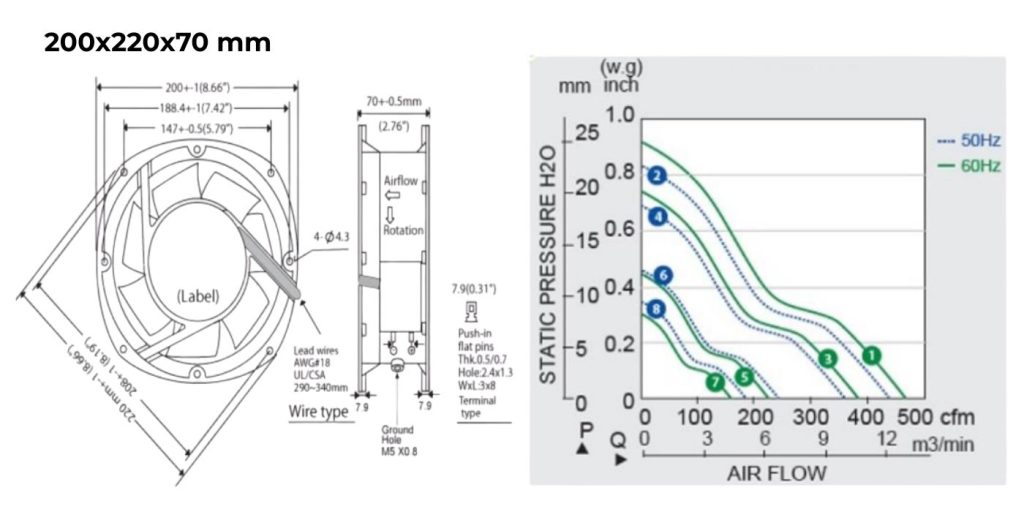

200x220x70 mm
(8x8.6x2.8in)
PRODUCT SPECIFICATIONS
Frame: Die-cast Aluminum , Painted Black
Impeller: Steel Blades
Ambient Temperature Range: -30℃ ~ +80℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Capacitor Induction Motor,
Single Phase
Motor Protection: Thermally Protected
Termination: Terminals or Lead wire
Weight: 2,100 g
Typical Applications
Industrial Equipment
Control Cabinets
Power Supplies
HVAC Systems
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYM12070HB | 115 | 50/60 | 95/105 | 2800/3300 | 430/485 | 20.83/23.62 | 68 |
| HYM22070HB | 230 | 50/60 | 95/105 | 2800/3300 | 430/485 | 20.83/23.62 | 68 |
