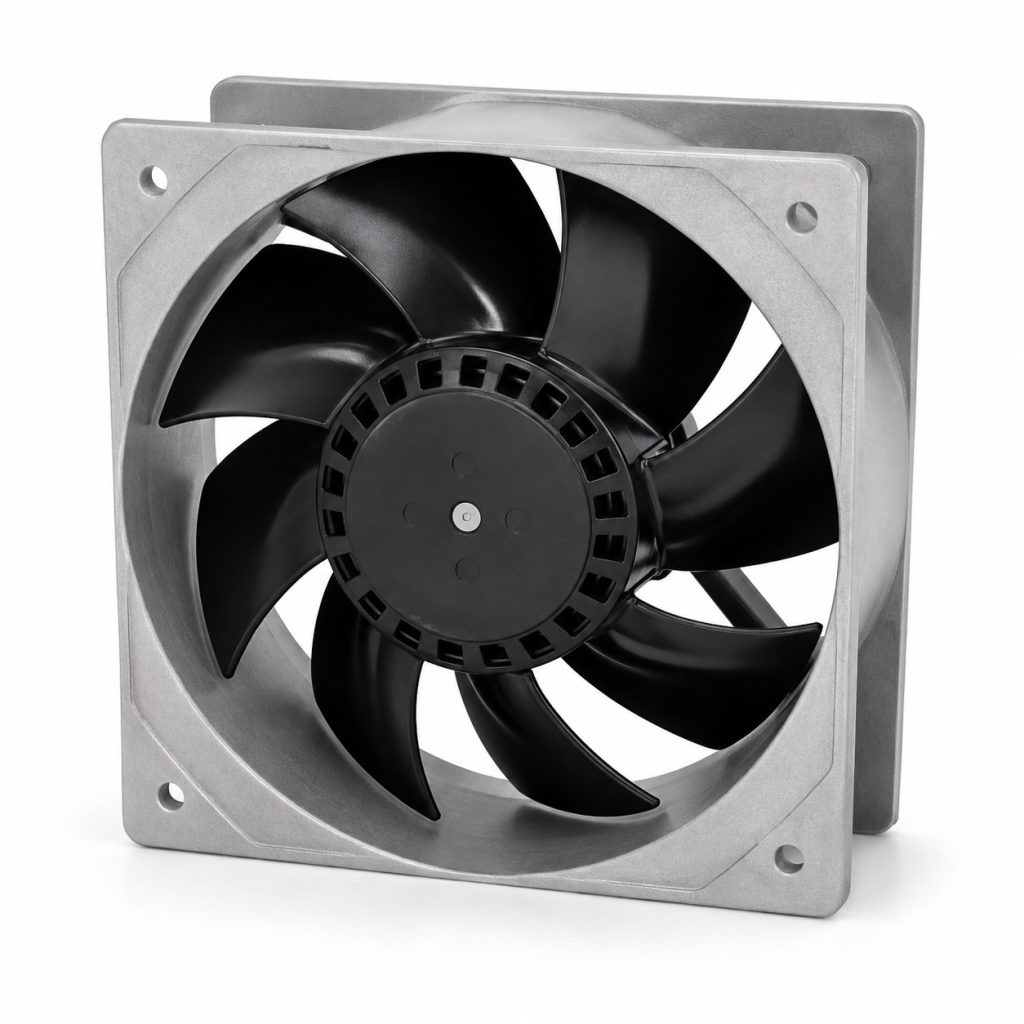

AC FANS
205x205x72 mm
(8x8.6x2.8in)
PRODUCT SPECIFICATIONS
Frame: Die-cast Aluminum, Natural Finish
Impeller: Steel Blades
Ambient Temperature Range: -30℃ ~ +80℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: External Rotor Motor, Capacitor Induction Motor
Motor Protection: Thermally Protected
Termination: Terminals or Lead wire
Weight: 2,350 g
Typical Applications
Industrial Equipment
Control Cabinets
Power Supplies
HVAC Systems

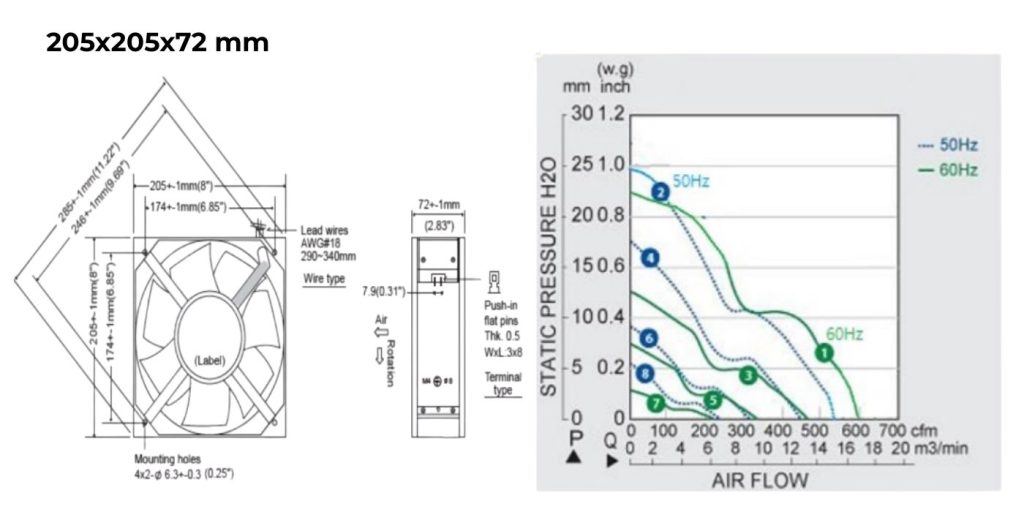

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYM12072HB | 115 | 50/60 | 60/80 | 2800/3000 | 520/590 | 23.11/21.84 | 67 |
| HYM22072HB | 230 | 50/60 | 60/80 | 2800/3000 | 520/590 | 23.11/21.84 | 67 |
