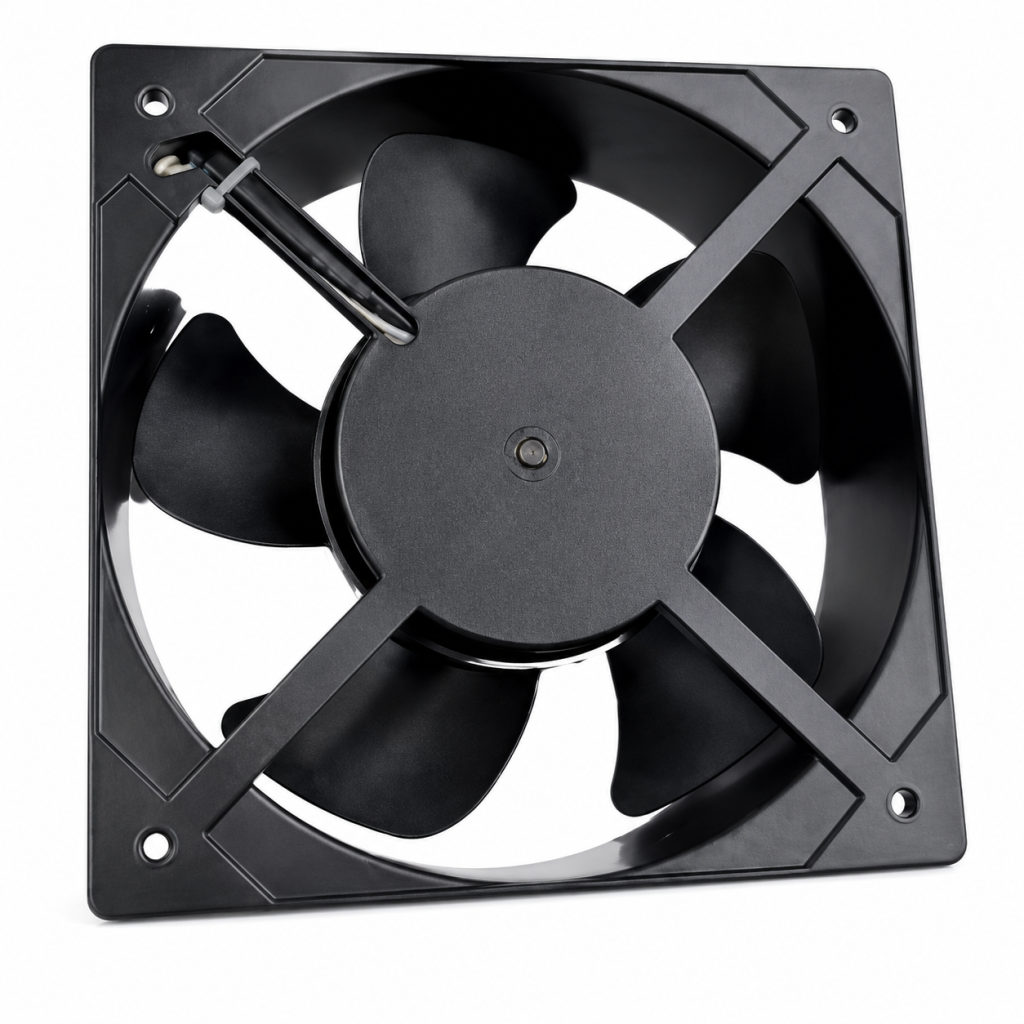

AC FANS
205x205x72 mm
(8x8x2.8 in)
PRODUCT SPECIFICATIONS
Frame: Die-cast Aluminum
Impeller: Plastic (UL 94V-0 P.B.T)
Ambient Temperature Range: -20℃ ~ +70℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Capacitor Induction Motor
Motor Protection: Thermally Protected
Termination: Terminals or Lead wire
Weight: 2,000 g
Typical Applications
Industrial Equipment
Control Cabinets
Power Supplies
HVAC Systems

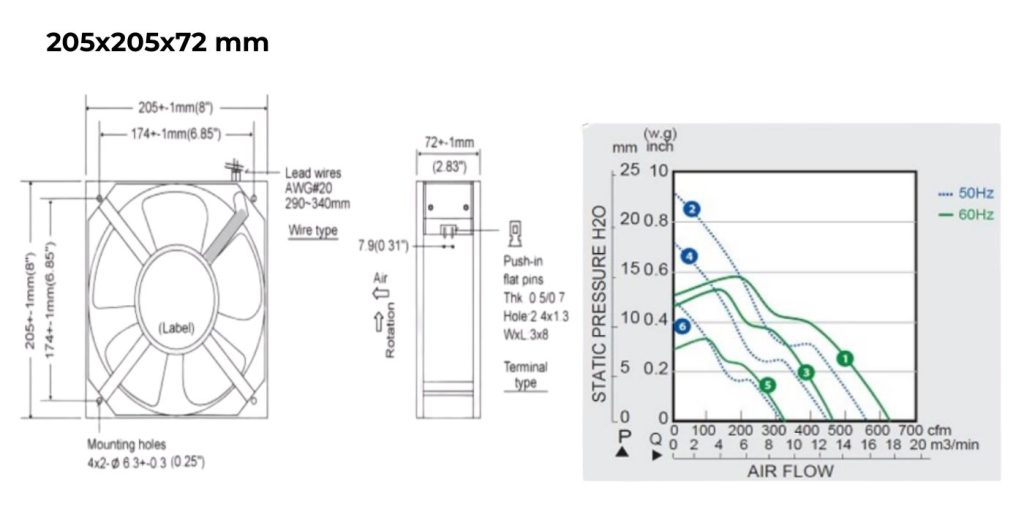

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HY12072HB | 115 | 50/60 | 60/75 | 2800/3150 | 587/660 | 23.11/17.78 | 69 |
| HY22072HB | 230 | 50/60 | 60/75 | 2800/3150 | 587/660 | 23.11/17.78 | 69 |
