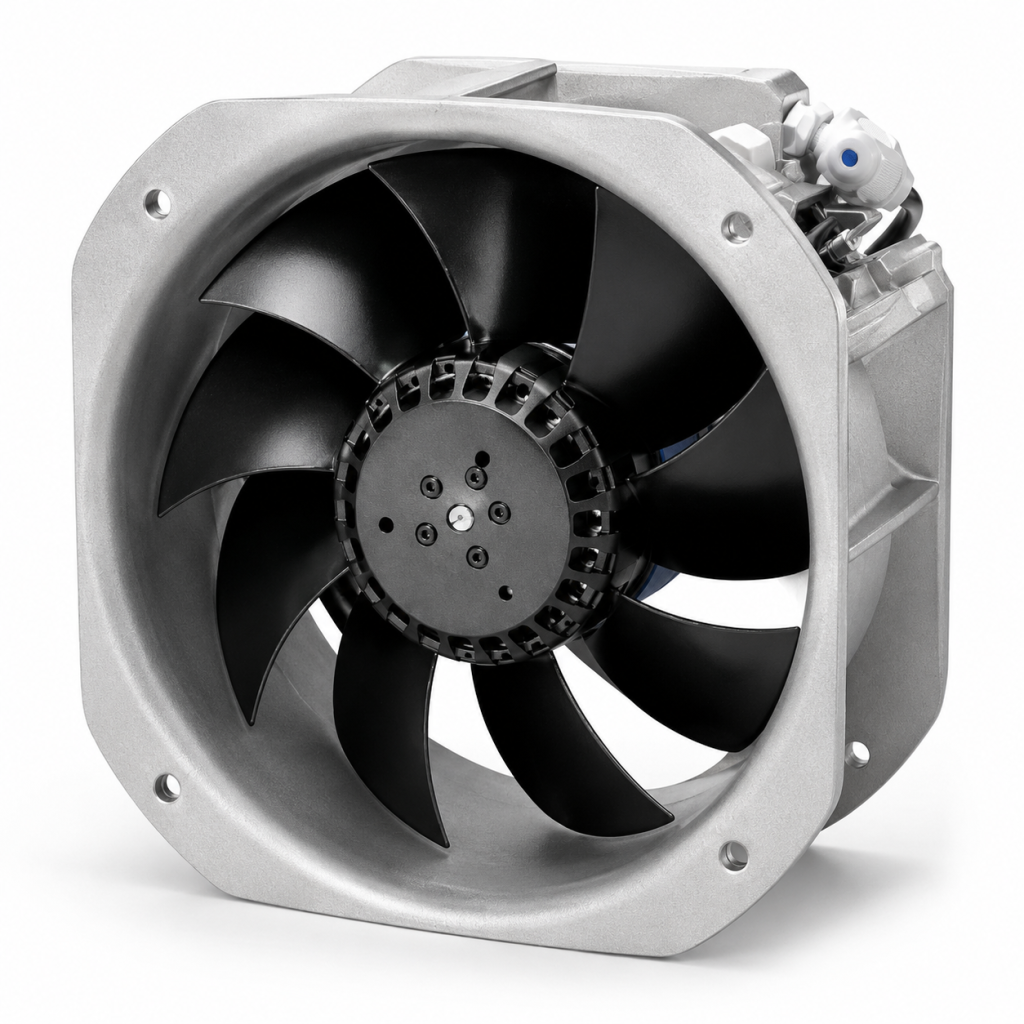

AC FANS
225x225x80 mm
(9x9x3.1 in)
PRODUCT SPECIFICATIONS
Frame: Die-cast Aluminum
Impeller: Steel Blades
Ambient Temperature Range: -30℃ ~ +80℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Double NSK Ball Bearings
Motor Structure: External Rotor Motor
Motor Protection: Thermally Protected
Termination: PA-10 Connector
Protection Grade: IP44
Weight: 2,200 g
Typical Applications
Industrial Equipment
Control Cabinets
Power Supplies
HVAC Systems

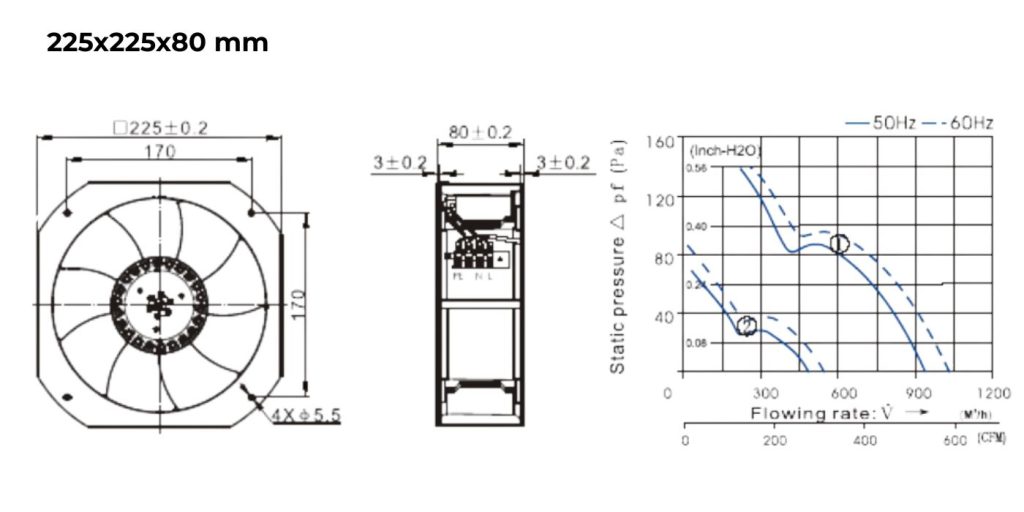

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYM12280HBT | 115 | 50/60 | 0.6/0.64 | 65/75 | 2550/2750 | 546/596 | 10.19/12.23 | 59/61 |
| HYM22280HBT | 230 | 50/60 | 0.3/0.34 | 65/77 | 2550/2750 | 546/596 | 10.19/12.23 | 59/61 |
| HYM22280MBT | 230 | 50/60 | 0.13/0.12 | 27/27 | 1350/1600 | 254/313 | 5.09/5.09 | 40/44 |
