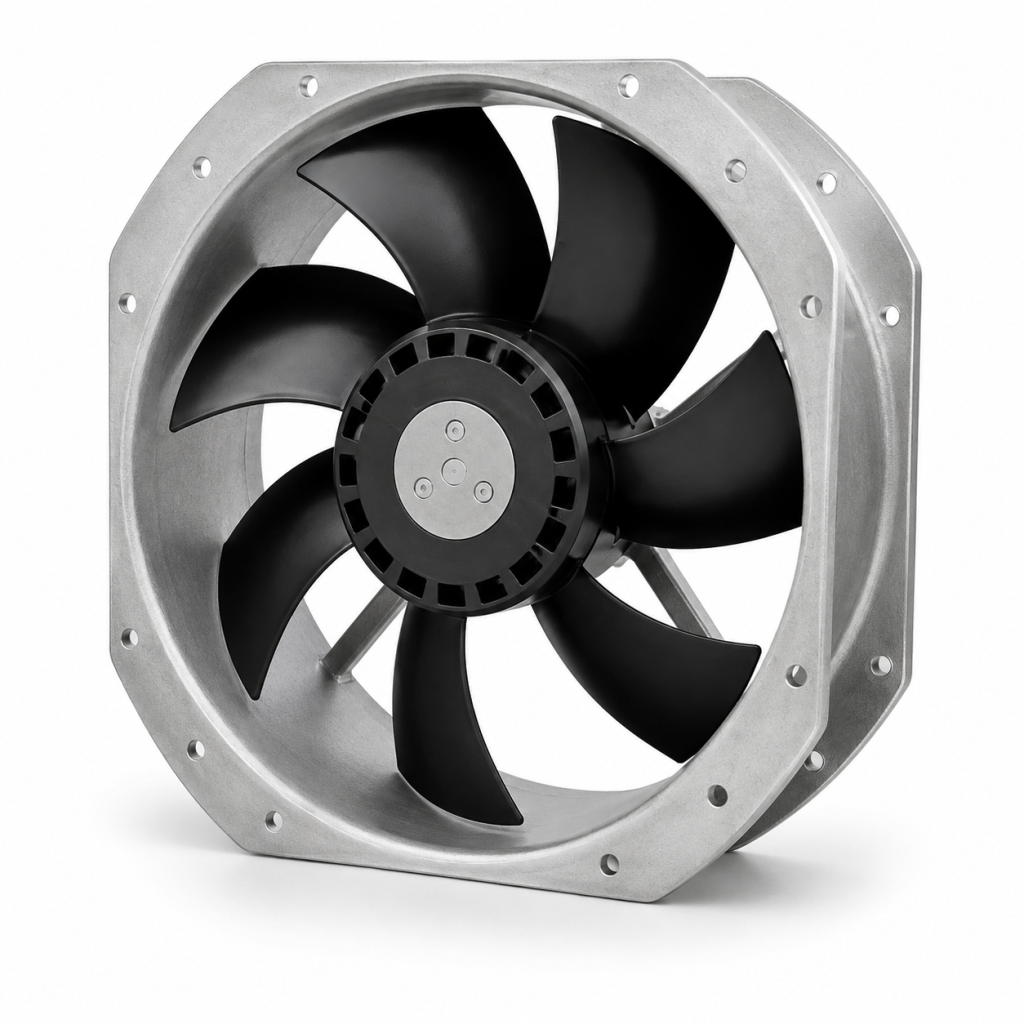

AC FANS
280x280x89 mm
(11x11x3.5 in)
PRODUCT SPECIFICATIONS
Frame: Die-cast Aluminum
Impeller: Steel Blades (7 Blades)
Ambient Temperature Range: -30℃ ~ +80℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearings
Motor Structure: Capacitor Induction Motor
Single Phase
Motor Protection: Thermally Protected
Termination: Terminals or Lead wire
Weight: 3400 g
Typical Applications
Industrial Equipment
Control Cabinets
Power Supplies
HVAC Systems

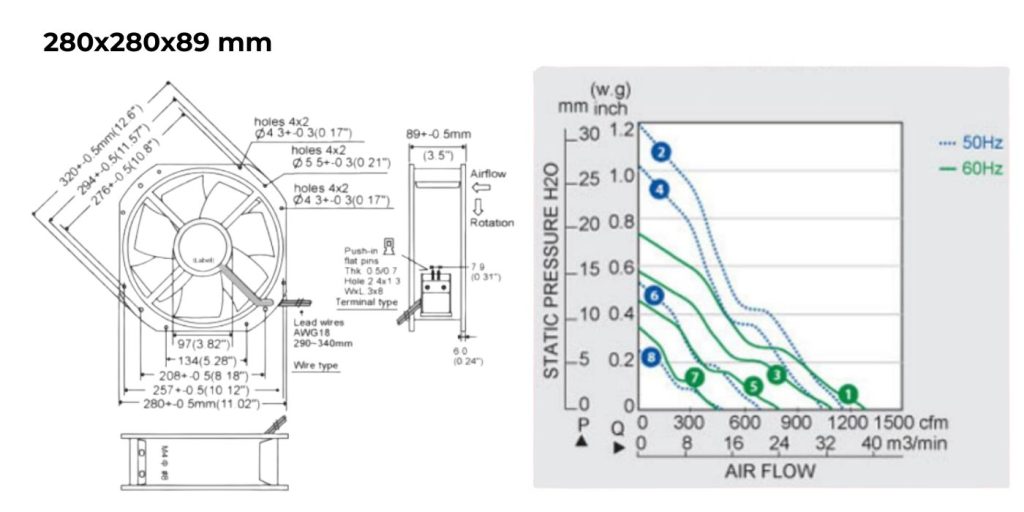

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYM12890HB | 115 | 50/60 | 155/210 | 2800/3200 | 1150/1300 | 30.48/19.05 | 73 |
| HYM22890HB | 230 | 50/60 | 155/210 | 2800/3200 | 1150/1300 | 30.48/19.05 | 73 |
