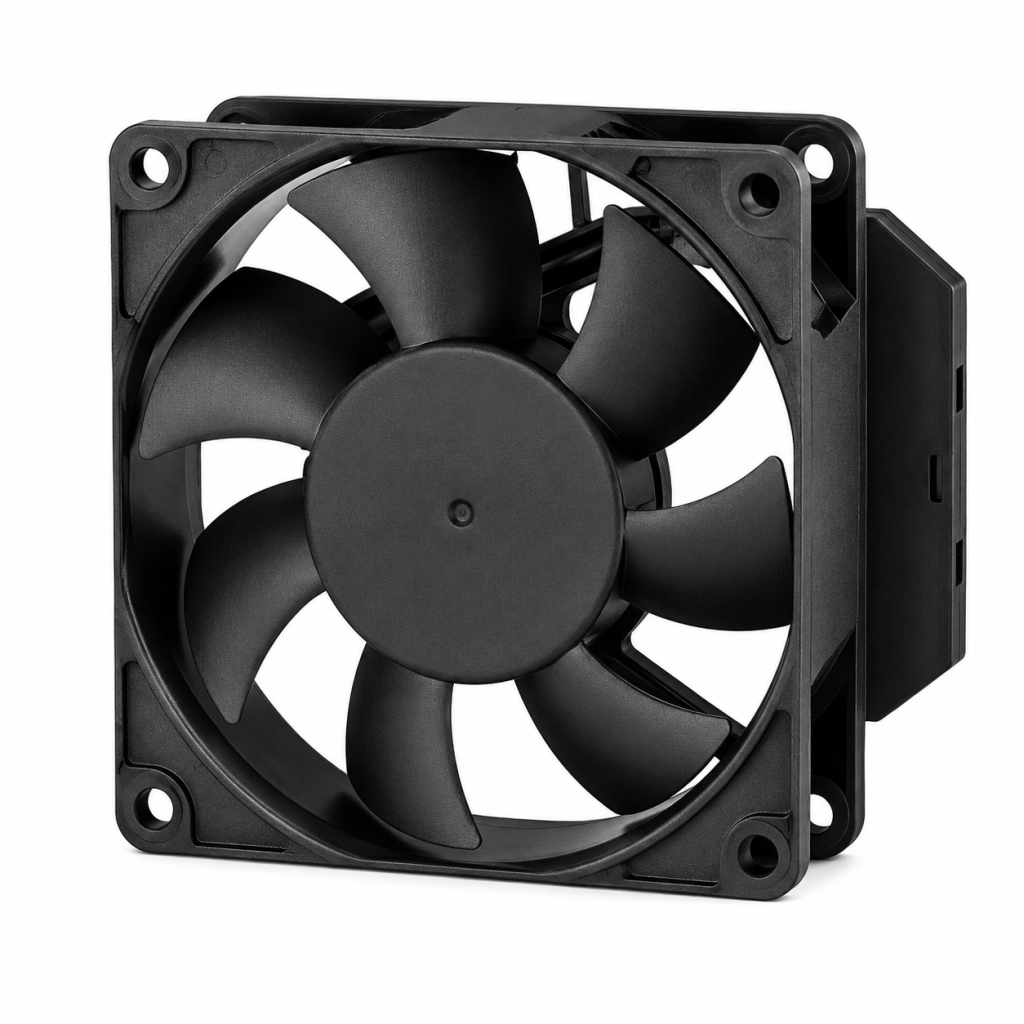

AC FANS

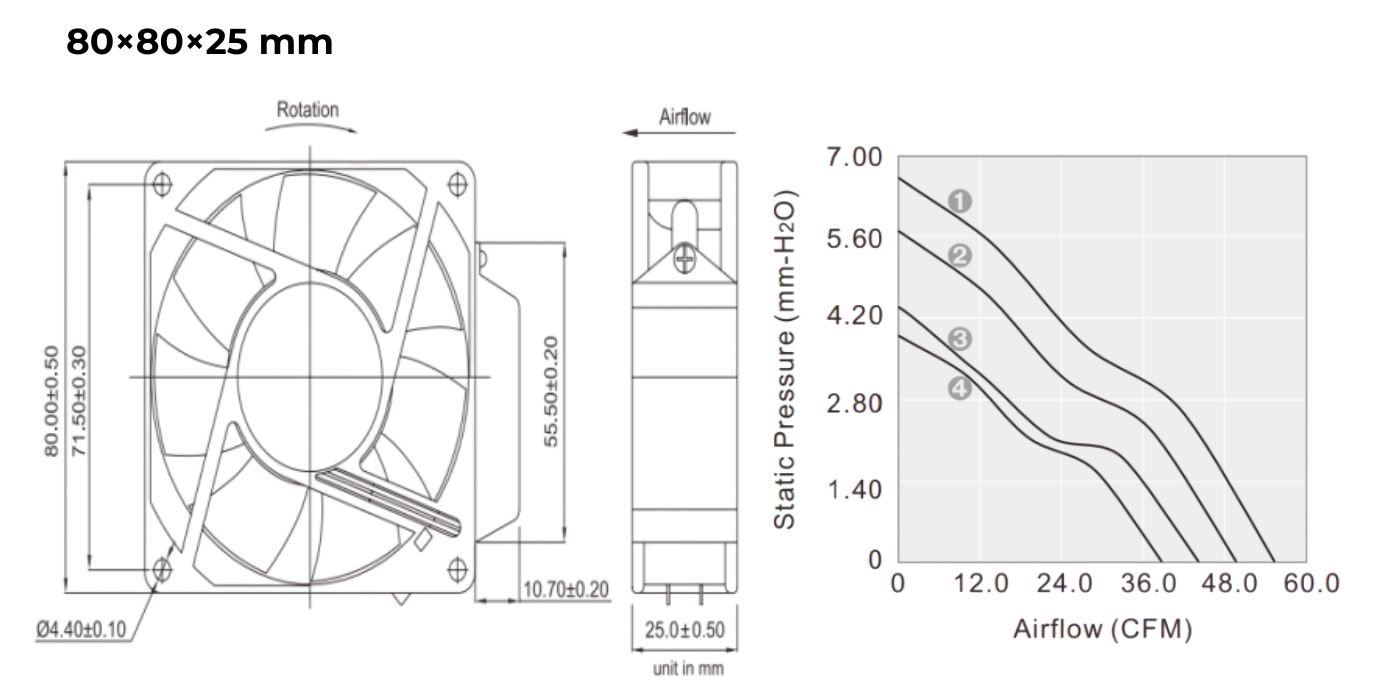

80×80×25 mm
(3.14×3.14×0.98 in)
PRODUCT SPECIFICATIONS
Frame: Die-cast Aluminum
Impeller: Plastic (UL 94V-0 P.B.T)
Ambient Temperature Range: -20℃ ~ +70℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball & Sleeve Bearing
Motor Structure: DC Motor
Motor protection: Impedance Protected
Termination: Terminals or Lead wire
Weight: 138 g
Typical Applications
Industrial Equipment
Control Cabinets
Power Supplies
HVAC Systems
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mmAq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HY18025HB | 115 | 50/60 | 0.16/0.19 | 3.4/4.3 | 3600/4000 | 49.6/55.1 | 5.7/6.6 | 42/45.5 |
| HY28025HB | 230 | 50/60 | 0.15/0.18 | 4.3/5.3 | 3600/4000 | 49.6/55.1 | 5.7/6.6 | 42/45.5 |
