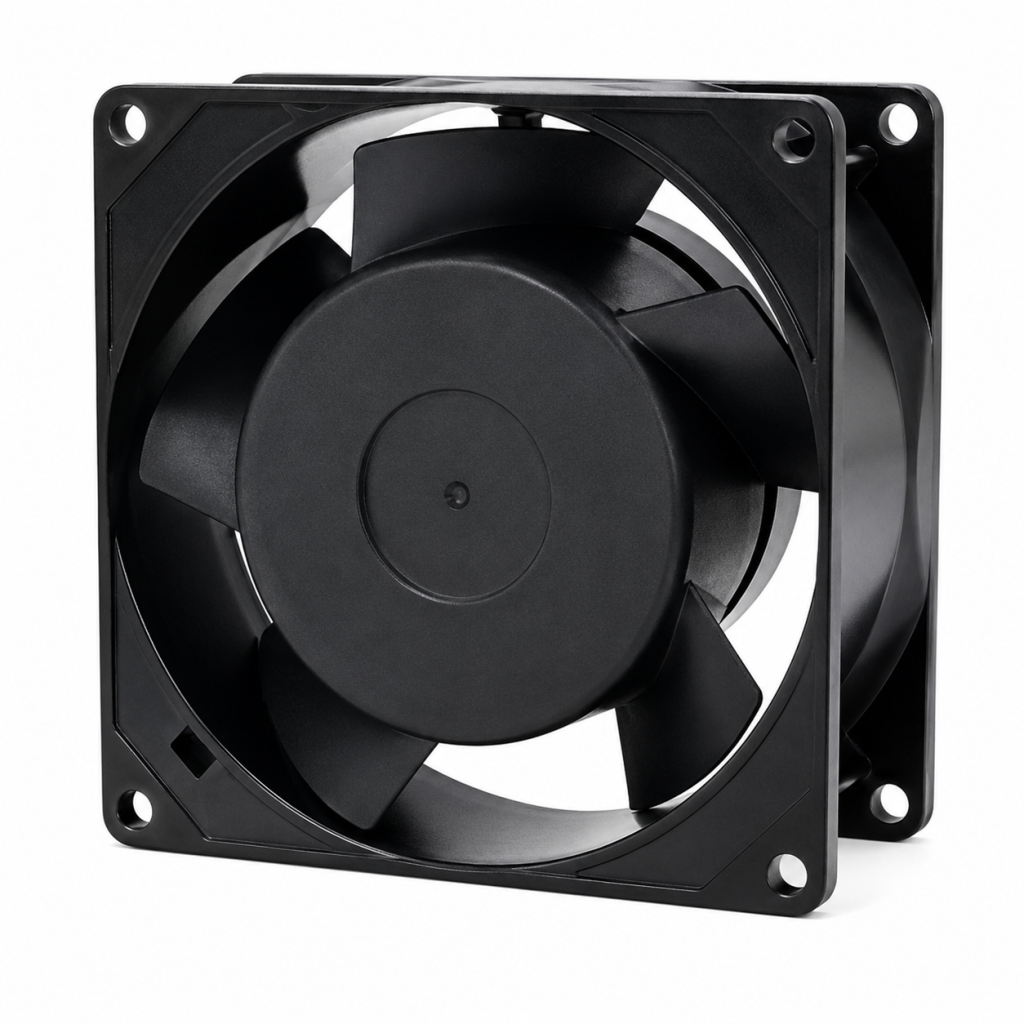

AC FANS

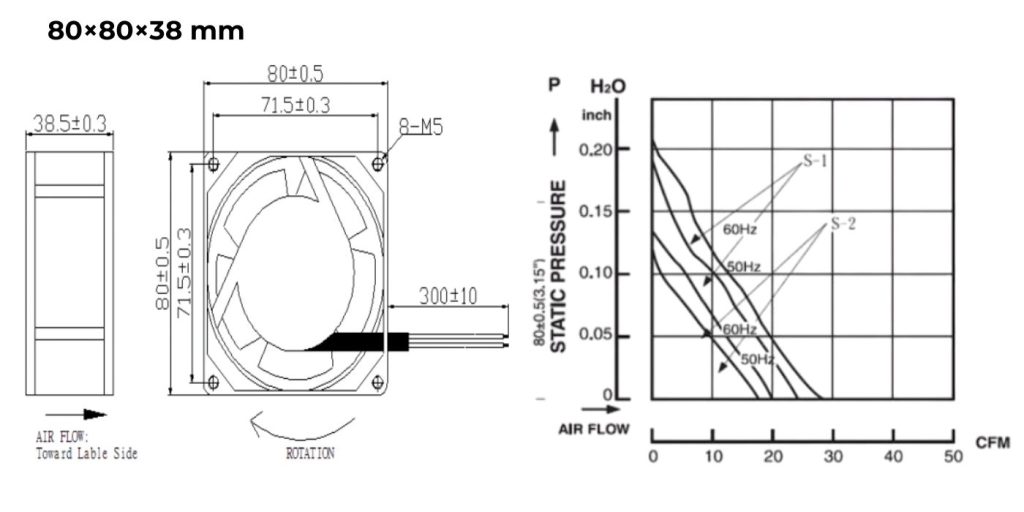

80×80×38 mm
(3.14x3.14x1.49 in)
PRODUCT SPECIFICATIONS
Frame: Die-cast Aluminum
Impeller: Plastic (UL 94V-0 P.B.T)
Ambient Temperature Range:
Ball:-20℃ ~ +70℃, Sleeve: -10℃ ~ +70℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball & Sleeve Bearing
Motor Structure: Shaded Pole
Motor protection: Impedance Protected
Termination: Terminals or Lead wire
Weight: 320 g
Typical Applications
Industrial Equipment
Control Cabinets
Power Supplies
HVAC Systems
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HY18038HB | 115 | 50/60 | 0.14/0.12 | 13/12 | 2300/2700 | 26/30 | 4.31/6.09 | 30/35 |
| HY28038HB | 230 | 50/60 | 0.1/0.08 | 13/12 | 2300/2700 | 26/30 | 4.31/6.09 | 30/35 |
