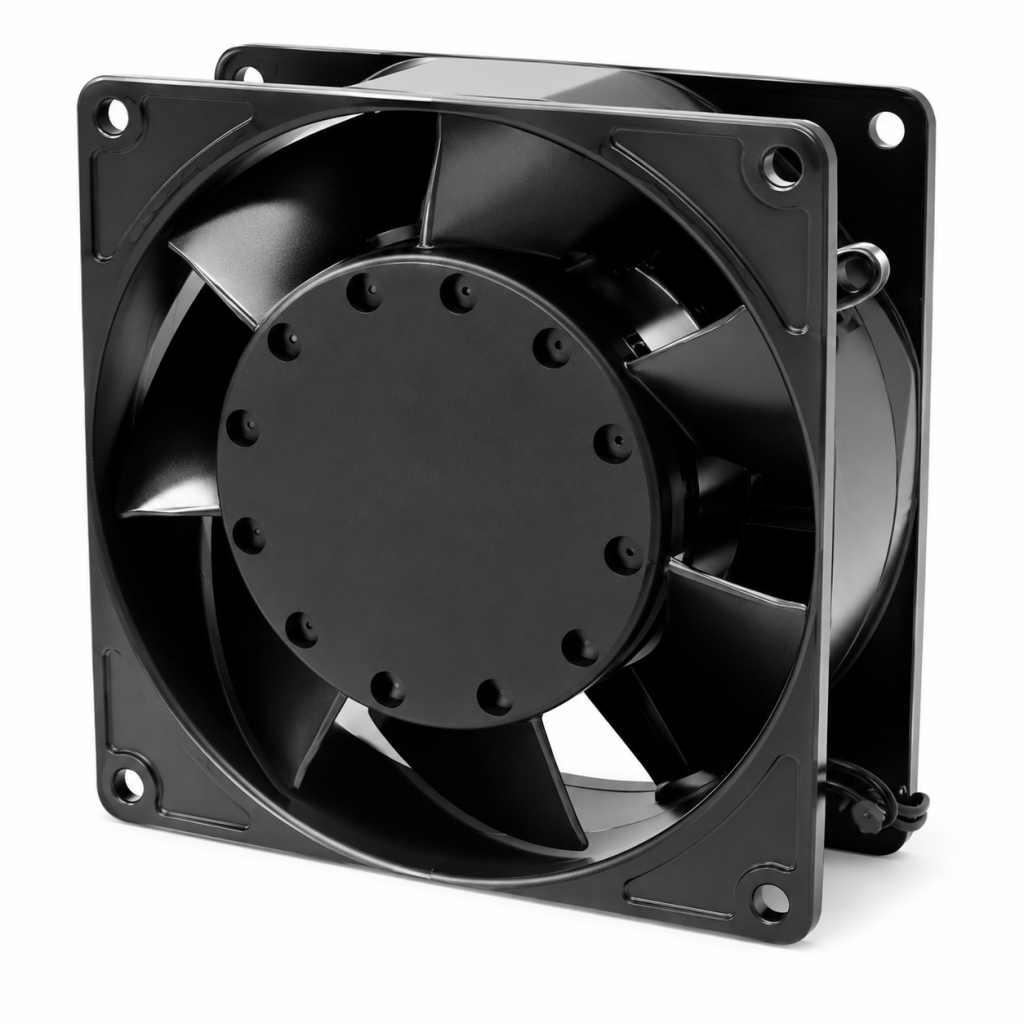

AC FANS

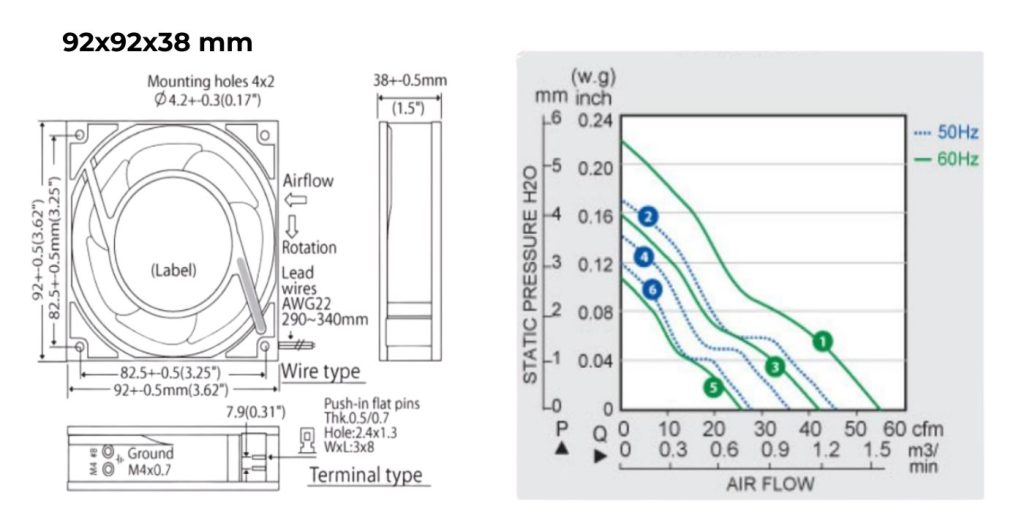

92x92x38 mm
(3.6x3.6x1.5 in)
PRODUCT SPECIFICATIONS
Frame: Die-cast Aluminum
Impeller: Steel Blades
Ambient Temperature Range: -30℃ ~ +80℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Shaded Pole, Outer Rotor, Single Phase
Motor Protection: Impedance Protected
Termination: Terminals or Lead Wire
Weight: 480 g
Typical Applications
Industrial Equipment
Control Cabinets
Power Supplies
HVAC Systems
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYM19238HB | 115 | 50/60 | 17/15 | 2800/3300 | 47/55 | 4.32/5.59 | 40 |
| HYM29238HB | 230 | 50/60 | 17/15 | 2800/3300 | 47/55 | 4.32/5.59 | 40 |
