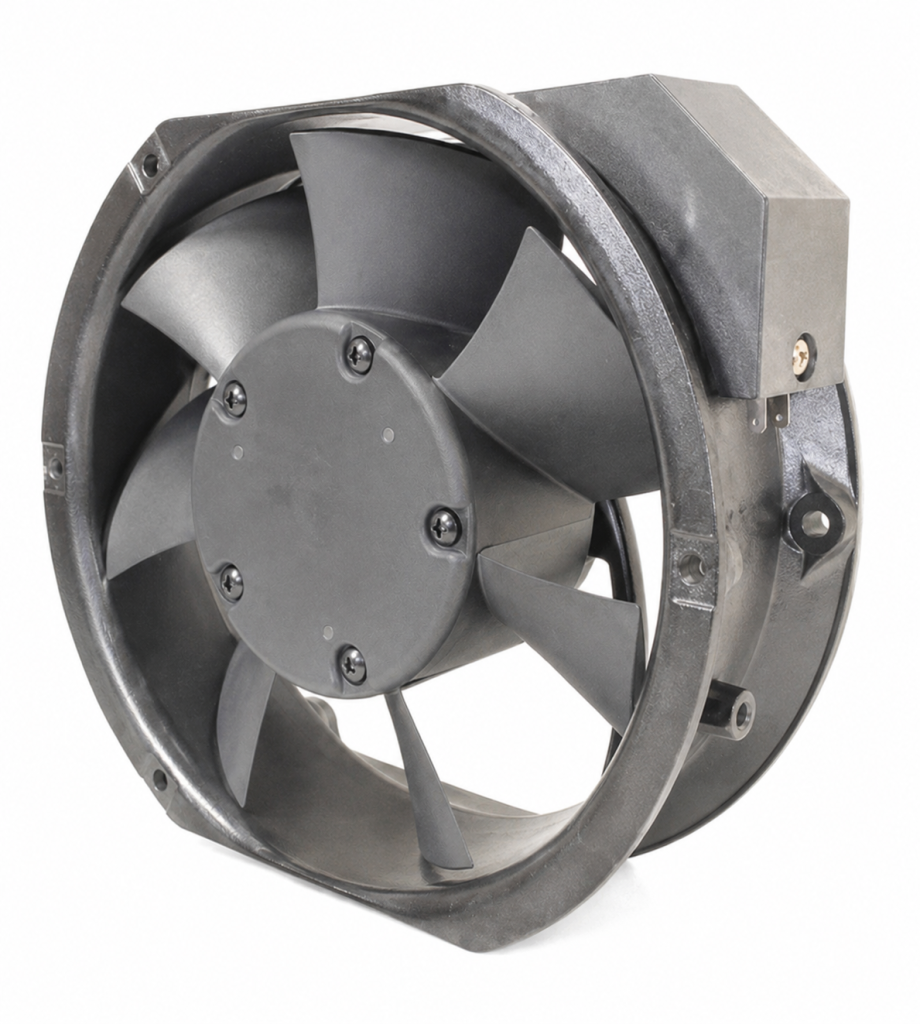

AC FANS
EH 172×150×51 mm
(6.77x6x2 in)
PRODUCT SPECIFICATIONS
Frame: Die-cast Aluminum
Impeller: Plastic (UL 94V-0 P.B.T)
Ambient Temperature Range: -20℃ ~ +70℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Certification: TÜV & UL Approved
Motor Structure: Capacitor Induction Motor
Motor Protection: Thermally Protected (Auto Restart)
Termination: Terminals or Lead wire
Weight: 1,040 g
Typical Applications
Industrial Equipment
Control Cabinets
Power Supplies
HVAC Systems

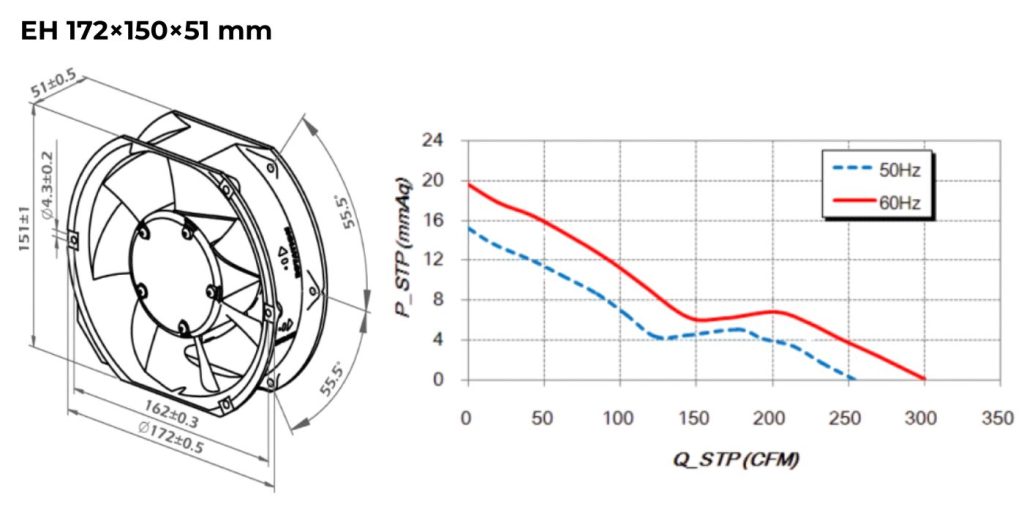

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HY11751UB | 115 | 50/60 | 0.41/0.35 | 41/40 | 2800/3200 | 255/300 | 15.2/19.6 | 55/61 |
| HY21751UB | 230 | 50/60 | 0.19/0.17 | 39/40 | 2800/3200 | 255/300 | 15.2/19.6 | 55/61 |
