AC FANS
ø172x51 mm
(ø6.77x2 in)
PRODUCT SPECIFICATIONS
Frame: Die-cast Aluminum
Impeller: Steel Blades
Ambient Temperature Range: -20℃ ~ +70℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Certification: TÜV & UL Approved
Motor Structure: Capacitor Induction Motor
Motor Protection: Thermally Protected
Termination: Terminals or Lead wire
Weight: 1,080 g
Typical Applications
Industrial Equipment
Control Cabinets
Power Supplies
HVAC Systems

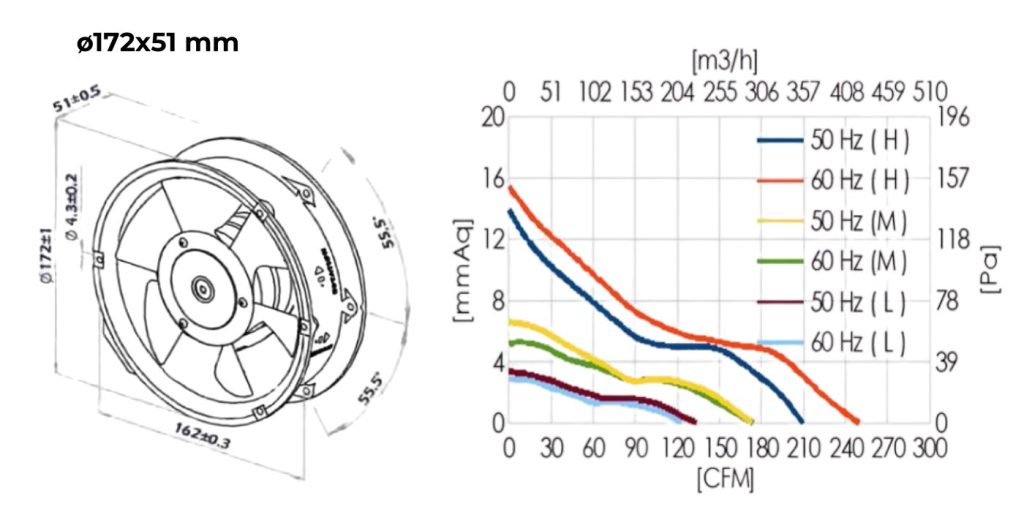

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
TÜV UL |
|---|---|---|---|---|---|---|---|---|---|
| HYM11751XBø | 115 | 50/60 | 0.27/0.23 | 26/26 | 2800/3300 | 230/270 | 16.5/20 | 55/61 | V |
| HYM21751XBø | 230 | 50/60 | 0.1/0.11 | 23/26 | 2800/3300 | 230/270 | 16.5/20 | 55/61 | V |
| HYM11751HBø | 115 | 50/60 | 0.25/0.21 | 27/25 | 2700/3100 | 210/250 | 14/15.5 | 53/59 | |
| HYM21751HBø | 230 | 50/60 | 0.11/0.12 | 26/27 | 2700/3100 | 210/250 | 14/15.5 | 53/59 |
