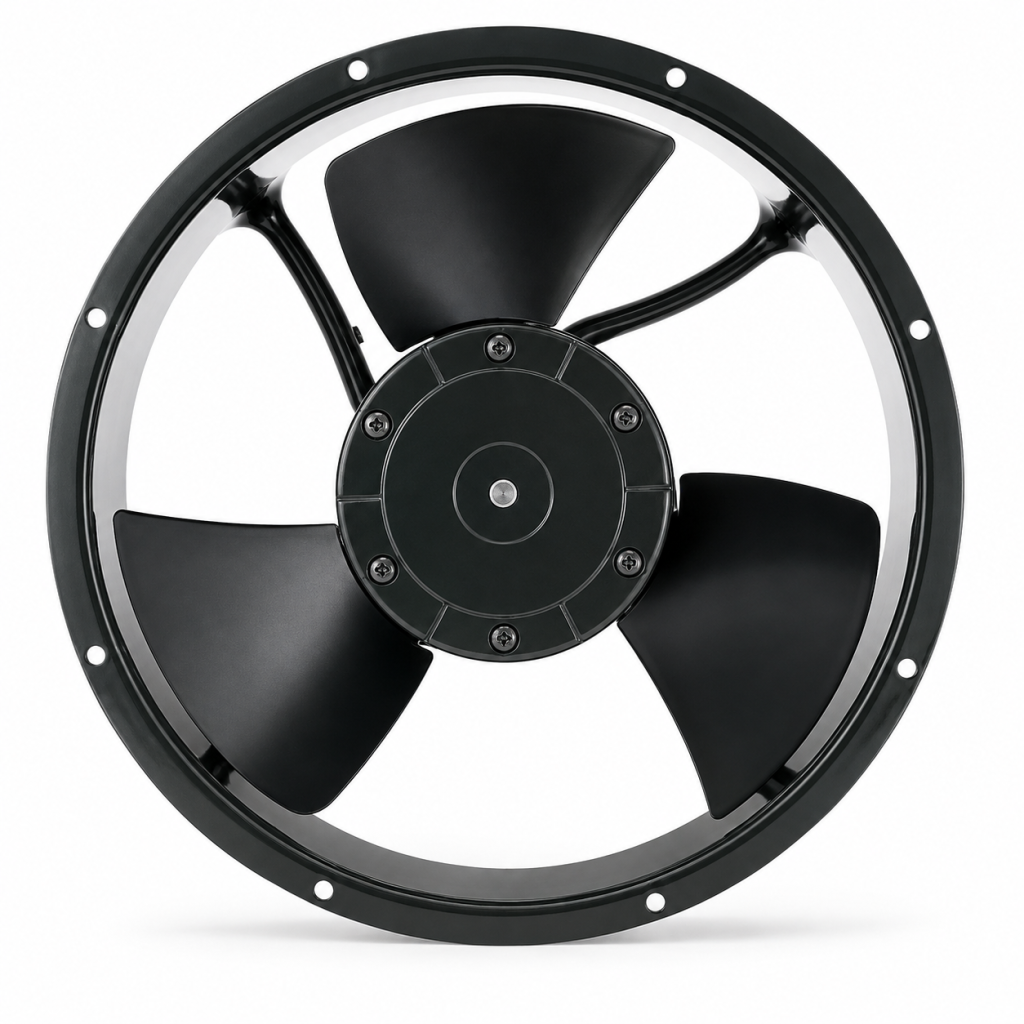

AC FANS
ø254x89 mm
(ø10x3.5 in)
PRODUCT SPECIFICATIONS
Frame: Die-cast Aluminum
Impeller: Steel Blades
Ambient Temperature Range: -30℃ ~ +85℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearings
Motor Structure: Capacitor Induction Motor
Motor Protection: Thermally Protected(Auto Restart)
Termination: Terminals or Lead wire
Weight: 2750 g
Typical Applications
Industrial Equipment
Control Cabinets
Power Supplies
HVAC Systems

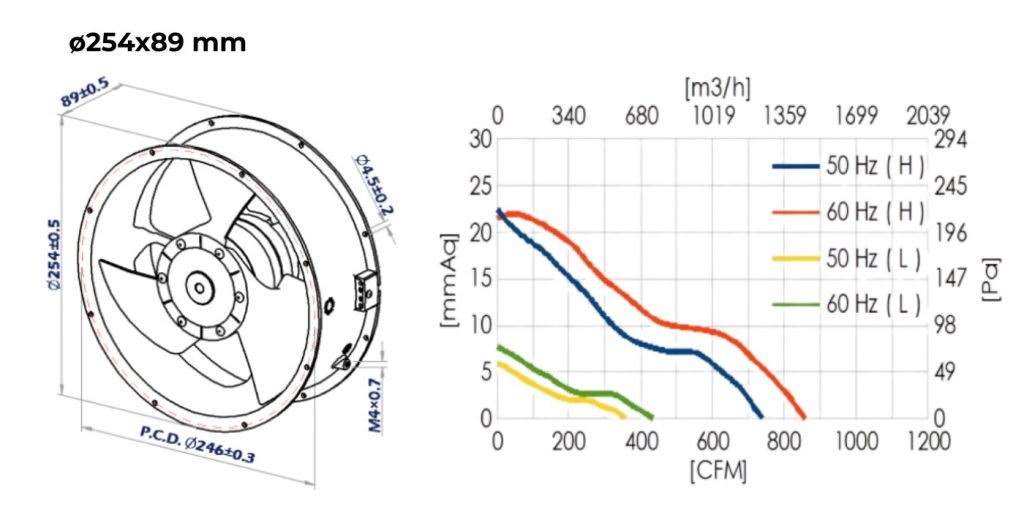

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
TÜV UL |
|---|---|---|---|---|---|---|---|---|---|
| HYM12589HB | 115 | 50/60 | 0.59/0.86 | 66/95 | 2800/3200 | 740/860 | 22.5/21.5 | 66/68 | V |
| HYM22589HB | 230 | 50/60 | 0.28/0.43 | 66/95 | 2800/3200 | 740/860 | 22.5/21.5 | 66/68 | V |
| HYM22589HB(3ø) | 230 | 50/60 | 0.237/0.258 | 57/80 | 2750/3100 | 730/850 | 21/20 | 66/68 | |
| HYM32589HB(3ø) | 380 | 50/60 | 0.225/0.2 | 68/89 | 2800/3250 | 750/860 | 21/20 | 66/68 | |
| HYM42589SB(3ø) | 440 | 50/60 | 0.187/0.172 | 67/86 | 2800/3250 | 750/870 | 22.5/22 | 66/68 |
