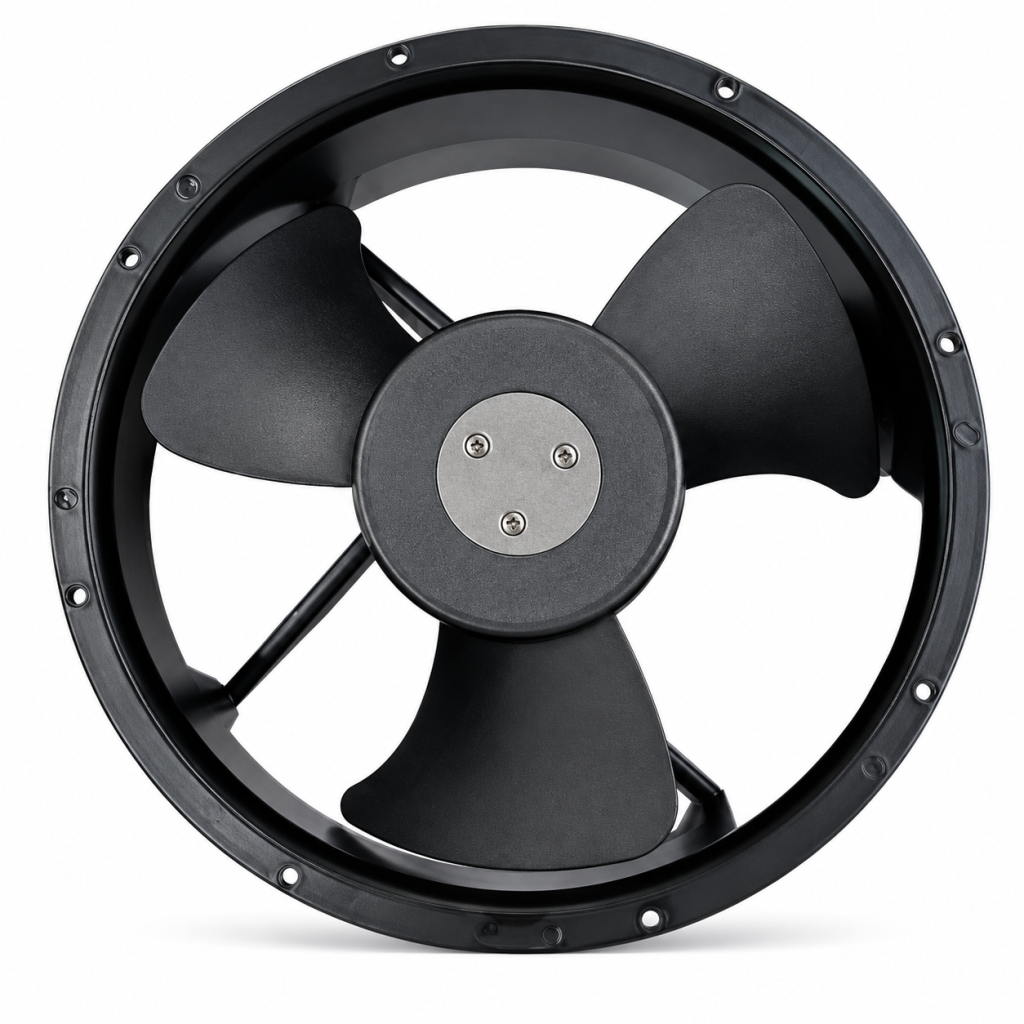

AC FANS
ø254x89 mm
(ø10x3.5 in)
PRODUCT SPECIFICATIONS
Frame: Die-cast Aluminum
Impeller: Plastic (UL 94V-0 P.B.T)
Ambient Temperature Range: -20℃ ~ +65℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Capacitor Induction Motor
Motor Protection: Thermally Protected
Termination: Terminals or Lead wire
Weight: 2,460 g
Typical Applications
Industrial Equipment
Control Cabinets
Power Supplies
HVAC Systems

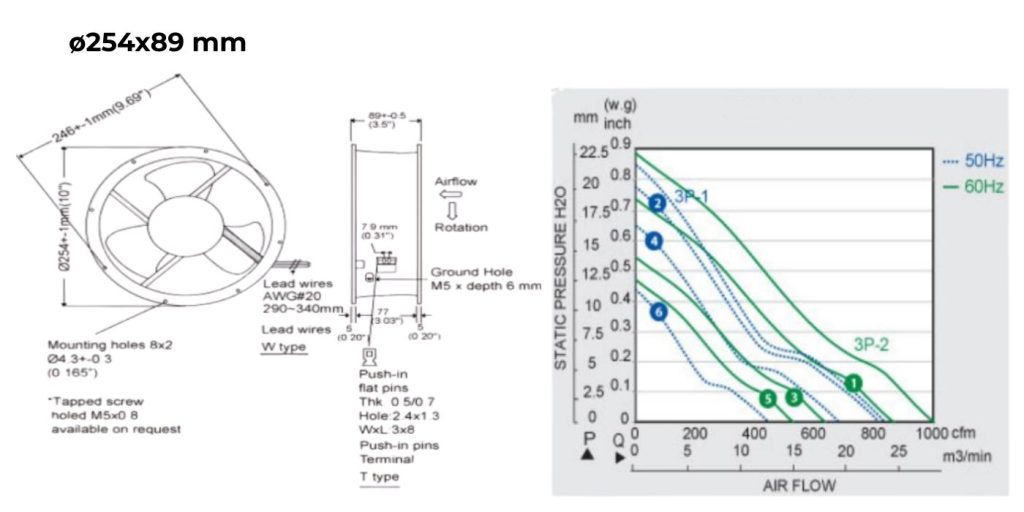

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HY12589UB | 115 | 50/60 | 60/75 | 2800/3150 | 880/1000 | 30.48/27.94 | 70 |
| HY12589XB | 115 | 50/60 | 60/75 | 2600/2700 | 820/860 | 19.81/18.54 | 65 |
| HY12589HB | 115 | 50/60 | 60/70 | 2100/1950 | 680/630 | 12.95/9.91 | 58 |
| HY22589UB | 230 | 50/60 | 60/75 | 2800/3150 | 880/1000 | 30.48/27.94 | 70 |
| HY22589XB | 230 | 50/60 | 60/75 | 2600/2700 | 820/860 | 19.81/18.54 | 65 |
| HY22589HB | 230 | 50/60 | 60/70 | 2100/1950 | 680/630 | 12.95/9.91 | 58 |
