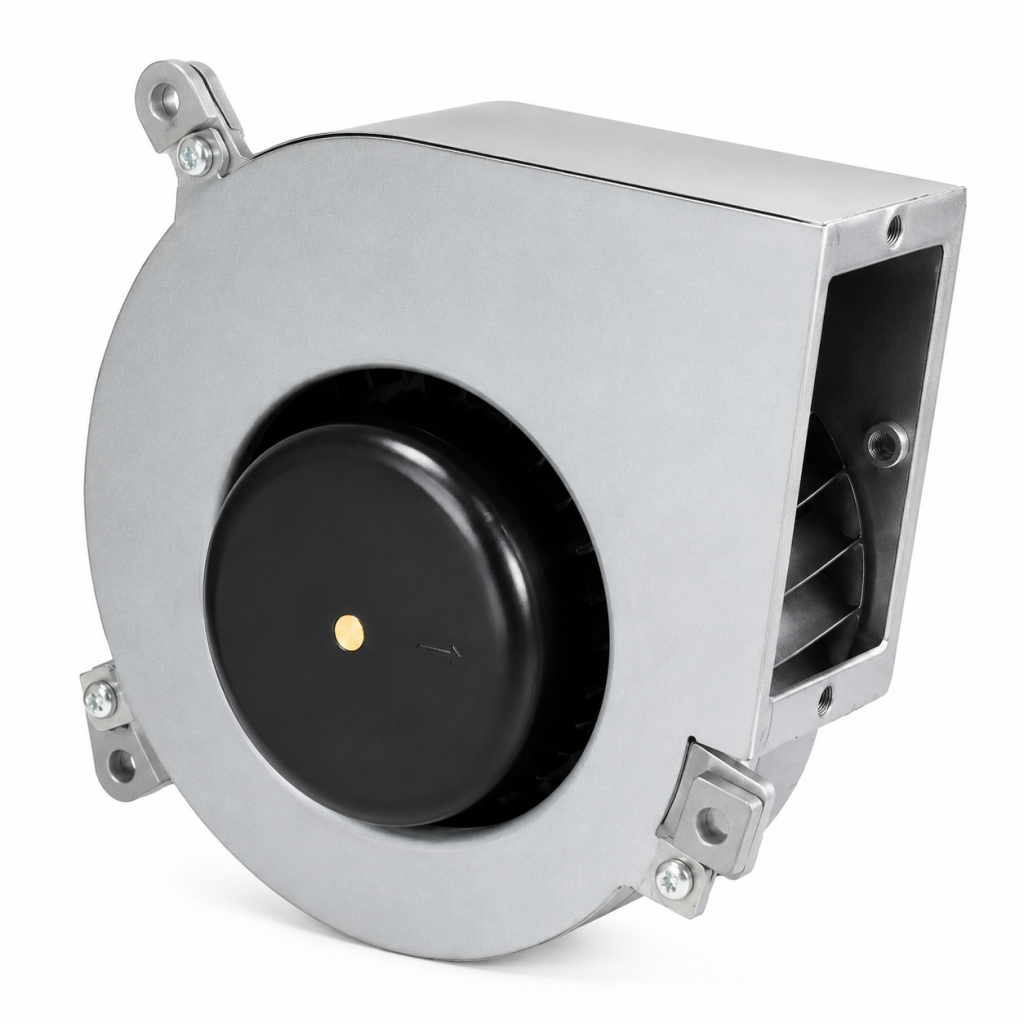

AC BLOWERS
125x126x39 mm
(4.92x4.96x1.53 in)
PRODUCT SPECIFICATIONS
Frame: Die-Cast Aluminum
Impeller: Glass-Fiber-Reinforced Plastic
Ambient Temperature Range: -20°C ~ +75°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Single-Phase Shaded-Pole Induction Motor
Termination: Lead Wire
Weight: 525 g
Typical Applications
Electronic Equipment
Communication Equipment
Power Supplies
Medical Devices

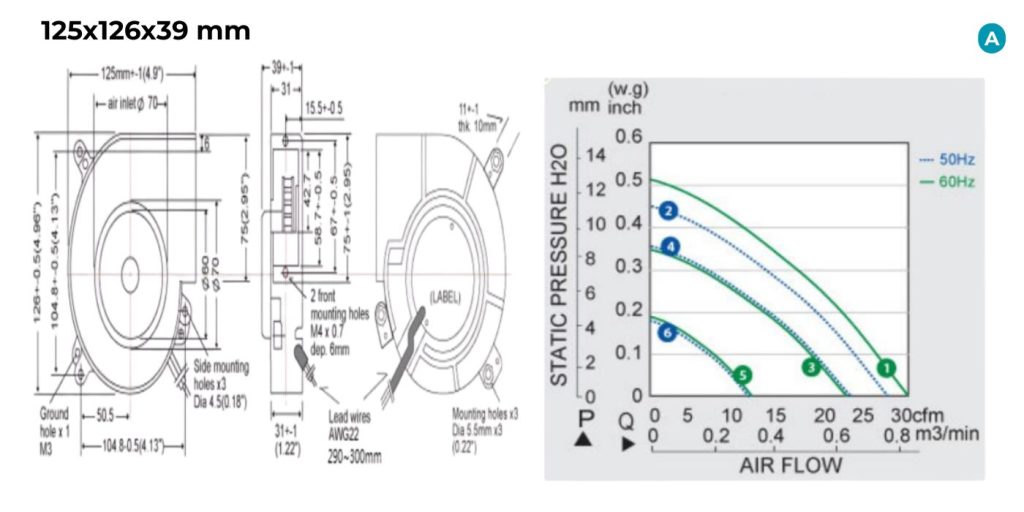

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mmAq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYB11239HB | 115 | 50/60 | 20/18 | 2500/2700 | 28/30 | 10.92/12.95 | 48 |
| HYB21239HB | 230 | 50/60 | 20/18 | 2500/2700 | 28/30 | 10.92/12.95 | 48 |
