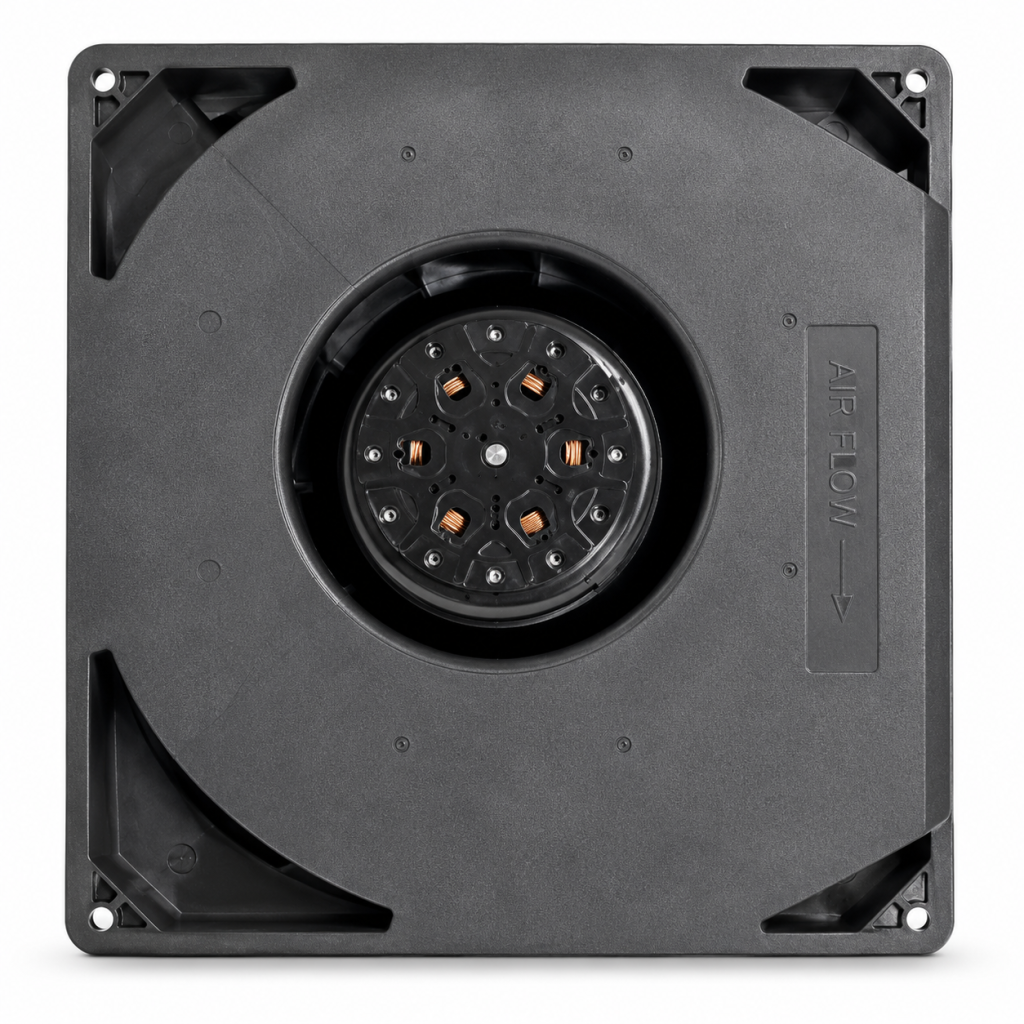

AC BLOWERS
220x220x56 mm
(8.66x8.66x2.2 in)
PRODUCT SPECIFICATIONS
Frame: Die-Cast Aluminum
Impeller: Plastic
Ambient Temperature Range: -20°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Shaded-Pole Induction Motor or Capacitor Induction Motor
Termination: Lead Wire
Weight: 1,730 g
Typical Applications
Electronic Equipment
Communication Equipment
Power Supplies
Medical Devices

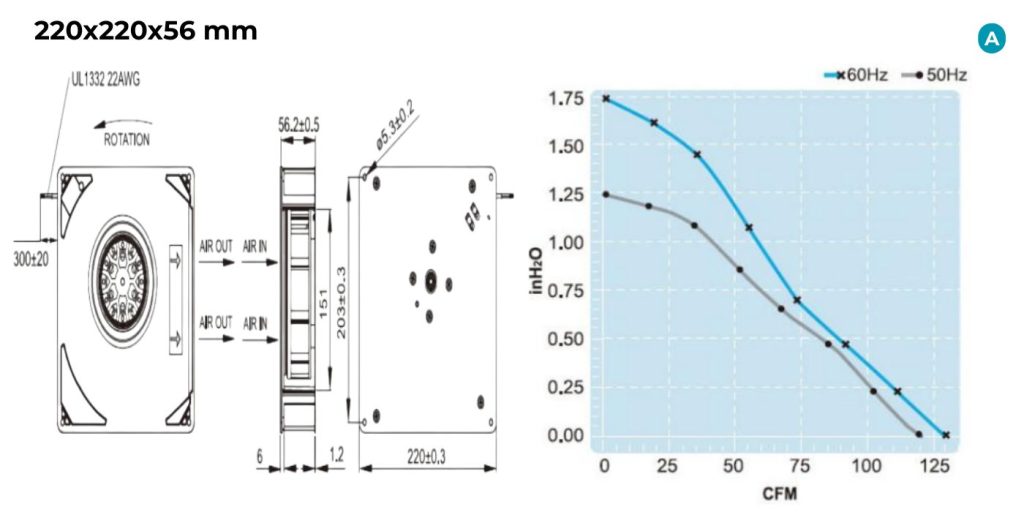

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mmAq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYB12256HB | 115 | 50/60 | 50/52 | 2700/2900 | 118/126 | 33/46 | 63/65 |
| HYB23389HB | 230 | 50/60 | 50/53 | 2700/2900 | 118/126 | 33/46 | 63/65 |
