AC BLOWERS

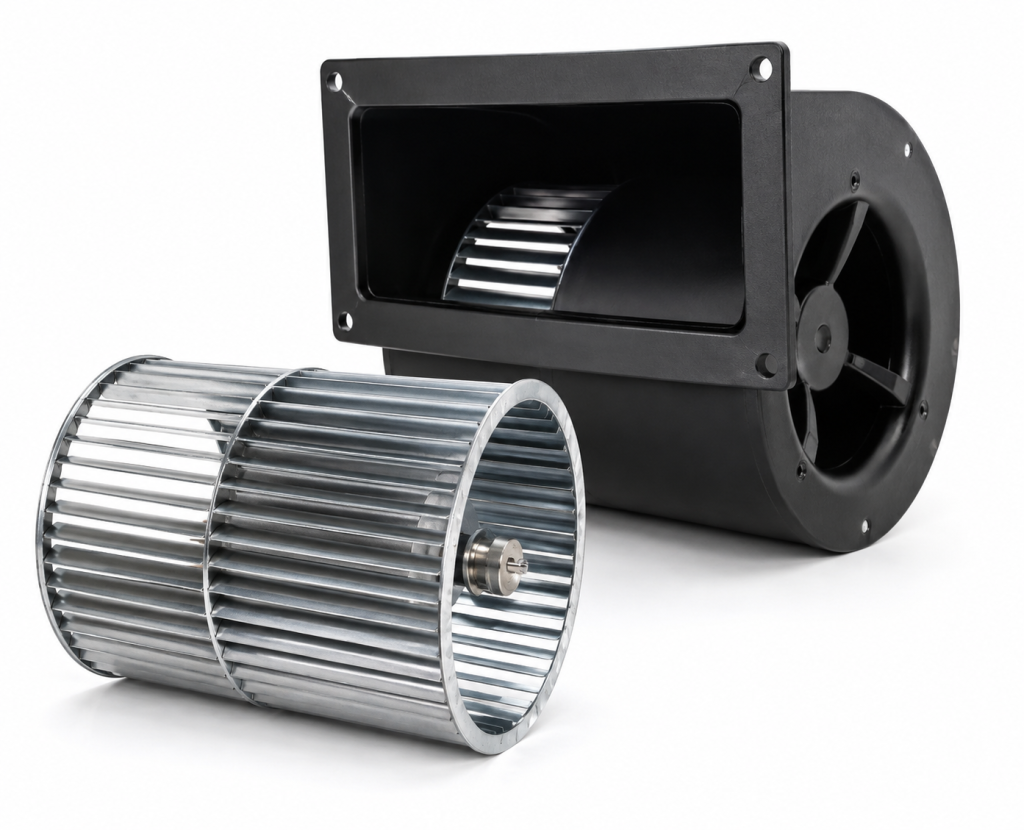

Double Inlet Blower 110V / 2-Pole
PRODUCT SPECIFICATIONS
Impeller: Steel
Ambient Temperature Range: -20°C ~ +70°C
Insulation Class: Class F
Bearing: Ball Bearing
Motor Structure: External Rotor Motor
Motor Protection: Thermal Protection
Termination: Lead Wire
Typical Applications
Electronic Equipment
Communication Equipment
Power Supplies
Medical Devices
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (m³/h) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYB12510B | 110 | 60 | 1.52 | 165 | 1290 | 580 | 56 |
| HYB12714B | 110 | 60 | 2.3 | 250 | 1040 | 910 | 63 |
| HYB12714HB | 110 | 60 | 3.02 | 330 | 1610 | 1040 | 72 |

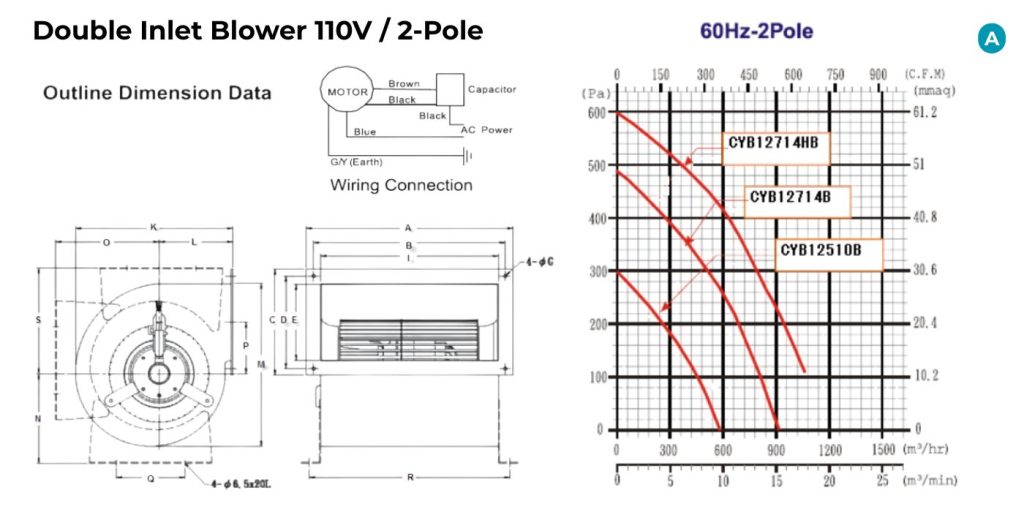

| Model | A | B | C | D | E | G | I | K | L | M | P | N | O | S | Q | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HYB12510B | 254 | 238 | 108 | 92 | 67 | 5.5 | 215 | 172 | 89 | 180 | 65.5 | – | – | – | – | – |
| HYB12714B | 270 | 254 | 142 | 126 | 102 | 5.5 | 232 | 206 | 97 | 219 | 69 | 120 | 135 | 142 | 90 | 260 |
