AC BLOWERS

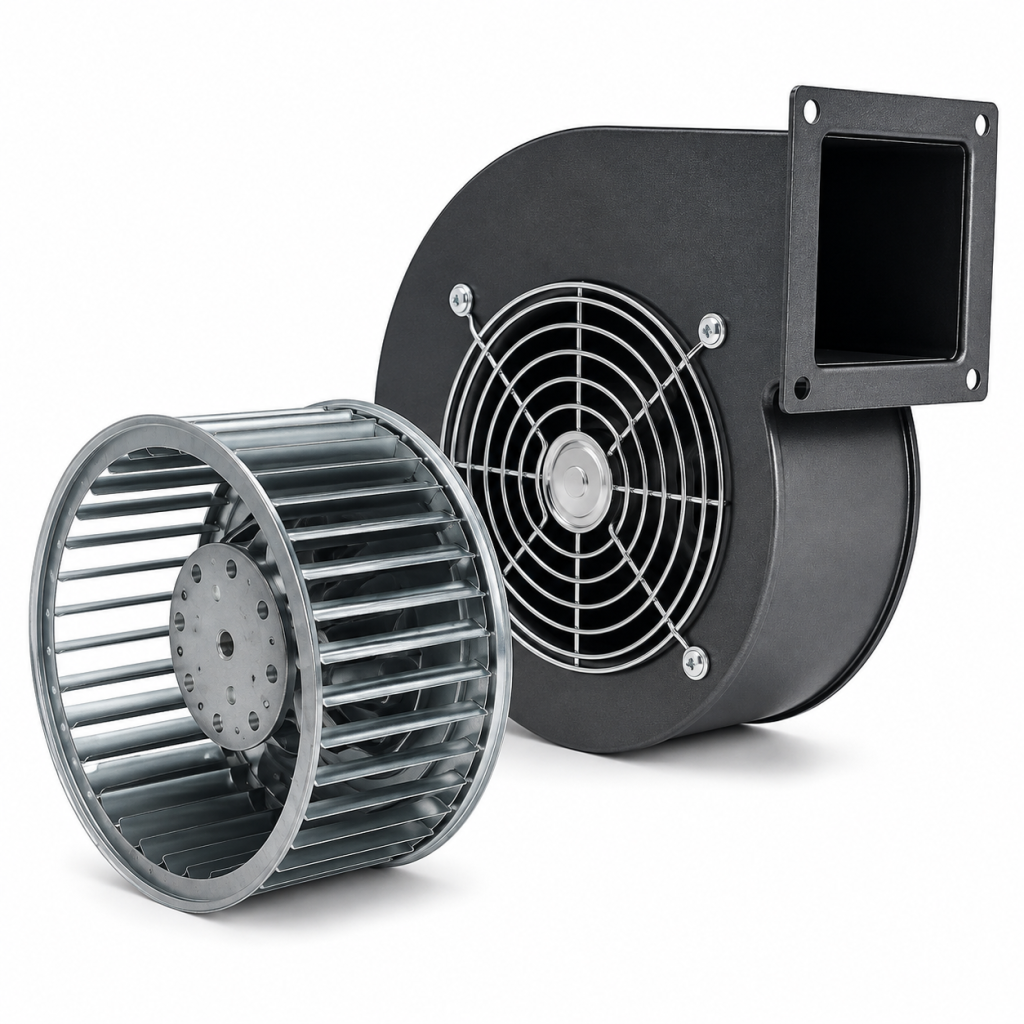

Single Inlet Blower 110V / 2-Pole
PRODUCT SPECIFICATIONS
Impeller: Steel
Ambient Temperature Range: -20°C ~ +70°C
Insulation Class: Class F
Bearing: Ball Bearing
Motor Structure: External Rotor Motor
Motor Protection: Thermal Protection
Termination: Lead Wire
Typical Applications
Electronic Equipment
Communication Equipment
Power Supplies
Medical Devices
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (m³/h) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYB11211B | 110 | 60 | 1 | 110 | 2010 | 335 | 64 |
| HYB11312B | 110 | 60 | 1.72 | 225 | 2060 | 525 | 63 |
| HYB11313B | 110 | 60 | 2.24 | 245 | 1980 | 565 | 72 |
| HYB11313HB | 110 | 60 | 2.76 | 300 | 2200 | 625 | 72 |

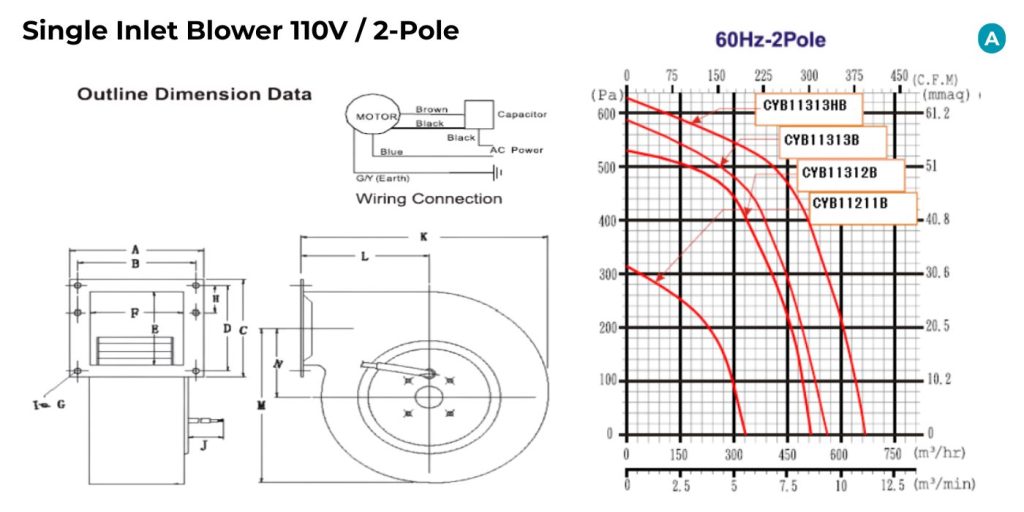

| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HYB11211B | 120 | 100 | 110 | 90 | 86 | 78 | 6.5 | – | 4 | 560 | 208 | 102 | 166 | 77 |
| HYB11312B | 130 | 115 | 120 | 105 | 90 | 92 | 6.5 | – | 4 | 560 | 226 | 104 | 203 | 94 |
| HYB11313B | 130 | 115 | 120 | 105 | 90 | 92 | 6.5 | – | 4 | 560 | 226 | 104 | 203 | 94 |
