AC BLOWERS

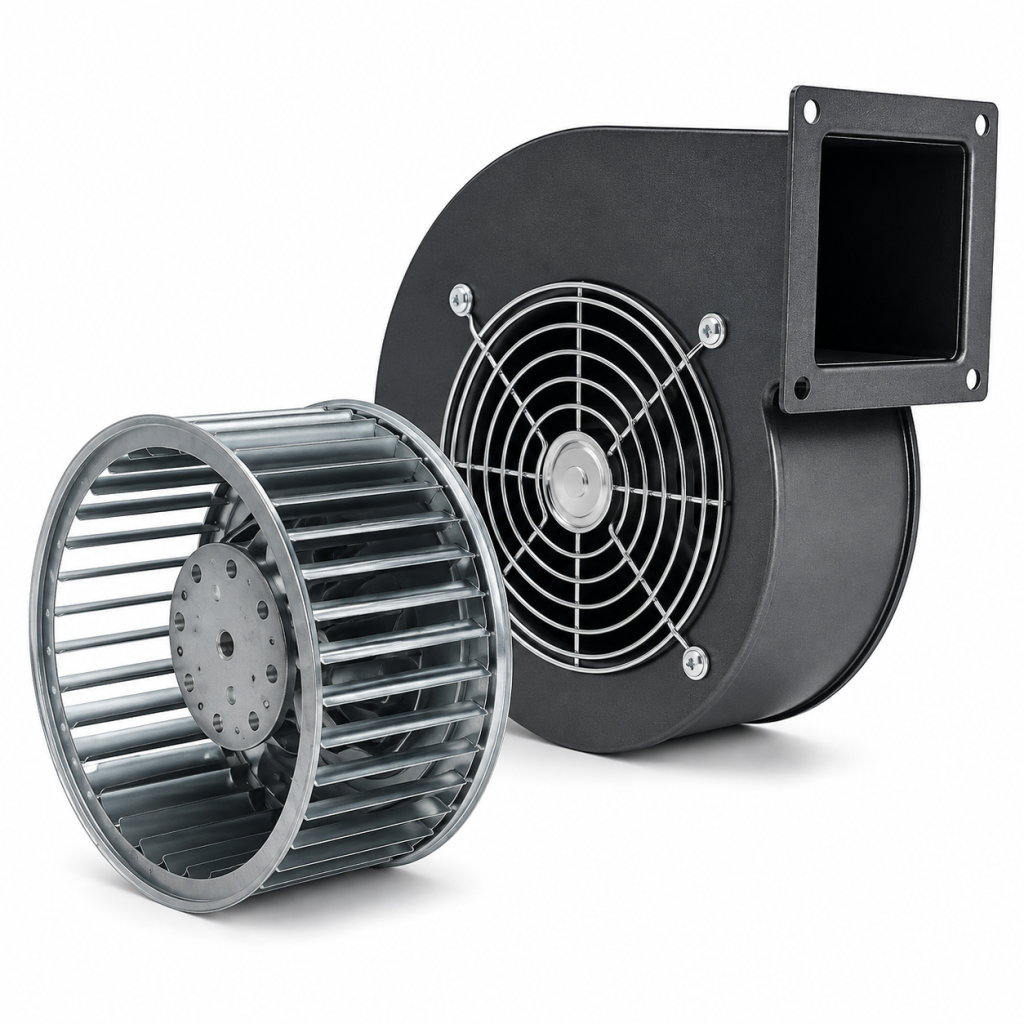

Single Inlet Blower 220V / 2-Pole
PRODUCT SPECIFICATIONS
Impeller: Steel
Ambient Temperature Range: -20°C ~ +70°C
Insulation Class: Class F
Bearing: Ball Bearing
Motor Structure: External Rotor Motor
Motor Protection: Thermal Protection
Termination: Lead Wire
Typical Applications
Electronic Equipment
Communication Equipment
Power Supplies
Medical Devices
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (m³/h) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYB21211B | 220 | 50/60 | 0.41/0.5 | 90/110 | 2010/2080 | 355/340 | 63/64 |
| HYB21312B | 220 | 50/60 | 0.71/0.86 | 190/225 | 2140/2060 | 535/525 | 64/63 |
| HYB21313B | 220 | 50/60 | 0.93/1.12 | 205/245 | 2075/1980 | 600/565 | 68/67 |
| HYB21313HB | 220 | 50/60 | 1.1/1.38 | 235/300 | 2190/2200 | 625/640 | 72/72 |

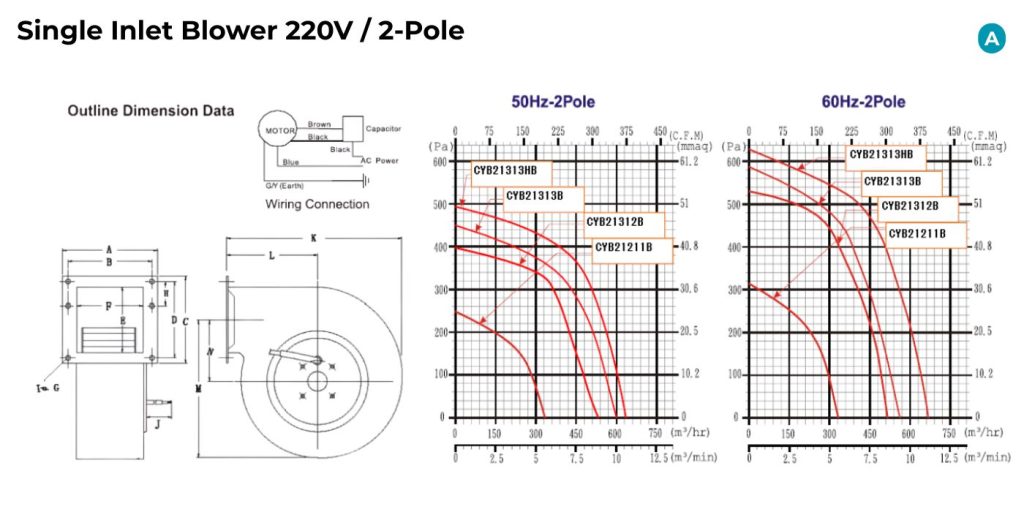

| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HYB21211B | 120 | 100 | 110 | 90 | 86 | 78 | 6.5 | – | 4 | 560 | 208 | 102 | 166 | 77 |
| HYB21312B | 130 | 115 | 120 | 105 | 90 | 92 | 6.5 | – | 4 | 560 | 226 | 104 | 203 | 94 |
| HYB21313B | 130 | 115 | 120 | 105 | 90 | 92 | 6.5 | – | 4 | 560 | 226 | 104 | 203 | 94 |
