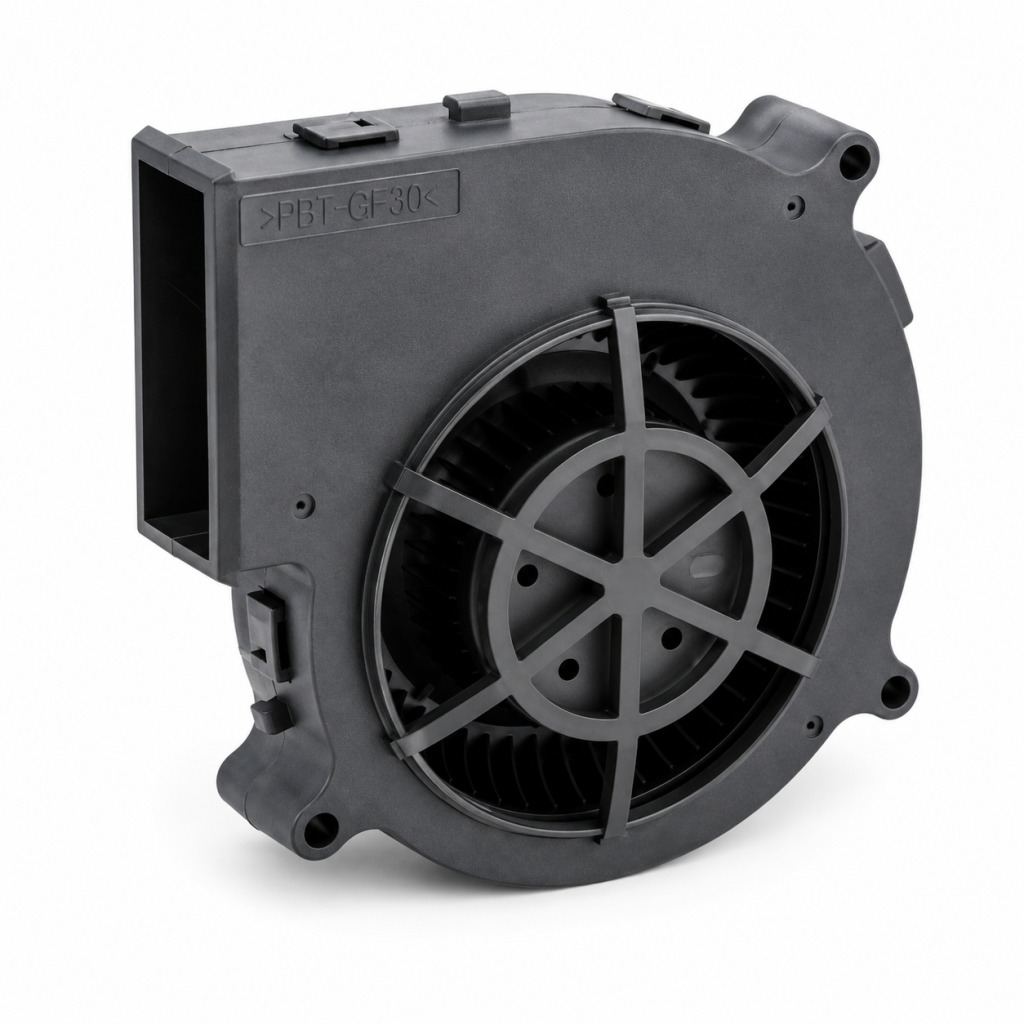

DC BLOWERS
100x98x25 mm
PRODUCT SPECIFICATIONS
Housing: PBT Plastic (UL94 V-0)
Impeller: PBT Plastic (UL94 V-0)
Ambient Temperature Range: -10°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Brushless DC Motor
Termination: Lead Wire 300 mm
Weight: 120 g
Typical Applications
Electronic Equipment
Communication Equipment
Power Supplies
Medical Devices

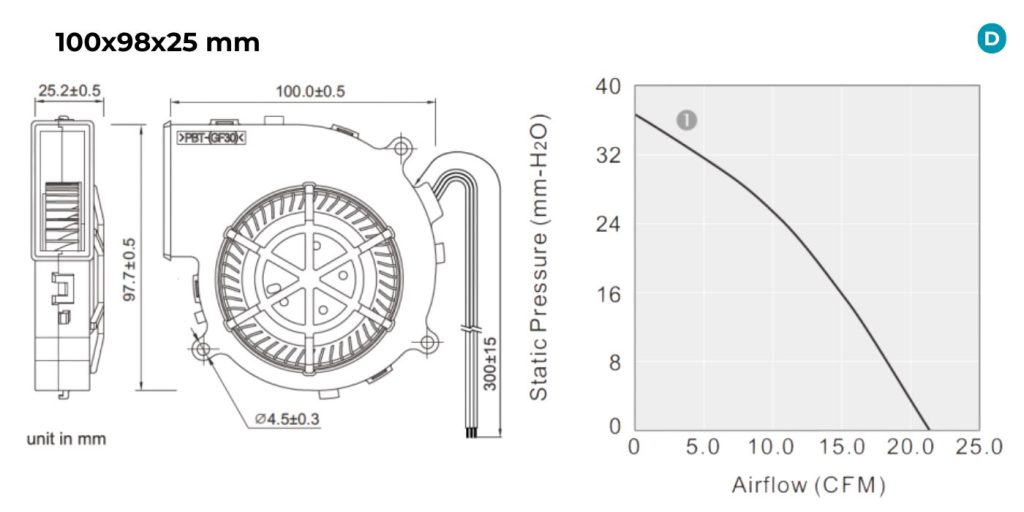

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H₂O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD121025XBL | 12 | 0.55 | 7.43 | 4200 | 21.4 | 1.45 | 54.8 |
