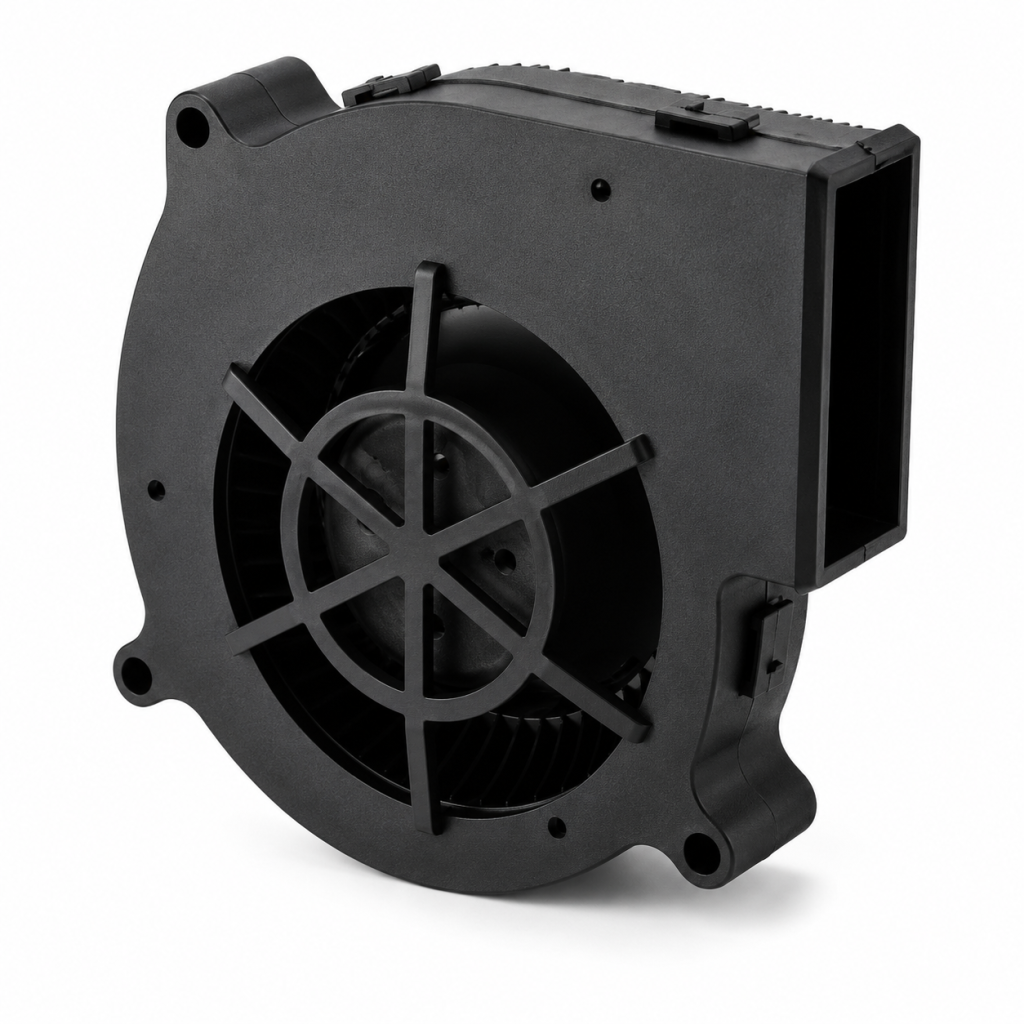

DC BLOWERS

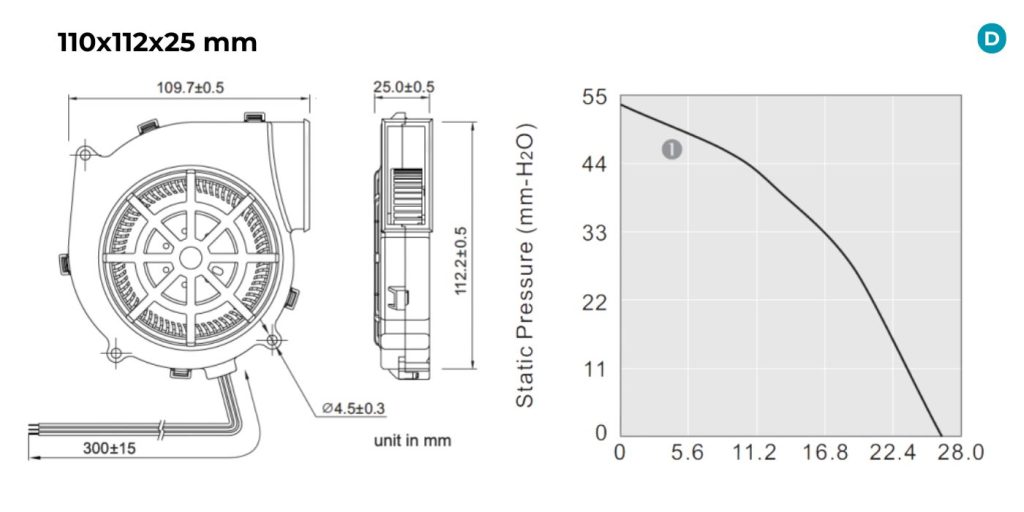

110x112x25 mm
PRODUCT SPECIFICATIONS
Housing: Plastic
Impeller: PBT Plastic (UL94 V-0)
Ambient Temperature Range: -10°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Sleeve or Ball Bearing
Motor Structure: Brushless DC Motor
Termination: Lead Wire 300± 10mm
Weight: 120 g
Typical Applications
Electronic Equipment
Communication Equipment
Power Supplies
Medical Devices
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Operating Voltage Range (V) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H₂O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYD121125XBL | 12 | 9.0–16.0 | 1 | 13.5 | 4500 | 26.4 | 2.11 | 57.1 |
