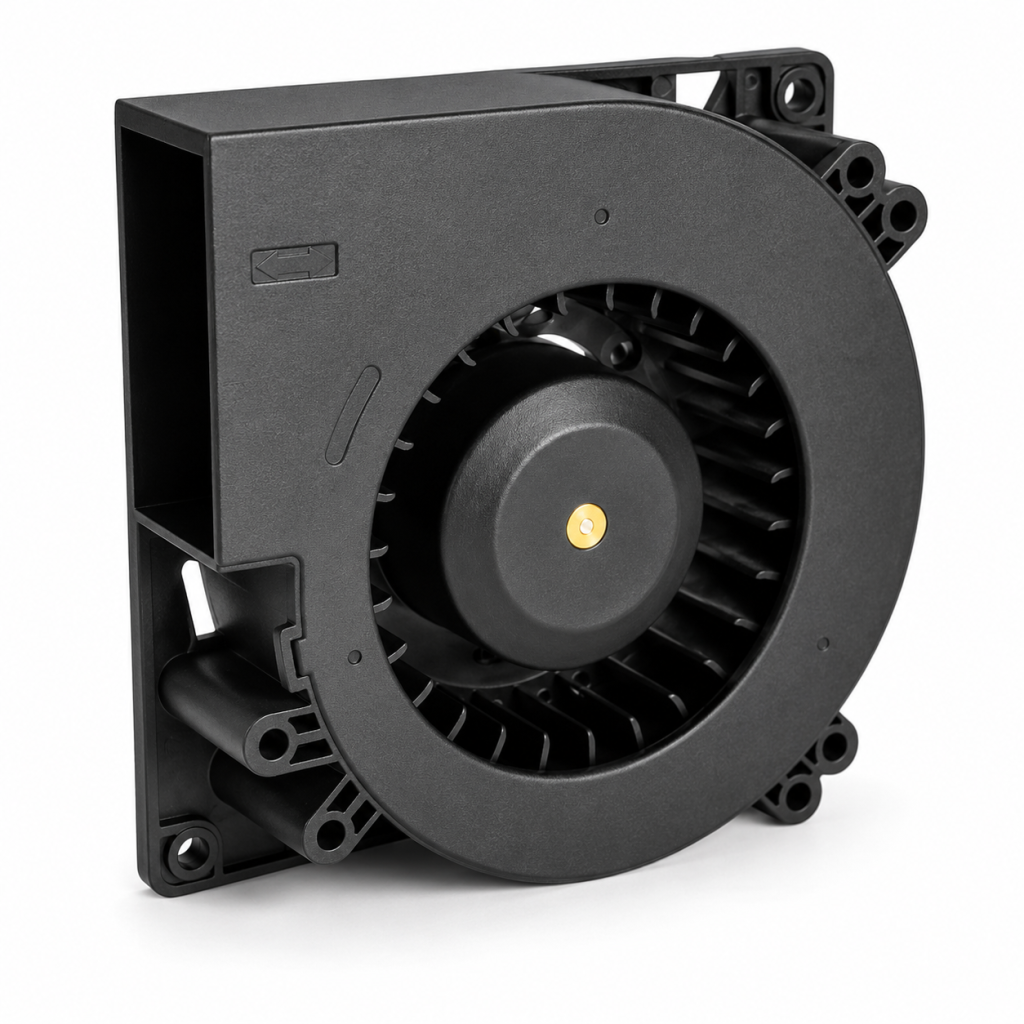

DC BLOWERS

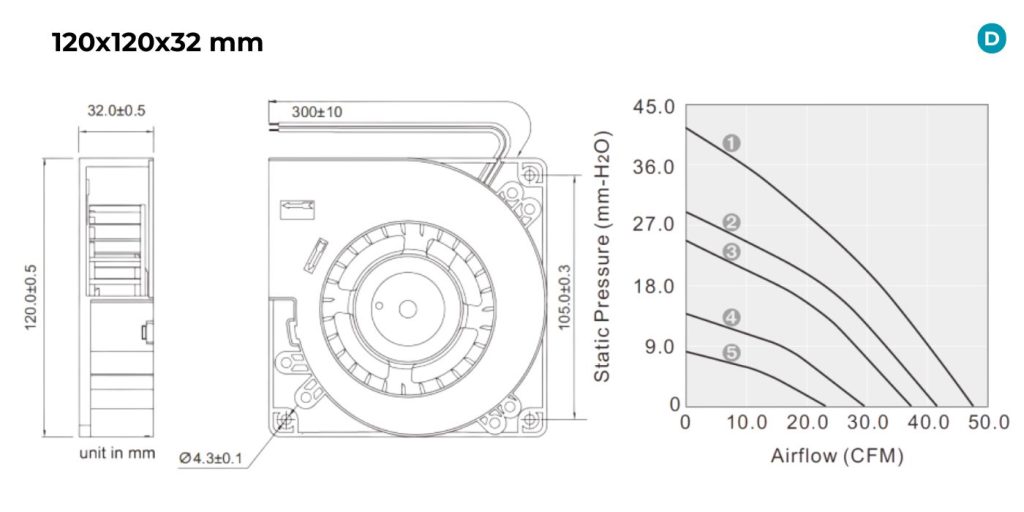

120x120x32 mm
PRODUCT SPECIFICATIONS
Housing: PBT Plastic (UL94 V-0)
Impeller: PBT Plastic (UL94 V-0)
Ambient Temperature Range: -10°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Brushless DC Motor
Termination: Lead Wire 300 mm
Weight: 258.5 g
Typical Applications
Electronic Equipment
Communication Equipment
Power Supplies
Medical Devices
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H₂O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD121232LBL | 12 | 0.15 | 1.8 | 1700 | 23 | 0.31 | 42.5 |
| HYD121232MBL | 12 | 0.25 | 3 | 2100 | 29.5 | 0.54 | 49.5 |
| HYD121232HBL | 12 | 0.7 | 8.4 | 2600 | 37.2 | 0.97 | 57 |
| HYD121232XBL | 12 | 0.9 | 10.8 | 2900 | 41.4 | 1.14 | 59 |
| HYD121232UBL | 12 | 1.5 | 18 | 3500 | 47.5 | 1.64 | 62 |
| HYD241232LBL | 24 | 0.12 | 2.88 | 1700 | 23 | 0.31 | 42.5 |
| HYD241232MBL | 24 | 0.18 | 4.32 | 2100 | 29.5 | 0.54 | 49.5 |
| HYD241232HBL | 24 | 0.26 | 6.24 | 2600 | 37.2 | 0.97 | 57 |
| HYD241232XBL | 24 | 0.45 | 10.8 | 2900 | 41.4 | 1.42 | 59 |
| HYD241232UBL | 24 | 0.83 | 19.92 | 3500 | 47.5 | 1.64 | 62 |
