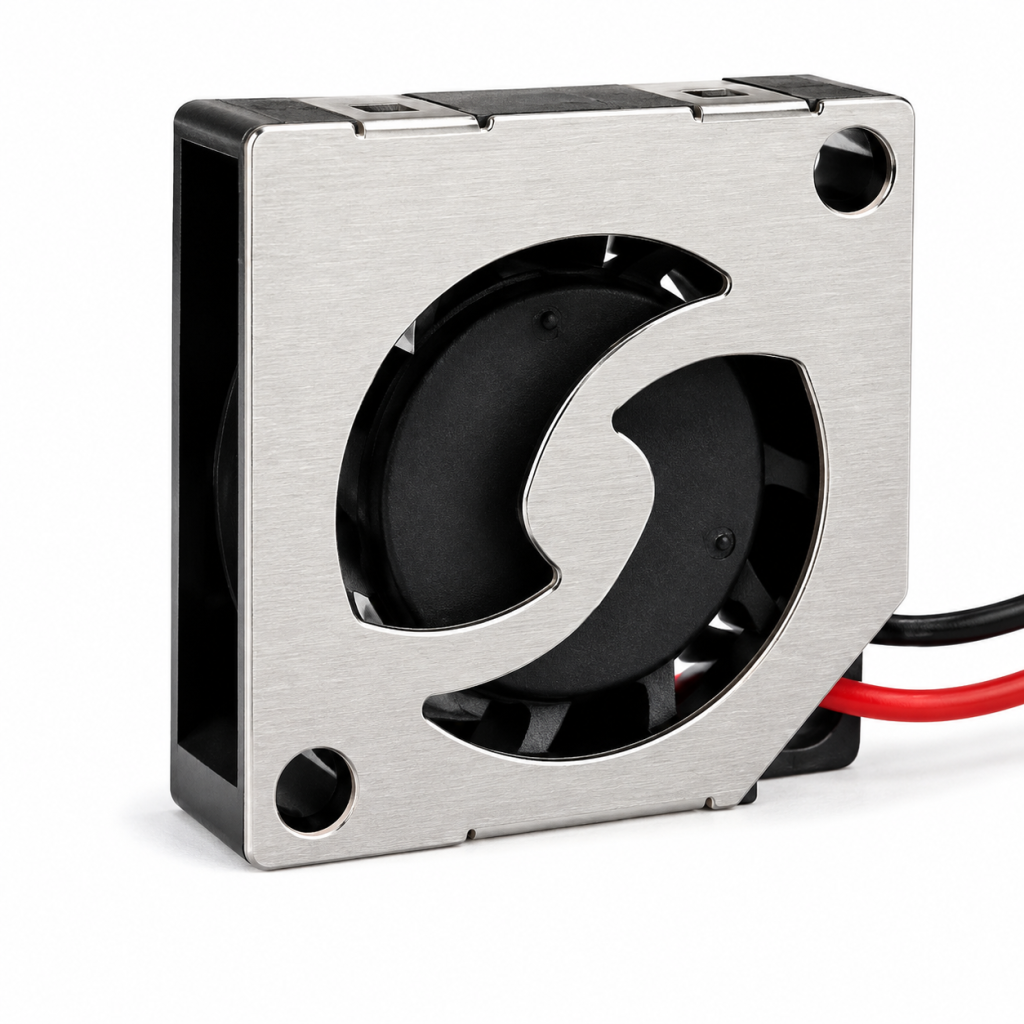

DC BLOWERS
15x15x04 mm
PRODUCT SPECIFICATIONS
Material: Plastic (UL94V-0)
Ambient Temperature Range: -10°C ~ +60°C
Storage Temperature Range: -20°C ~ +70°C
Bearing: Sleeve Bearing
Motor Structure: Single-Phase Brushless DC Motor
Weight: 1.38 g
Typical Applications
Electronic Equipment
Communication Equipment
Power Supplies
Medical Devices

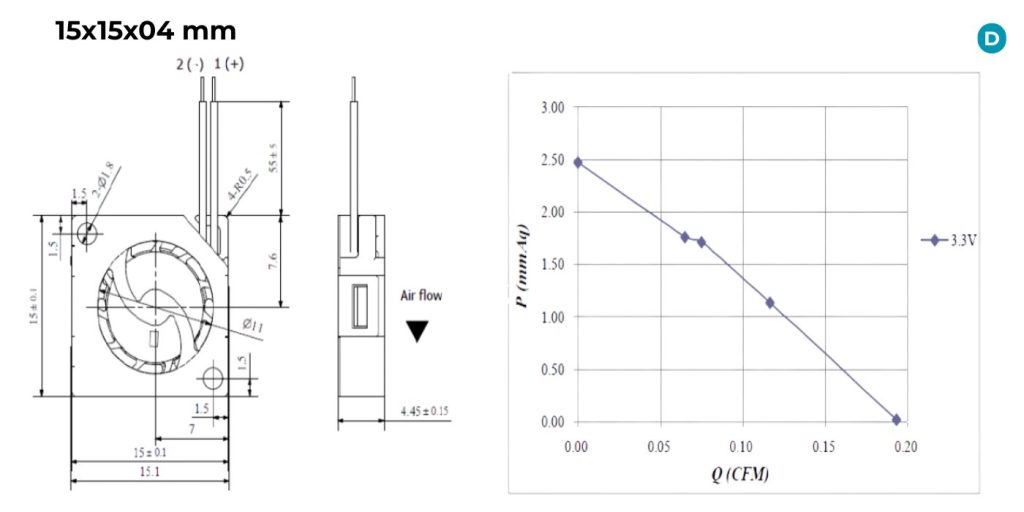

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Operating Voltage Range (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H₂O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD031504 | 3.3 | 2.5–3.6 | 0.035 | 14500 | 0.19 | 2.47 | 18.6 |
