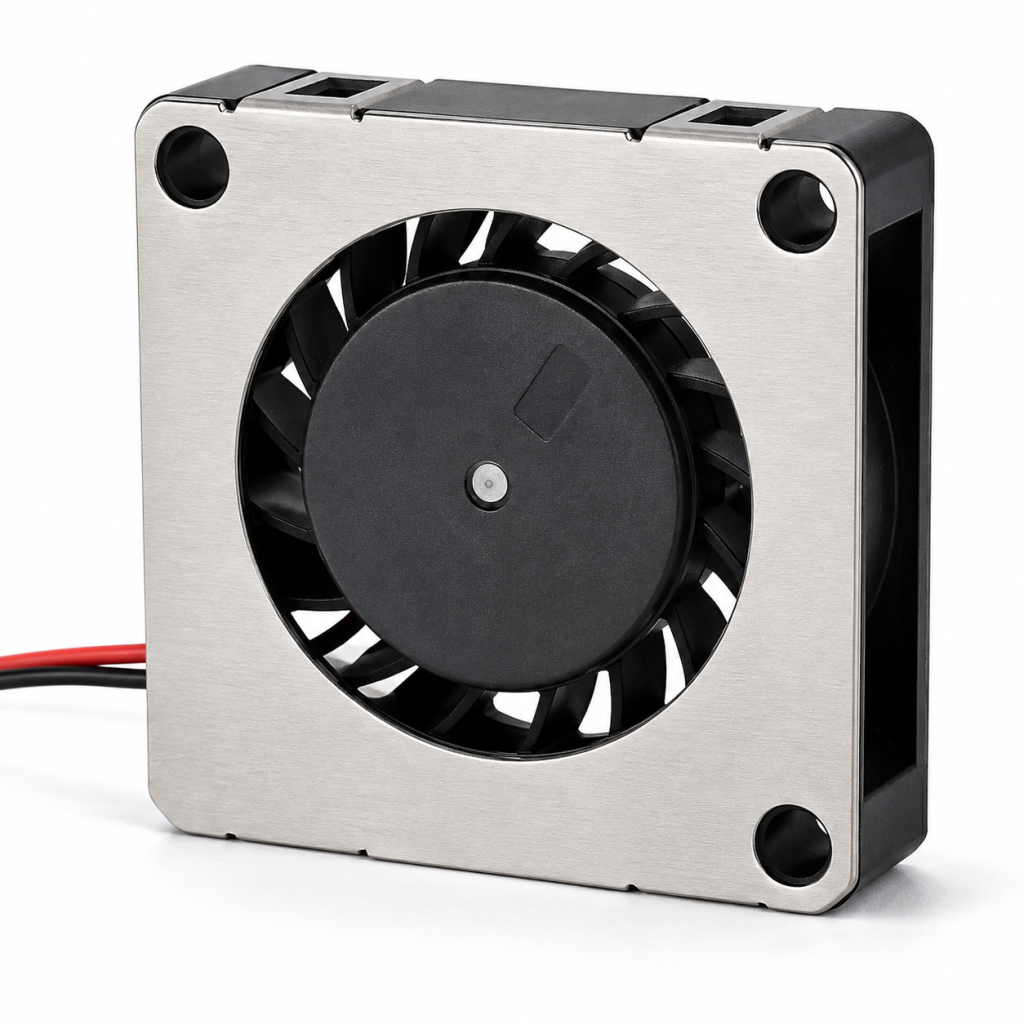

DC BLOWERS

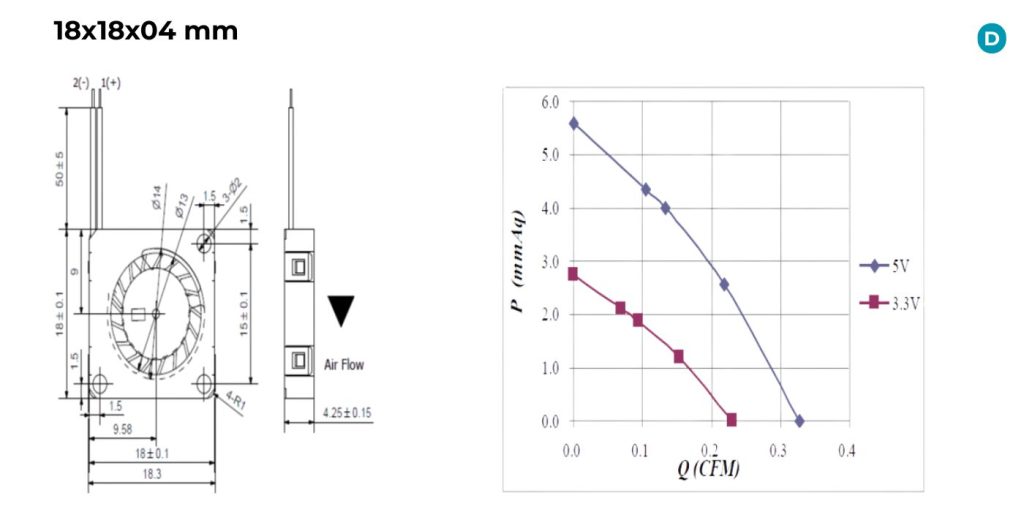

18x18x04 mm
PRODUCT SPECIFICATIONS
Material: Plastic (UL94V-0)
Ambient Temperature Range: -10°C ~ +60°C
Storage Temperature Range: -20°C ~ +70°C
Bearing: Sleeve Bearing
Motor Structure: Single-Phase Brushless DC Motor
Weight: 1.74 g
Typical Applications
Electronic Equipment
Communication Equipment
Power Supplies
Medical Devices
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Operating Voltage Range (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H₂O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD031804 | 3.3 | 2.8–3.6 | 0.035 | 9000 | 0.23 | 2.74 | 15.1 |
| HYD051804 | 5 | 4.5–5.5 | 0.05 | 12000 | 0.33 | 5.58 | 20.4 |
