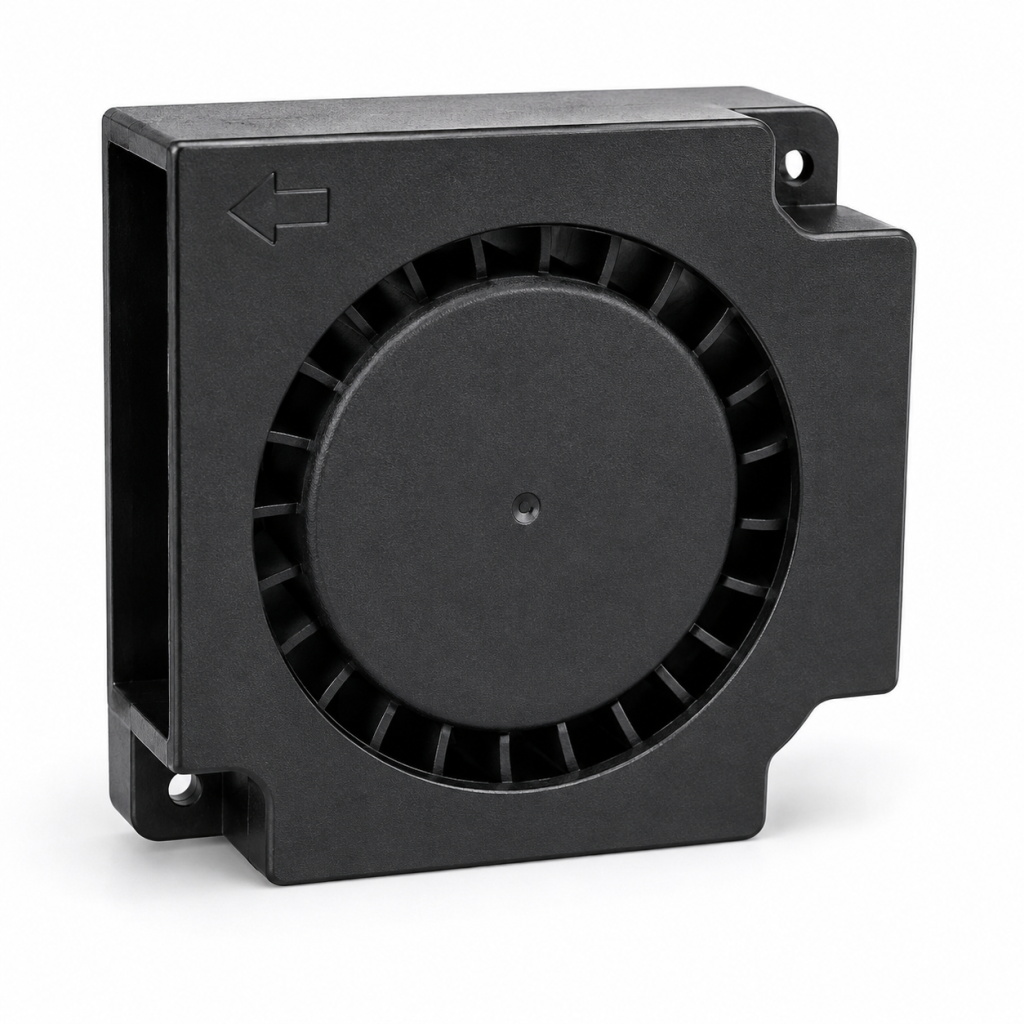

DC BLOWERS

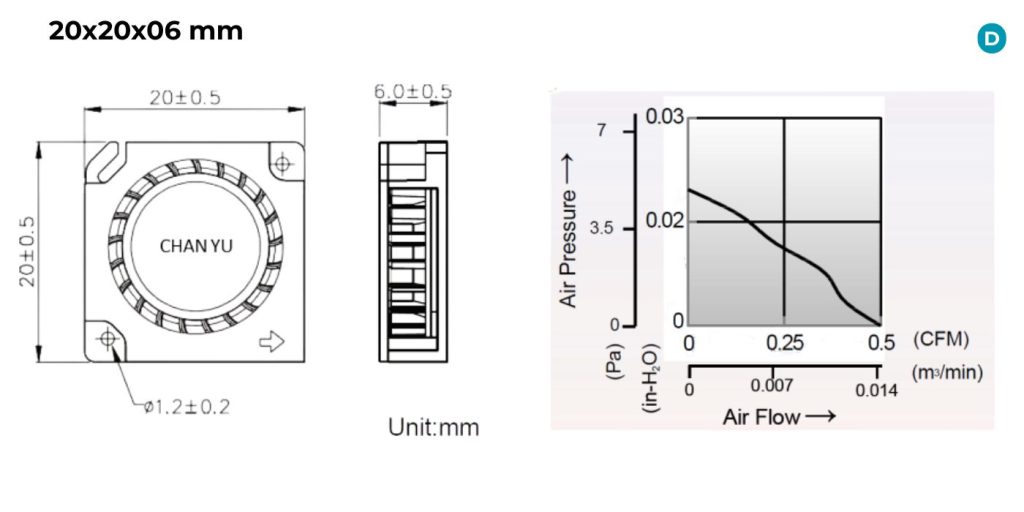

20x20x06 mm
PRODUCT SPECIFICATIONS
Frame: PBT (UL94V-0)
Impeller: PBT (UL94V-0)
Ambient Temperature Range:
• Dual Ball Bearing: -10°C ~ +70°C
• FMB / Sleeve Bearing: -10°C ~ +50°C
Storage Temperature Range: -40°C ~ +80°C
Motor Structure: Single-Phase Brushless DC Motor
Operating Environment: Non-Condensing
Weight: 2.9 g
Typical Applications
Electronic Equipment
Communication Equipment
Power Supplies
Medical Devices
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Operating Voltage Range (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H₂O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD052006HB | 5 | 4.5–5.5 | 0.02 | 5000 | 0.5 | 0.02 | 10 |
