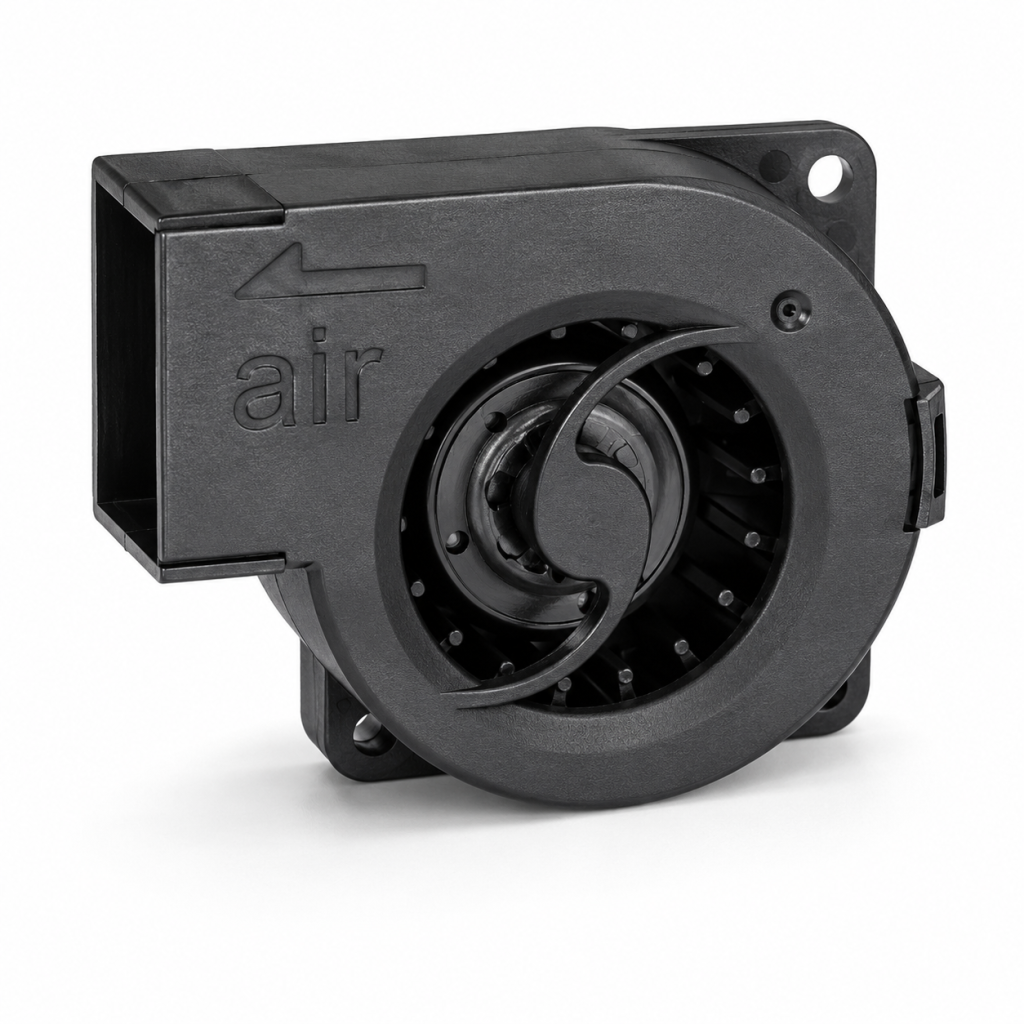

DC BLOWERS
20x25x08 mm
PRODUCT SPECIFICATIONS
Material: Plastic (UL94V-0)
Ambient Temperature Range: -10°C ~ +60°C
Storage Temperature Range: -20°C ~ +70°C
Bearing: Sleeve Bearing
Motor Structure: Single-Phase Brushless DC Motor
Weight: 3 g
Typical Applications
Electronic Equipment
Communication Equipment
Power Supplies
Medical Devices

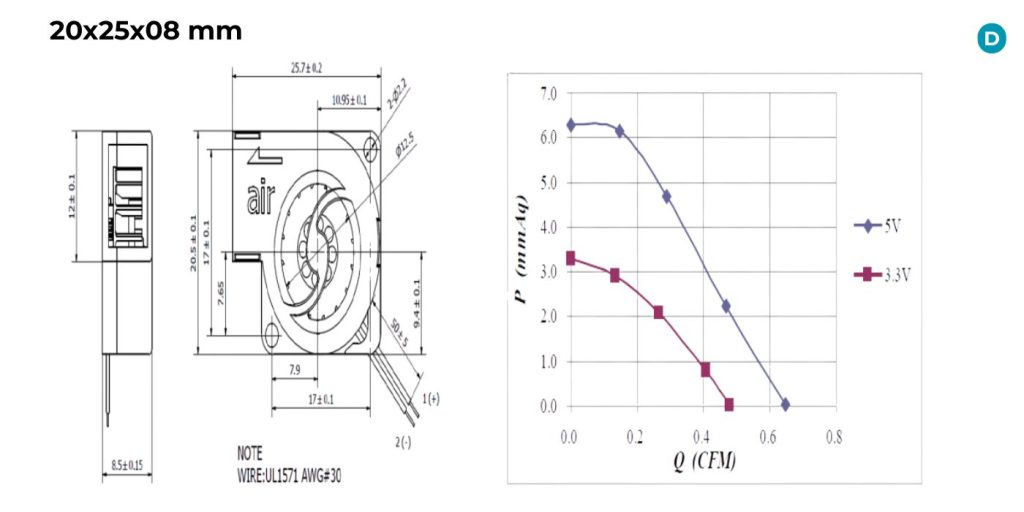

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Operating Voltage Range (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H₂O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD032508 | 3.3 | 2.8–3.6 | 0.098 | 8000 | 0.48 | 3.29 | 18.2 |
| HYD052508 | 5 | 4.5–5.5 | 0.14 | 11000 | 0.65 | 6.27 | 20.8 |
