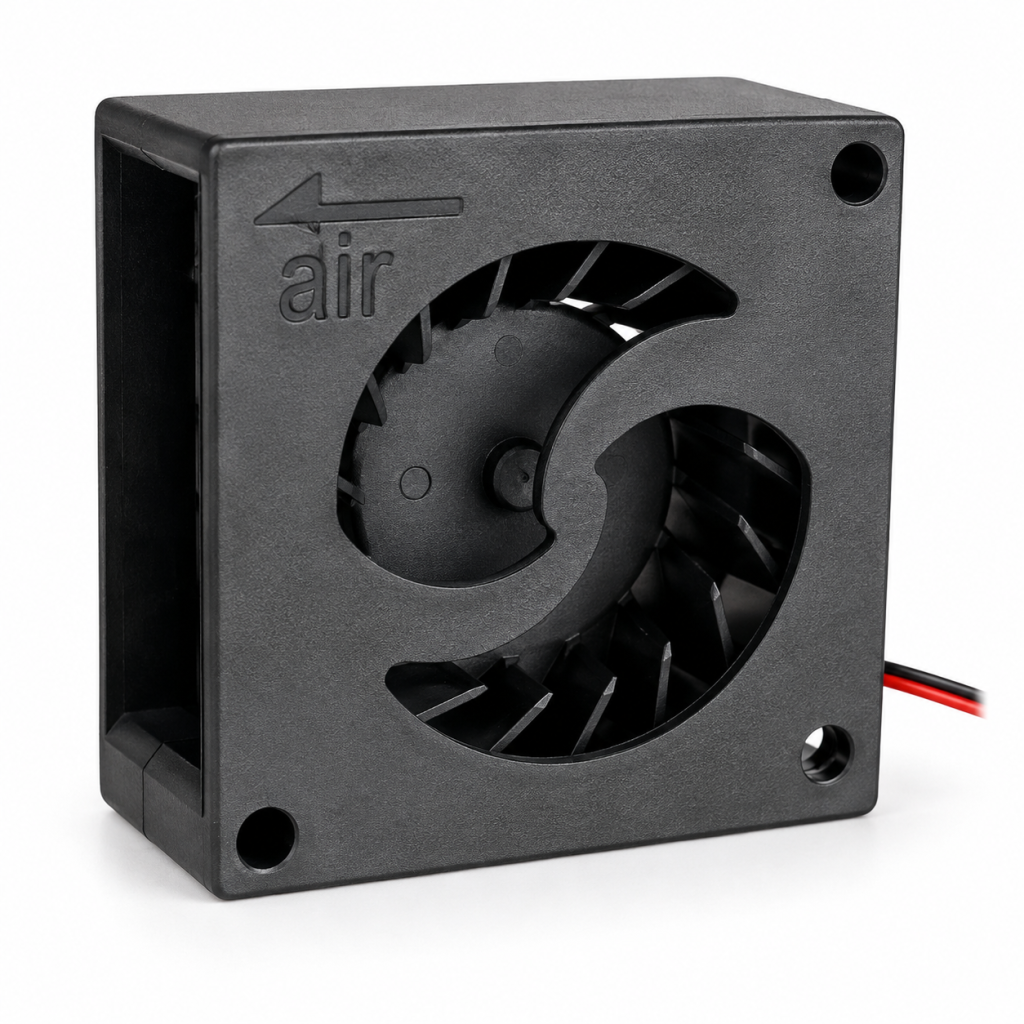

DC BLOWERS
25x25x12 mm
PRODUCT SPECIFICATIONS
Material: Plastic (UL94V-0)
Ambient Temperature Range: -10°C ~ +60°C
Storage Temperature Range: -20°C ~ +70°C
Bearing: Sleeve Bearing
Motor Structure: Single-Phase Brushless DC Motor
Weight: 5.39 g
Typical Applications
Electronic Equipment
Communication Equipment
Power Supplies
Medical Devices

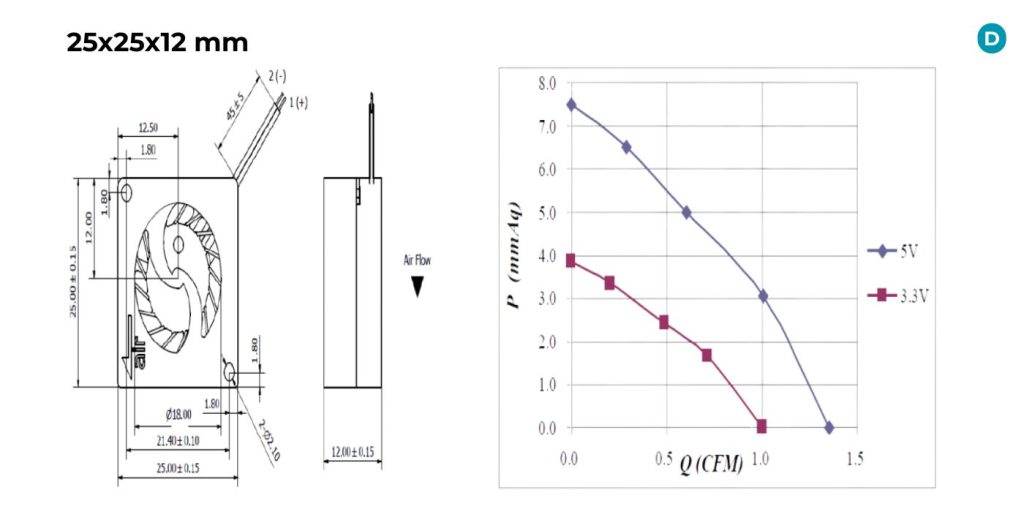

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Operating Voltage Range (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H₂O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD032512 | 3.3 | 2.8–3.6 | 0.058 | 7000 | 1 | 3.85 | 18.6 |
| HYD052512 | 5 | 4.5–5.5 | 0.087 | 9500 | 1.35 | 7.49 | 27 |
