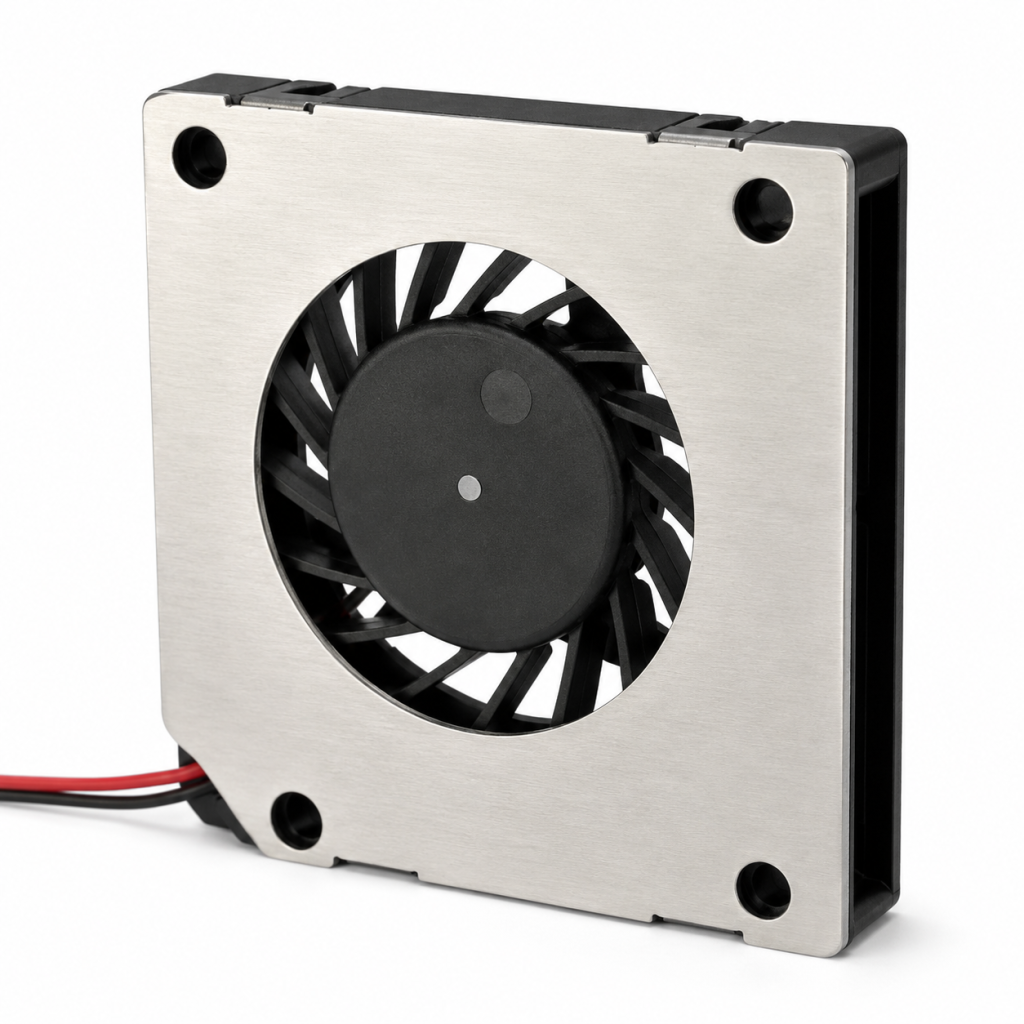

DC BLOWERS

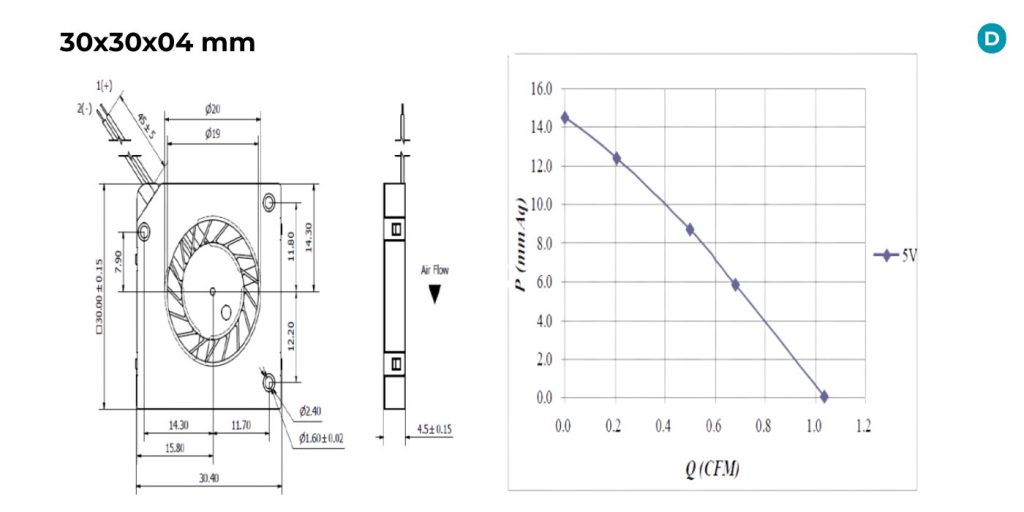

30x30x04 mm
PRODUCT SPECIFICATIONS
Material: Plastic (UL94V-0)
Ambient Temperature Range: -10°C ~ +60°C
Storage Temperature Range: -20°C ~ +70°C
Bearing: Sleeve Bearing
Motor Structure: Single-Phase Brushless DC Motor
Weight: 4.79 g
Typical Applications
Electronic Equipment
Communication Equipment
Power Supplies
Medical Devices
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Operating Voltage Range (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H₂O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD033004 | 3.3 | 2.8–3.6 | 0.04 | 6000 | 0.57 | 3.71 | 17.2 |
| HYD053004 | 5 | 2.8–5.5 | 0.12 | 11000 | 1.04 | 14.45 | 32.7 |
