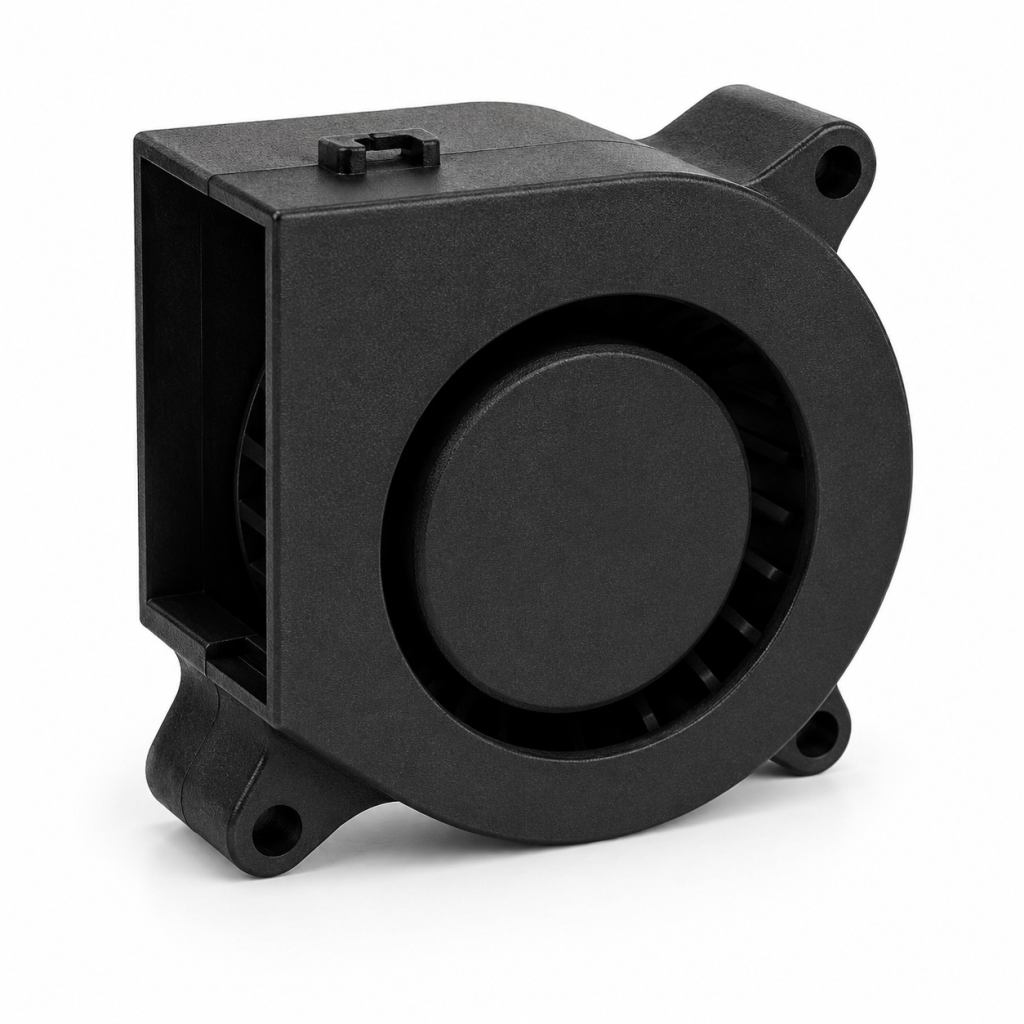

DC BLOWERS
40x40x20 mm
PRODUCT SPECIFICATIONS
Frame: PBT (UL94V-0)
Impeller: PBT (UL94V-0)
Ambient Temperature Range:
• Dual Ball Bearing: -10°C ~ +70°C
• FMB / Sleeve Bearing: -10°C ~ +50°C
Storage Temperature Range: -40°C ~ +80°C
Motor Structure: Single-Phase Brushless DC Motor
Operating Environment: Non-Condensing
Weight: 26 g
Typical Applications
Electronic Equipment
Communication Equipment
Power Supplies
Medical Devices

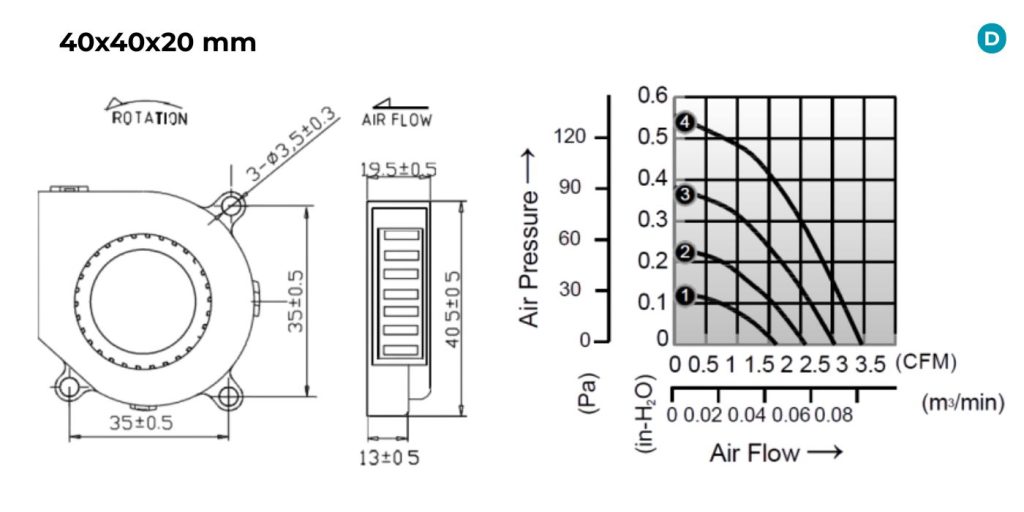

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Operating Voltage Range (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H₂O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD054020MB | 5 | 4.5–5.5 | 0.2 | 4500 | 2.1 | 0.23 | 33 |
| HYD054020HB | 5 | 4.5–5.5 | 0.25 | 5500 | 2.5 | 0.38 | 37 |
| HYD124020LB | 12 | 7.0–13.2 | 0.08 | 3500 | 1.6 | 0.13 | 27 |
| HYD124020MB | 12 | 7.0–13.2 | 0.1 | 4500 | 2.1 | 0.23 | 33 |
| HYD124020HB | 12 | 7.0–13.2 | 0.15 | 5500 | 2.5 | 0.38 | 37 |
| HYD124020XB | 12 | 7.0–13.2 | 0.18 | 6500 | 3.0 | 0.56 | 45 |
