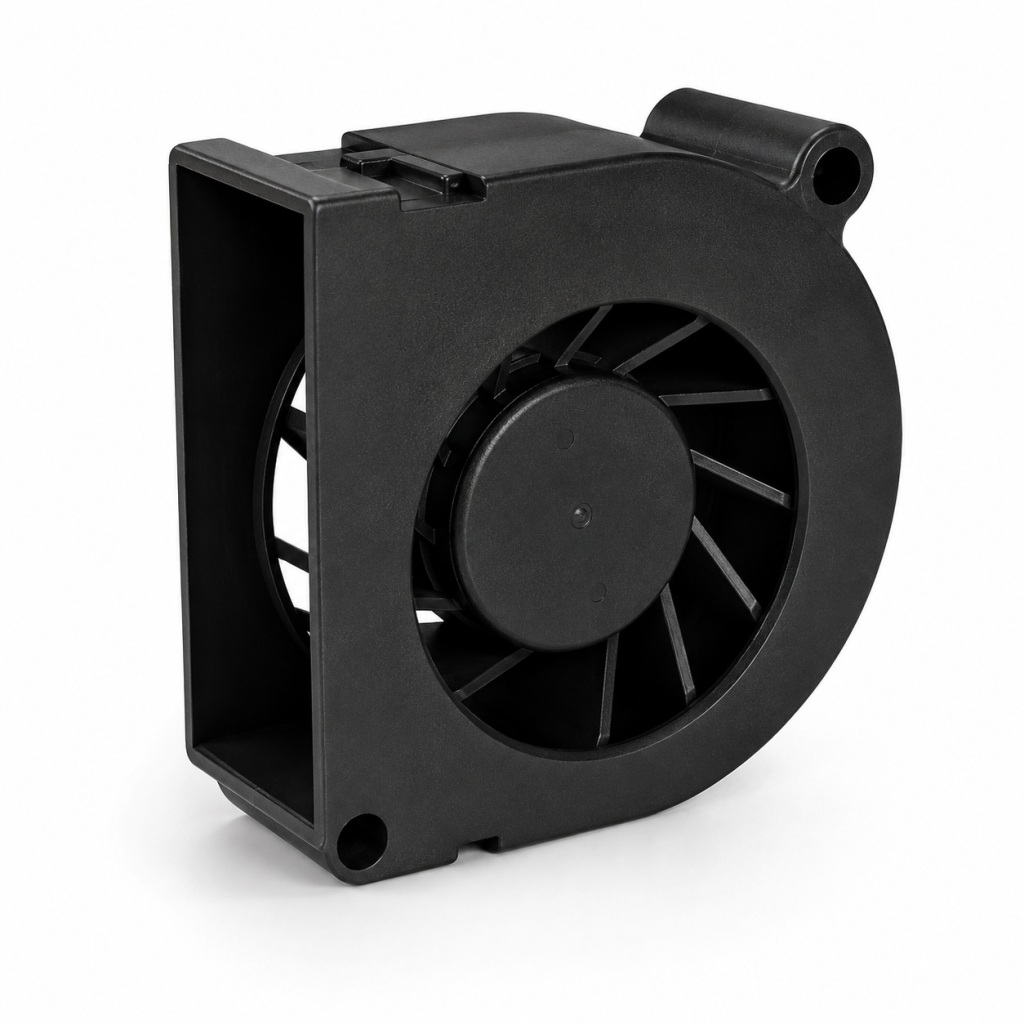

DC BLOWERS
50x50x20 mm
PRODUCT SPECIFICATIONS
Frame: PBT (UL94V-0)
Impeller: PBT (UL94V-0)
Ambient Temperature Range:
• Dual Ball Bearing: -10°C ~ +70°C
• FMB / Sleeve Bearing: -10°C ~ +50°C
Storage Temperature Range: -40°C ~ +80°C
Motor Structure: Single-Phase Brushless DC Motor
Operating Environment: Non-Condensing
Weight: 38 g
Typical Applications
Electronic Equipment
Communication Equipment
Power Supplies
Medical Devices

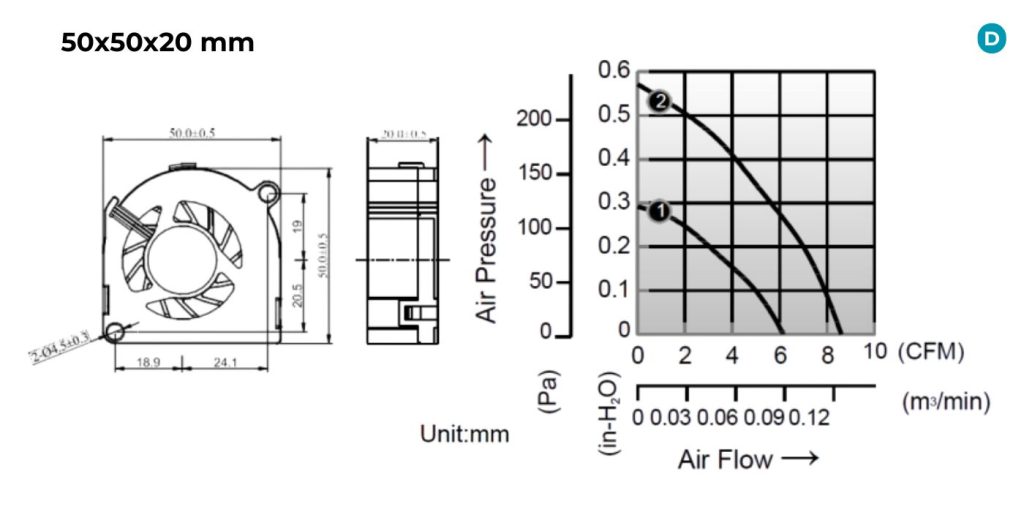

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Operating Voltage Range (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H₂O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD055020MB | 5 | 4.5–5.5 | 0.18 | 5000 | 6.1 | 0.29 | 33 |
| HYD125020MB | 12 | 7.0–13.2 | 0.08 | 5000 | 6.1 | 0.29 | 33 |
| HYD125020HB | 12 | 7.0–13.2 | 0.21 | 7000 | 8.0 | 0.57 | 50 |
