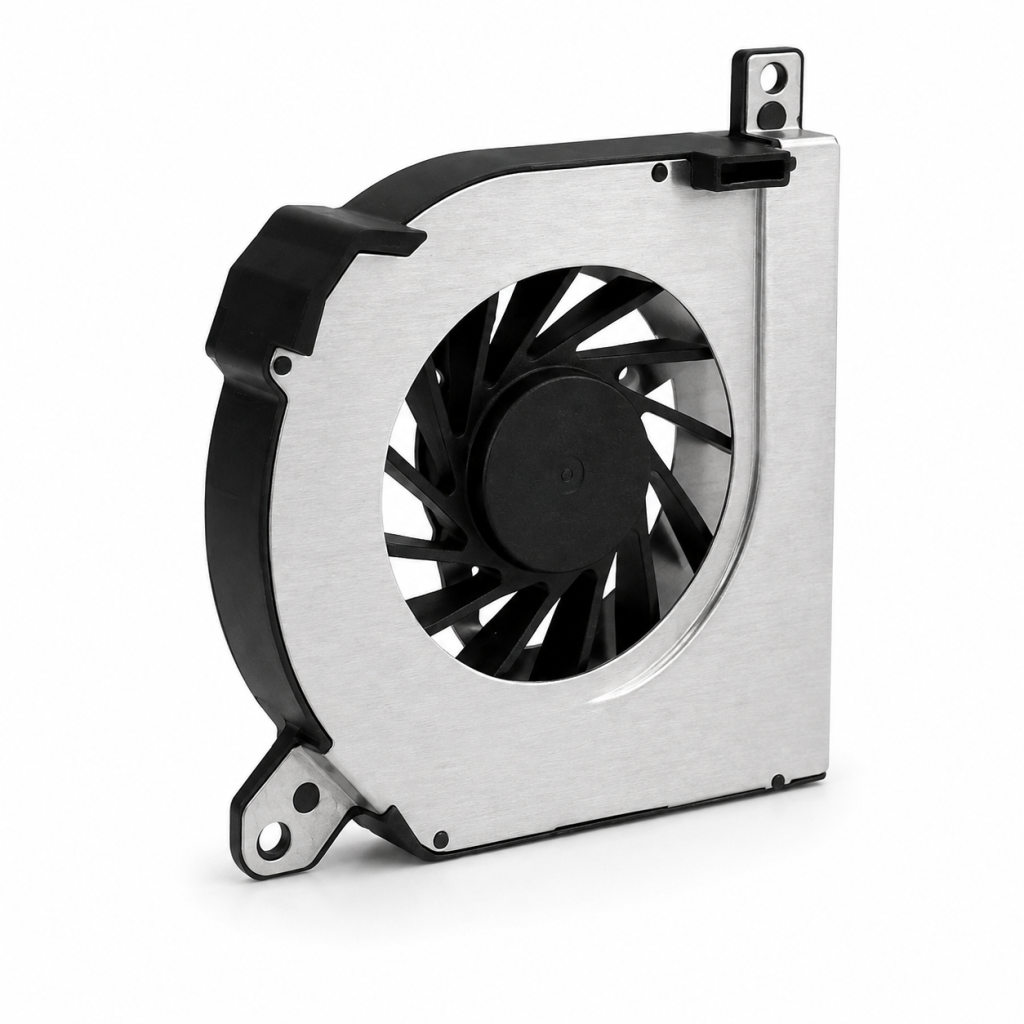

DC BLOWERS
55x62x12 mm
PRODUCT SPECIFICATIONS
Frame: PBT (UL94V-0)
Impeller: PBT (UL94V-0)
Ambient Temperature Range:
• Dual Ball Bearing: -10°C ~ +70°C
• FMB / Sleeve Bearing: -10°C ~ +50°C
Storage Temperature Range: -40°C ~ +80°C
Motor Structure: Single-Phase Brushless DC Motor
Operating Environment: Non-Condensing
Weight: 35 g
Typical Applications
Electronic Equipment
Communication Equipment
Power Supplies
Medical Devices

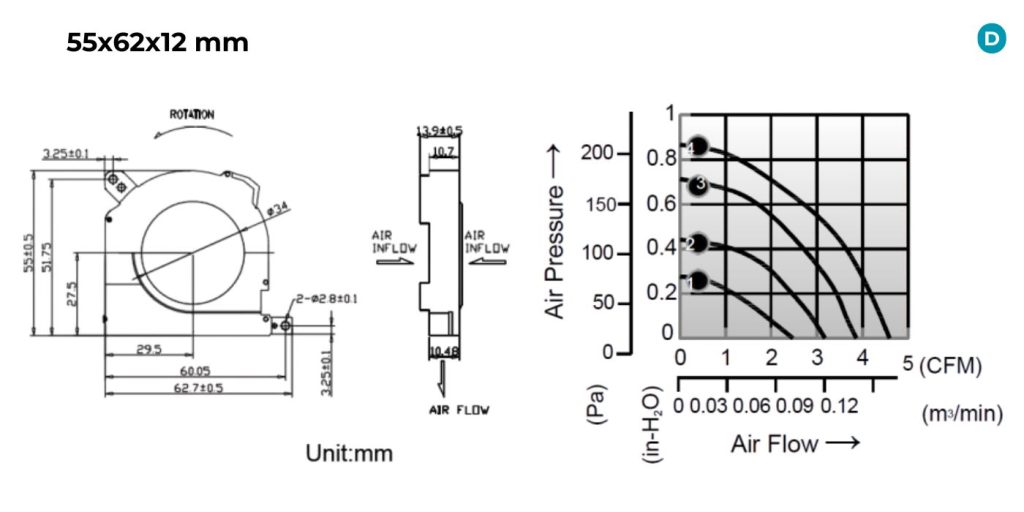

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Operating Voltage Range (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H₂O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD055512LB | 5 | 4.5–5.5 | 0.27 | 3900 | 3.5 | 0.33 | 27 |
| HYD055512MB | 5 | 4.5–5.5 | 0.33 | 4000 | 4.2 | 0.41 | 30 |
| HYD055512HB | 5 | 4.5–5.5 | 0.40 | 4900 | 5.1 | 0.56 | 33 |
| HYD125512LB | 12 | 7.0–13.2 | 0.16 | 3500 | 3.5 | 0.33 | 27 |
| HYD125512MB | 12 | 7.0–13.2 | 0.23 | 4000 | 4.2 | 0.41 | 30 |
| HYD125512HB | 12 | 7.0–13.2 | 0.33 | 4900 | 5.1 | 0.56 | 33 |
