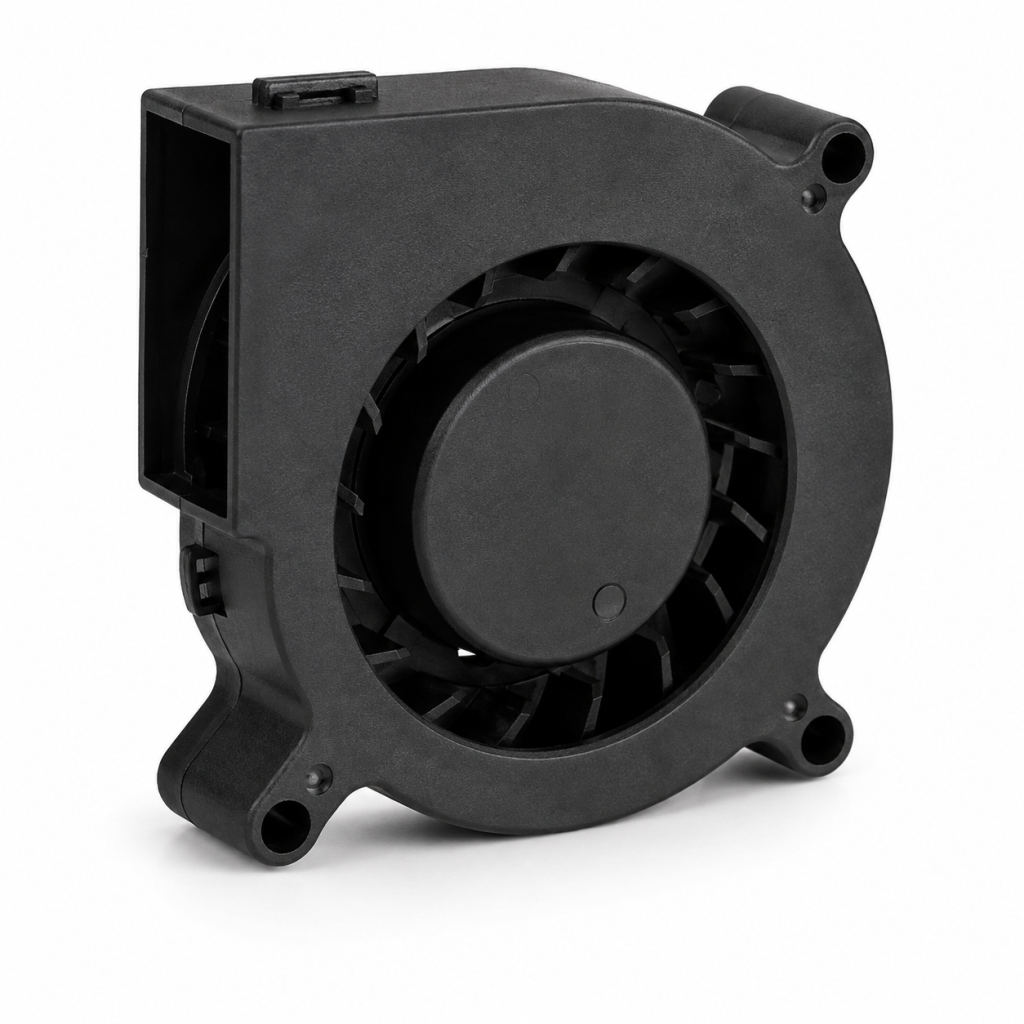

DC BLOWERS

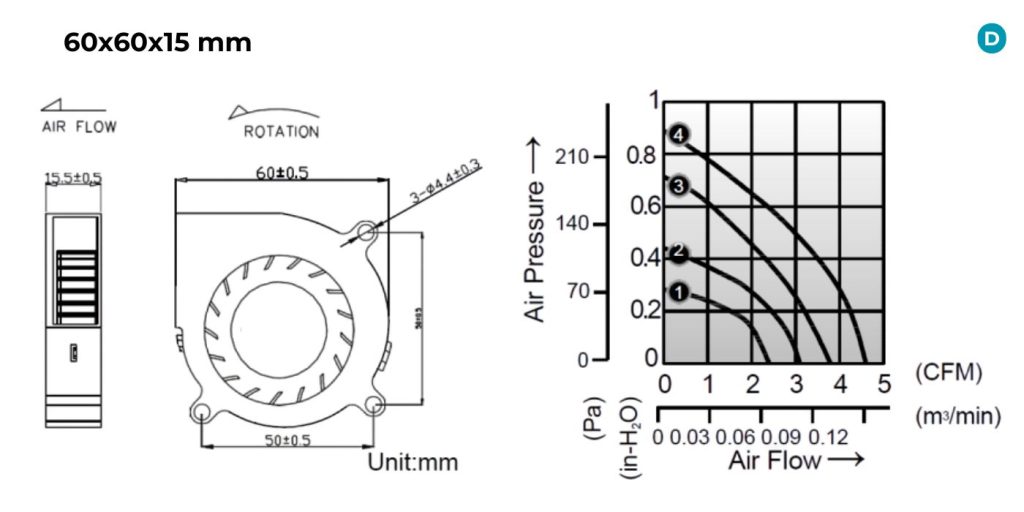

60x60x15 mm
PRODUCT SPECIFICATIONS
Frame: PBT (UL94V-0)
Impeller: PBT (UL94V-0)
Ambient Temperature Range:
• Dual Ball Bearing: -10°C ~ +70°C
• FMB / Sleeve Bearing: -10°C ~ +50°C
Storage Temperature Range: -40°C ~ +80°C
Motor Structure: Single-Phase Brushless DC Motor
Operating Environment: Non-Condensing
Weight: 40 g
Typical Applications
Electronic Equipment
Communication Equipment
Power Supplies
Medical Devices
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Operating Voltage Range (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H₂O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD126015LB | 12 | 7.0–13.2 | 0.07 | 3500 | 2.4 | 0.28 | 27 |
| HYD126015MB | 12 | 7.0–13.3 | 0.09 | 4500 | 3.1 | 0.44 | 33 |
| HYD126015HB | 12 | 7.0–13.4 | 0.11 | 5500 | 3.8 | 0.71 | 37 |
| HYD126015XB | 12 | 7.0–13.4 | 0.13 | 6500 | 4.6 | 0.89 | 45 |
