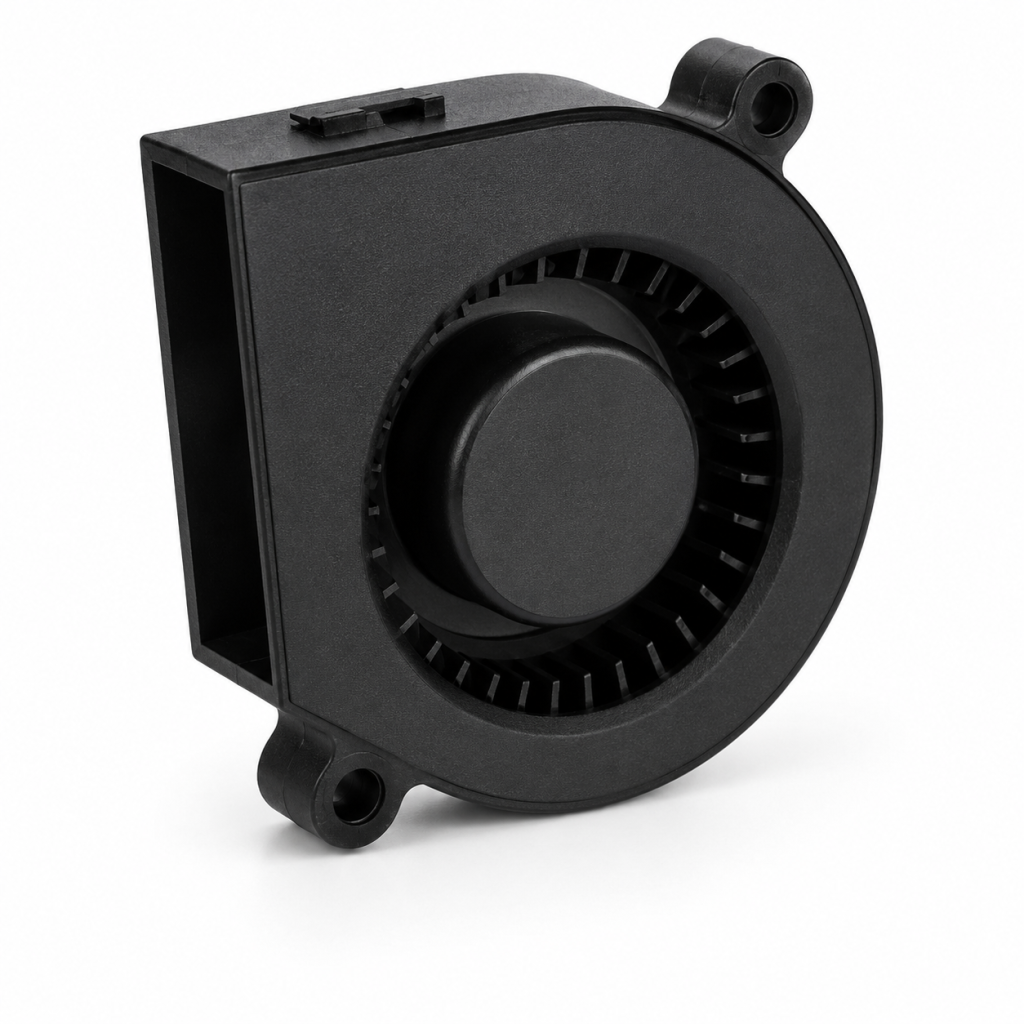

DC BLOWERS
60x60x18 mm
PRODUCT SPECIFICATIONS
Housing: PBT Plastic (UL94 V-0)
Impeller: PBT Plastic (UL94 V-0)
Ambient Temperature Range: -10°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Brushless DC Motor
Termination: Lead Wire
Weight: 41 g
Typical Applications
Electronic Equipment
Communication Equipment
Power Supplies
Medical Devices

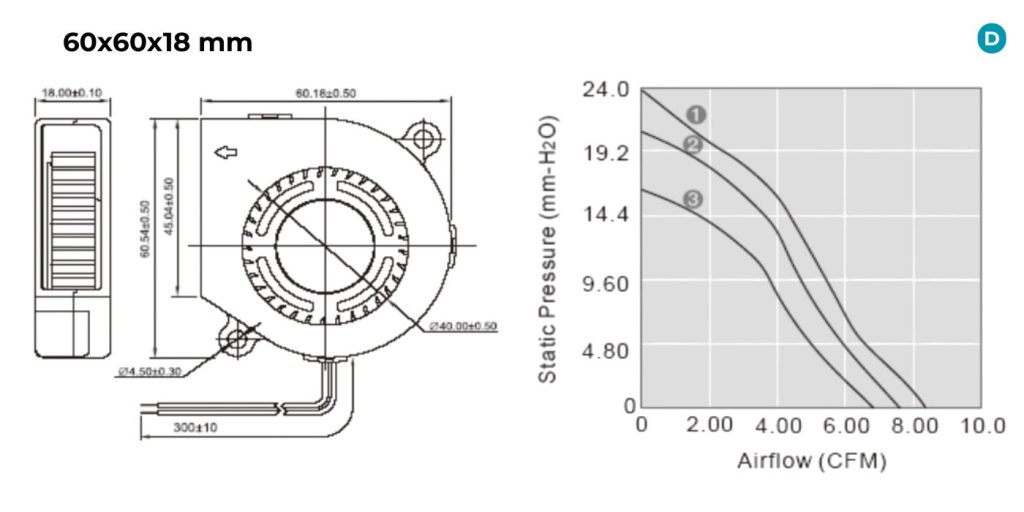

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H₂O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD126018LBL | 12 | 0.14 | 1.68 | 4200 | 6.7 | 5.52 | 38 |
| HYD126018MBL | 12 | 0.18 | 2.16 | 4800 | 7.7 | 7.09 | 43.5 |
| HYD126018HBL | 12 | 0.28 | 3.36 | 5400 | 8.2 | 11.04 | 49 |
