AC CENTRIFUGAL FANS

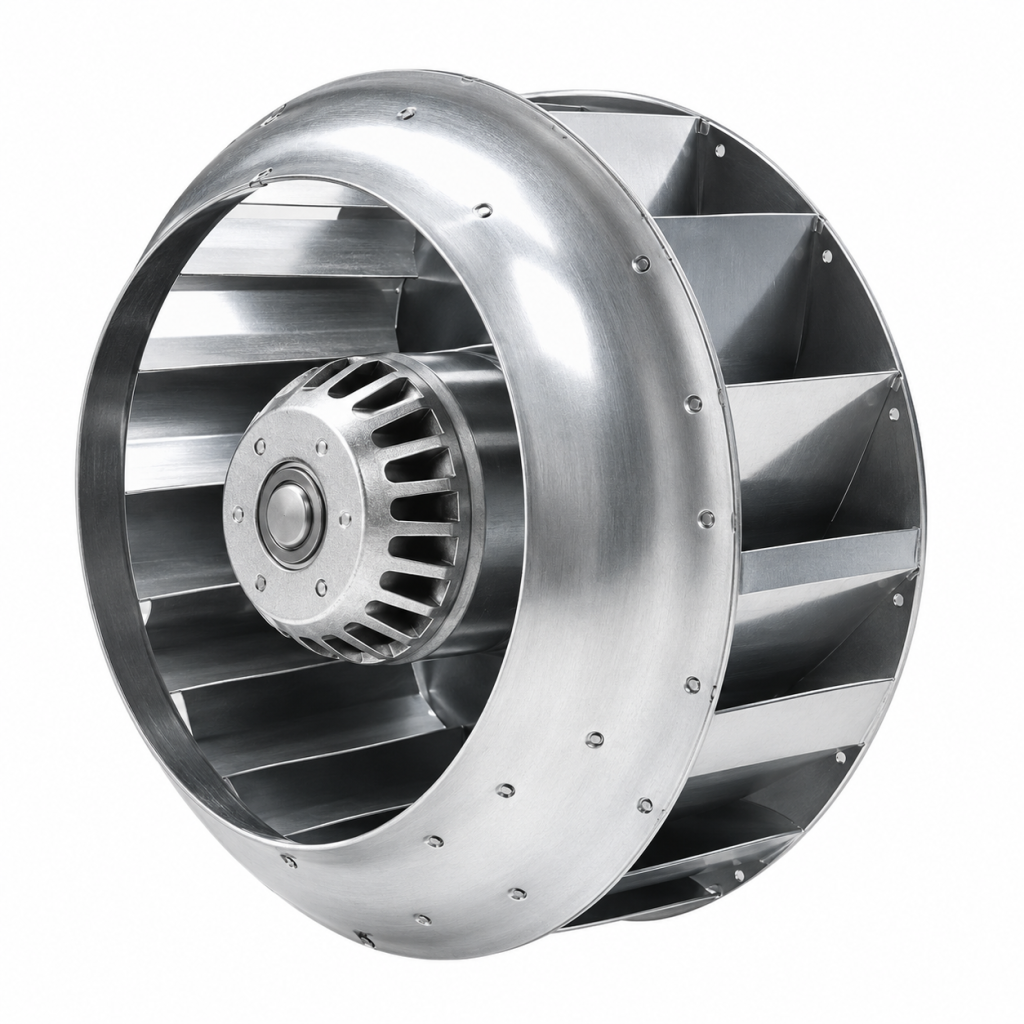

Backward-Curved Centrifugal Fan 110V / 2-Pole
PRODUCT SPECIFICATIONS
Impeller: Steel
Ambient Temperature Range: -20°C ~ +70°C
Insulation Class: Class F
Bearing: Ball Bearing
Motor Structure: Outer-Rotor Motor
Motor Protection: Thermal Protection
Termination: Lead Wire, 450 ± 20 mm
Typical Applications
HVAC Systems
Machinery Cooling
Industrial Ventilation
Air Handling Units
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (m³/hr) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYC11755B | 110 | 60 | 0.62 | 70 | 2650 | 430 | 58 |
| HYC11972B | 110 | 60 | 0.8 | 86 | 2385 | 570 | 61 |
| HYC12210B | 110 | 60 | 1.9 | 200 | 2900 | 1050 | 75 |
| HYC12275B | 110 | 60 | 1.05 | 115 | 2925 | 870 | 72 |
| HYC12588B | 110 | 60 | 2 | 220 | 2200 | 1150 | 76 |
| HYC12892B | 110 | 60 | 2.8 | 300 | 2370 | 1230 | 75 |

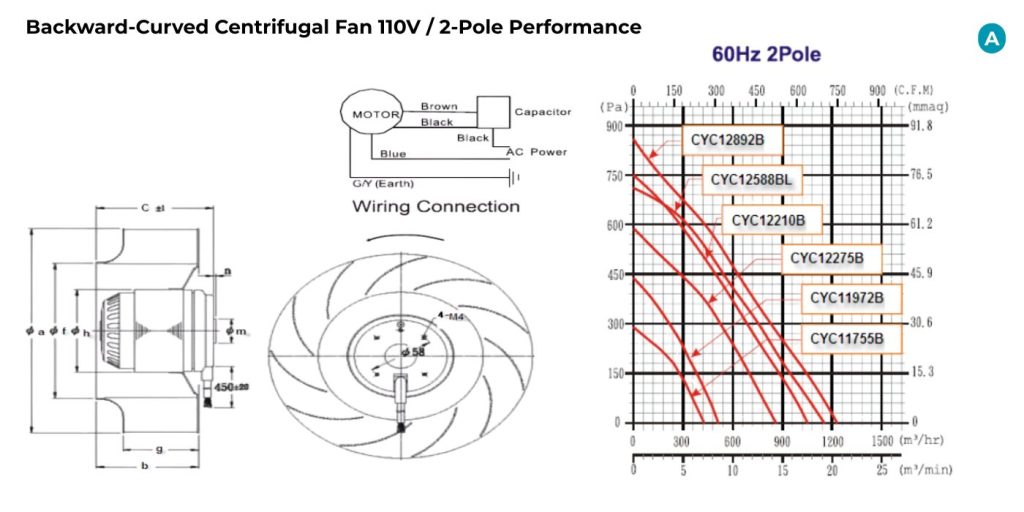

| Model | a | b | c | f | g | h | m | n |
|---|---|---|---|---|---|---|---|---|
| HYC11755B | 175 | 75 | 83 | 132 | 60 | 92 | 27 | 2 |
| HYC11972B | 190 | 64 | 73 | 133 | 46 | 92 | 27 | 2 |
| HYC12210B | 225 | 88 | 100 | 153 | 65 | 92 | 27 | 2 |
| HYC12275B | 225 | 65 | 75 | 153 | 42 | 92 | 27 | 2 |
| HYC12588B | 250 | 76 | 88 | 187 | 52 | 92 | 27 | 2 |
| HYC12892B | 280 | 72 | 92 | 210 | 44 | 92 | 27 | 2 |
