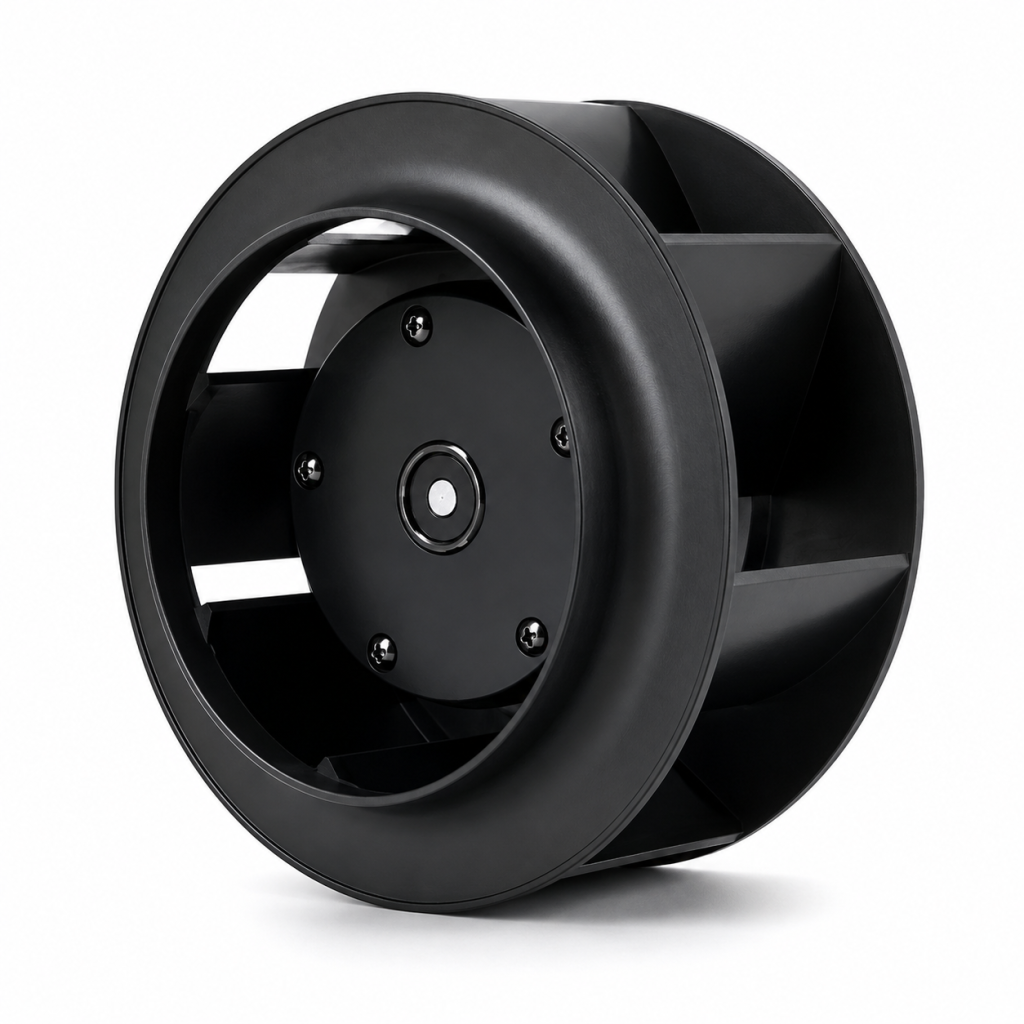

AC CENTRIFUGAL FANS
ø133x80 mm
(ø5.23x3.14 in)
PRODUCT SPECIFICATIONS
Impeller: Plastic
Ambient Temperature Range: -20°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Capacitor Induction Motor
Motor Protection: Thermal Protection with Auto Restart
Termination: Lead Wire
Certification: TÜV / UL
Weight: 800 g
Typical Applications
HVAC Systems
Machinery Cooling
Industrial Ventilation
Air Handling Units

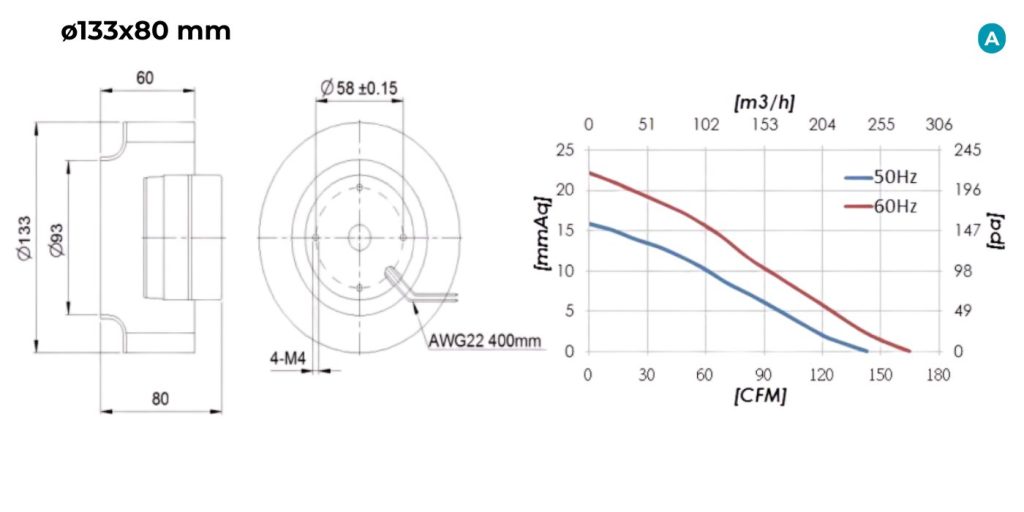

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
TÜV / UL |
|---|---|---|---|---|---|---|---|---|---|
| HYC11380SB | 115 | 50/60 | 0.26/0.24 | 26/28 | 2800/3200 | 145/165 | 15/21 | 62/65 | ✓ |
| HYC21380SB | 230 | 50/60 | 0.10/0.12 | 23/27 | 2800/3200 | 145/165 | 15/21 | 62/65 | ✓ |
