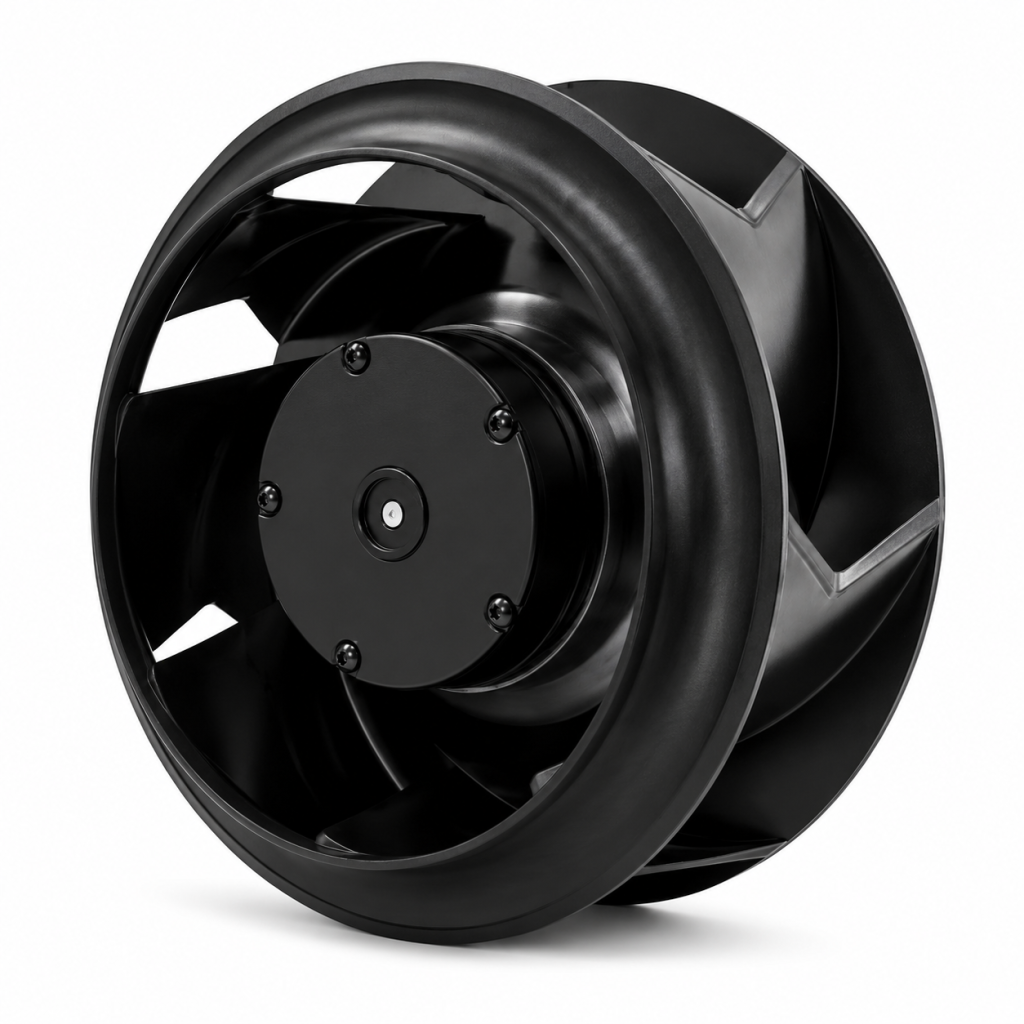

AC CENTRIFUGAL FANS
ø170x65 mm
(ø6.69x2.55 in)
PRODUCT SPECIFICATIONS
Impeller: Plastic
Ambient Temperature Range: -20°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Capacitor Induction Motor
Motor Protection: Thermal Protection with Auto Restart
Termination: Lead Wire
Certification: TÜV / UL
Weight: 900 g
Typical Applications
HVAC Systems
Machinery Cooling
Industrial Ventilation
Air Handling Units

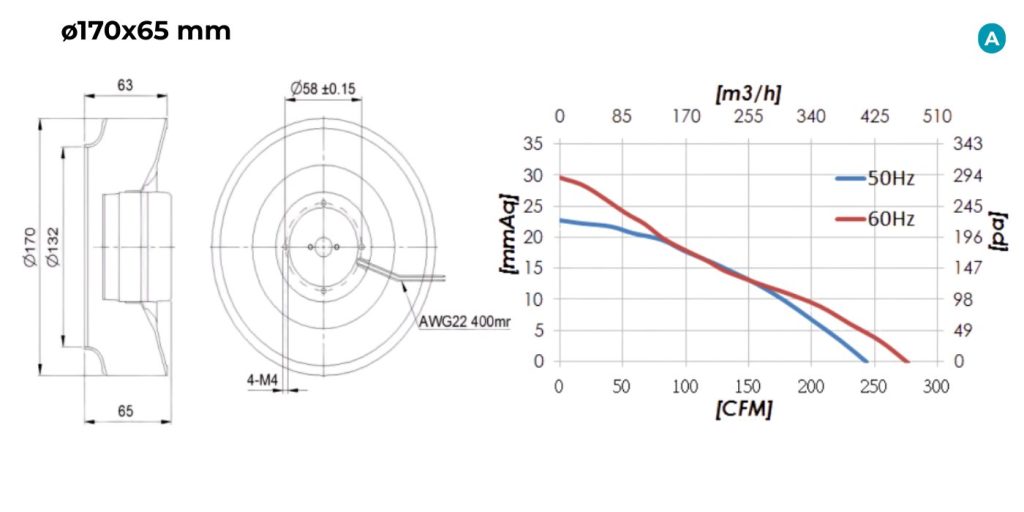

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
TÜV / UL |
|---|---|---|---|---|---|---|---|---|---|
| HYC11765HB | 115 | 50/60 | 0.26/0.27 | 27/31 | 2750/3100 | 243/276 | 23/30 | 67/69 | ✓ |
| HYC21765HB | 230 | 50/60 | 0.10/0.13 | 24/30 | 2750/3100 | 243/276 | 23/30 | 67/69 | ✓ |
