AC CENTRIFUGAL FANS
ø175x54 mm
PRODUCT SPECIFICATIONS
Impeller: Plastic
Ambient Temperature Range: -10°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Shaded-Pole or Capacitor Induction Motor
Motor Protection: Thermal Protection
Termination: Lead Wire
Weight: 1,300 g
Typical Applications
HVAC Systems
Machinery Cooling
Industrial Ventilation
Air Handling Units

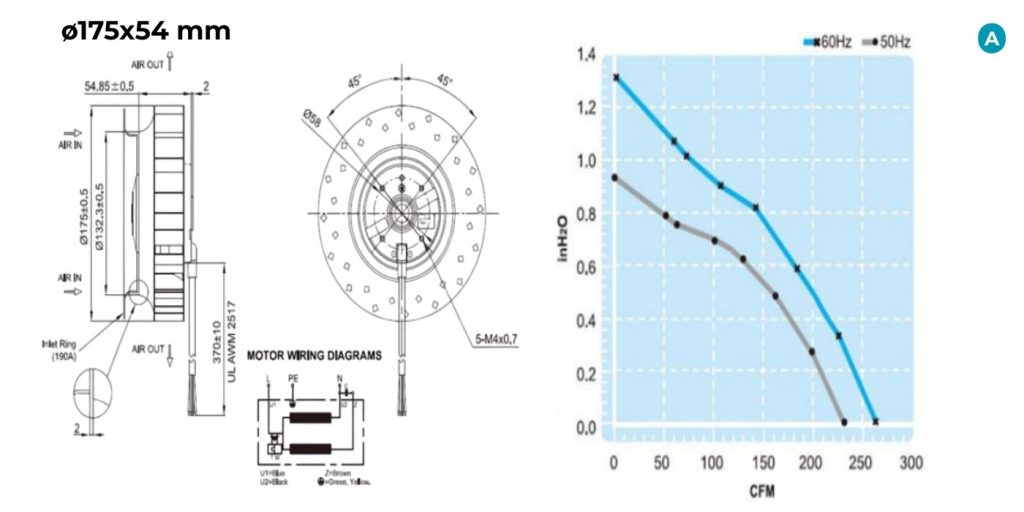

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYC11754HB | 115 | 50/60 | 0.48/0.51 | 60/66 | 2550/2900 | 244/274 | 23/33 | 66/70 |
| HYC21754HB | 230 | 50/60 | 0.24/0.26 | 60/66 | 2550/2900 | 244/274 | 23/33 | 66/70 |
