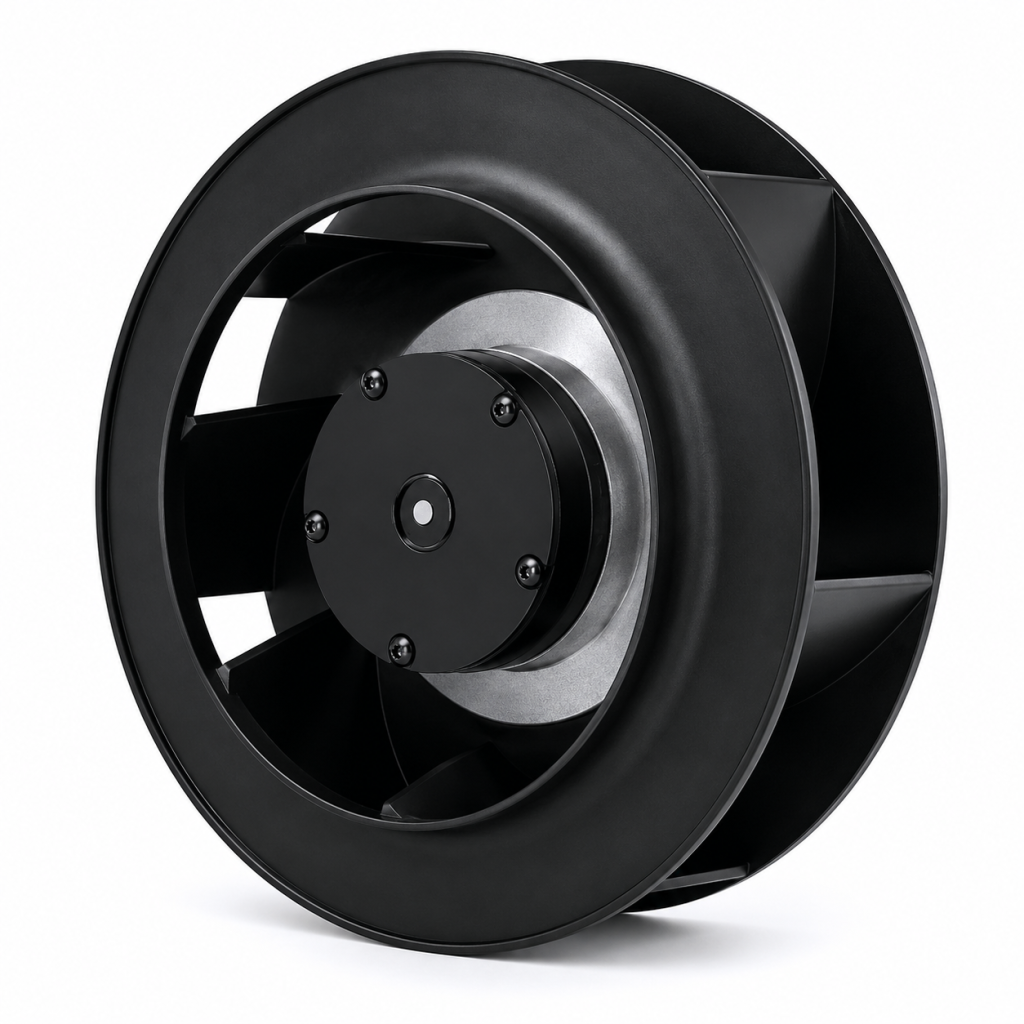

AC CENTRIFUGAL FANS

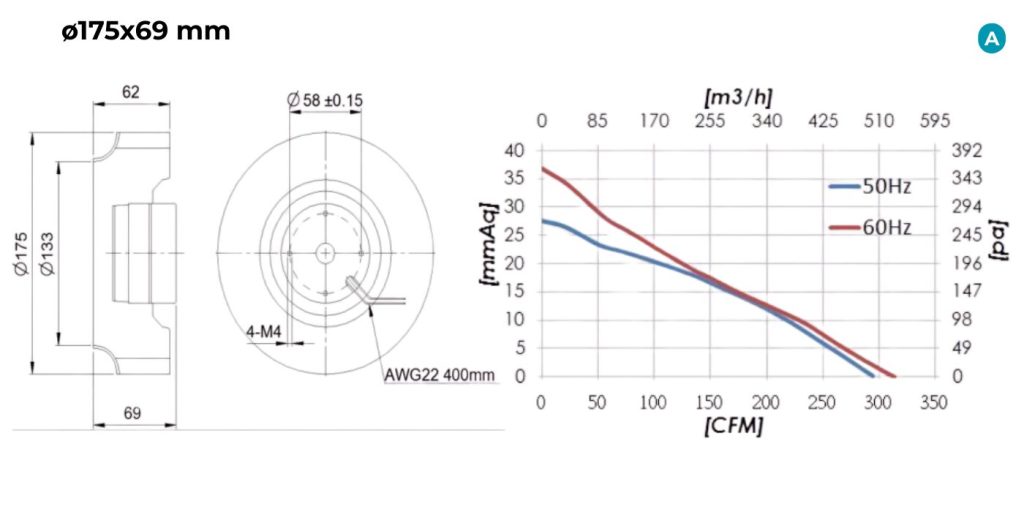

ø175x69 mm
(ø6.88x2.71 in)
PRODUCT SPECIFICATIONS
Impeller: Plastic
Ambient Temperature Range: -20°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Capacitor Induction Motor
Motor Protection: Thermal Protection with Auto Restart
Termination: Lead Wire
Certification: TÜV / UL
Weight: 870 g
Typical Applications
HVAC Systems
Machinery Cooling
Industrial Ventilation
Air Handling Units
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
TÜV / UL |
|---|---|---|---|---|---|---|---|---|---|
| HYC11769HB | 115 | 50/60 | 0.48/0.54 | 53/63 | 2600/2900 | 294/313 | 28/37 | 66/68 | ✓ |
| HYC21769HB | 230 | 50/60 | 0.22/0.28 | 52/64 | 2600/2900 | 294/313 | 28/37 | 66/68 | ✓ |
