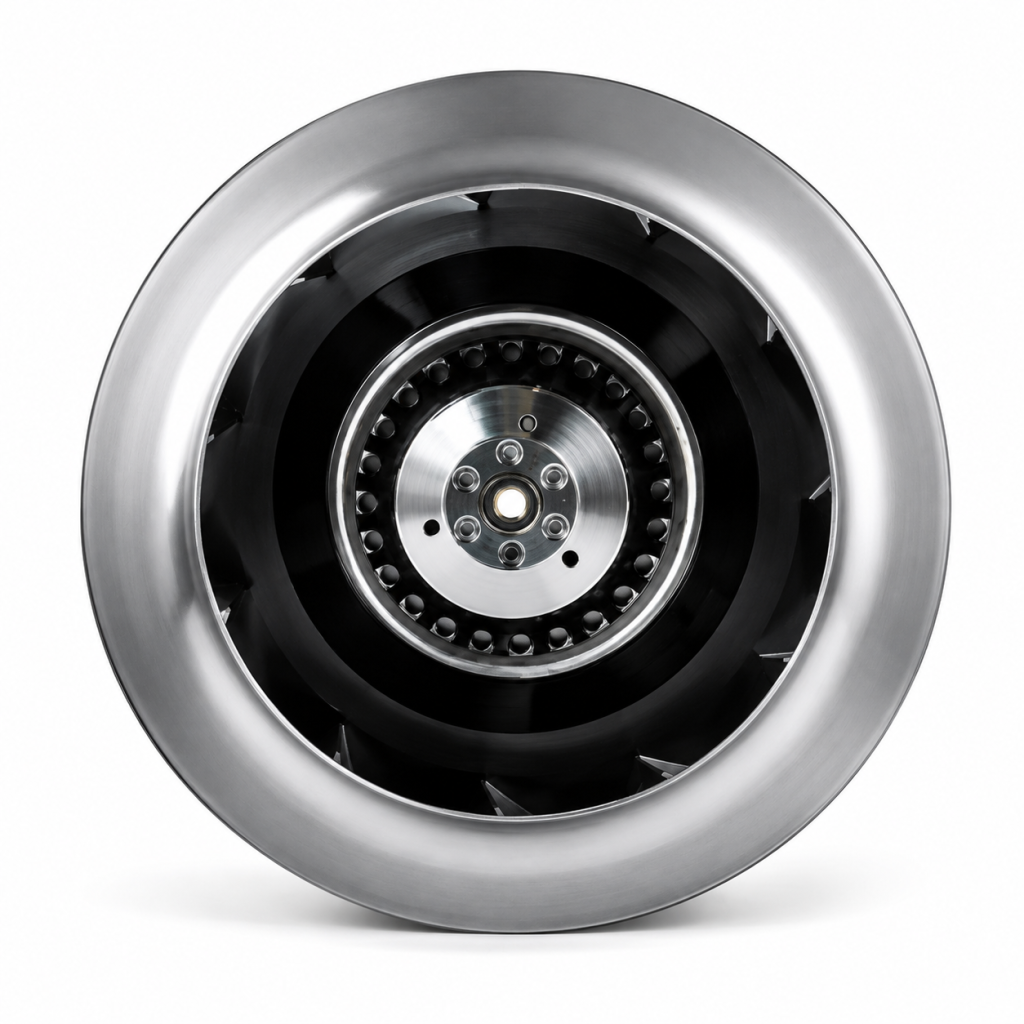

AC CENTRIFUGAL FANS
ø182x55 mm
PRODUCT SPECIFICATIONS
Impeller: Plastic
Ambient Temperature Range: -10°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Shaded-Pole or Capacitor Induction Motor
Motor Protection: Thermal Protection
Termination: Lead Wire
Weight: 1,200 g
Typical Applications
HVAC Systems
Machinery Cooling
Industrial Ventilation
Air Handling Units

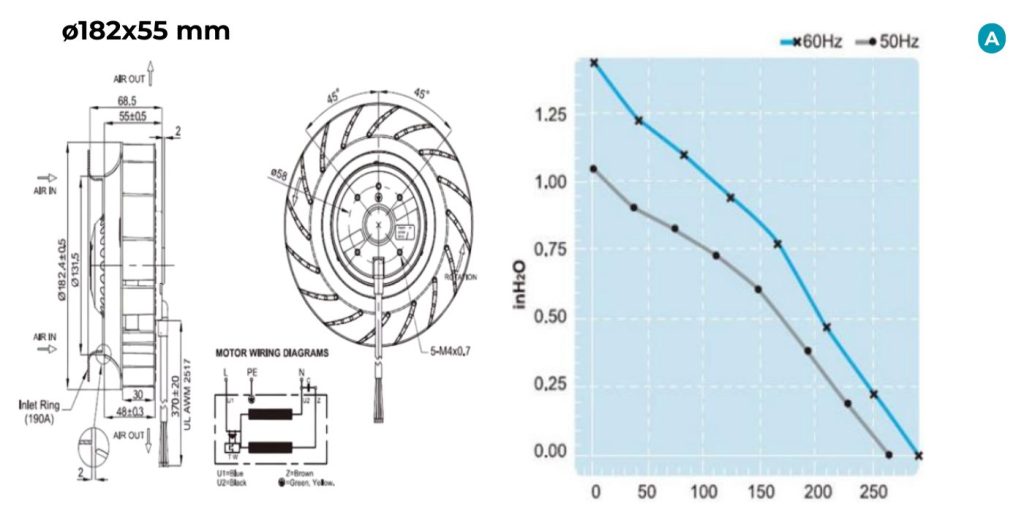

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYC11855HB | 115 | 50/60 | 0.60/0.7 | 63/78 | 2550/2800 | 265/290 | 26/36 | 64/67 |
| HYC21855HB | 230 | 50/60 | 0.30/0.34 | 63/78 | 2550/2800 | 265/290 | 26/36 | 64/67 |
