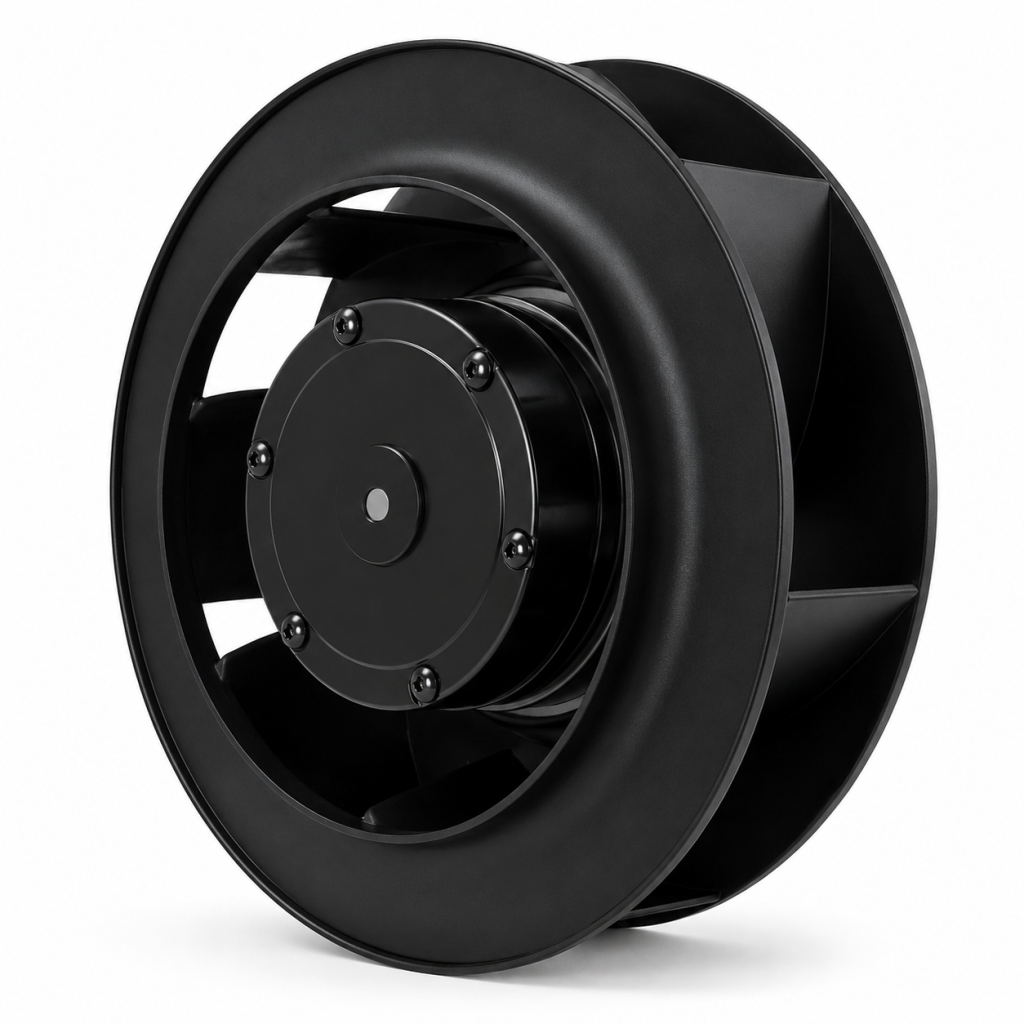

AC CENTRIFUGAL FANS
ø190x72 mm
(ø7.48x2.83 in)
PRODUCT SPECIFICATIONS
Impeller: Plastic
Ambient Temperature Range: -20°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Capacitor Induction Motor
Motor Protection: Thermal Protection with Auto Restart
Termination: Lead Wire
Certification: TÜV / UL
Weight: 1,820 g
Typical Applications
HVAC Systems
Machinery Cooling
Industrial Ventilation
Air Handling Units

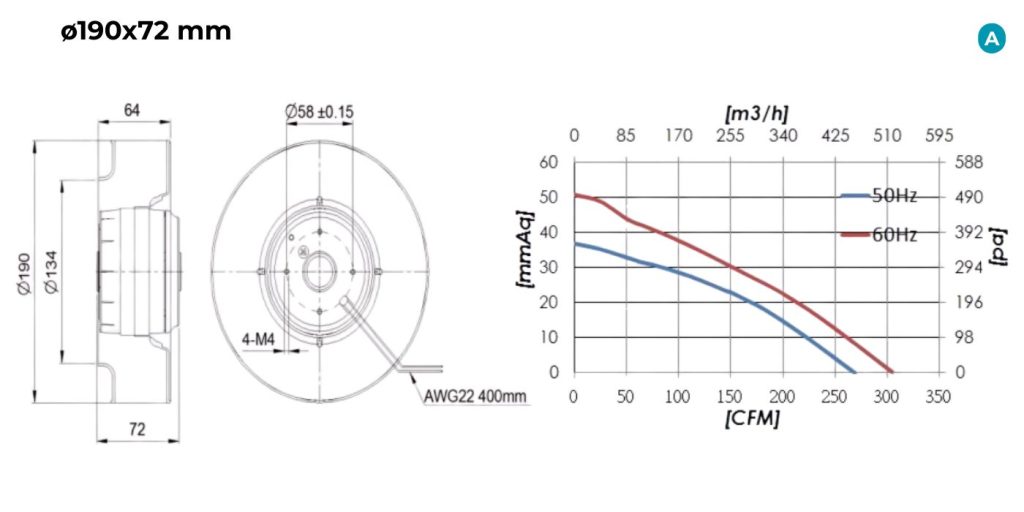

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
TÜV / UL |
|---|---|---|---|---|---|---|---|---|---|
| HYC11972HB | 115 | 50/60 | 0.56/0.7 | 58/80 | 2700/3100 | 269/304 | 37/51 | 70/73 | ✓ |
| HYC21972HB | 230 | 50/60 | 0.26/0.34 | 58/80 | 2700/3100 | 269/304 | 37/51 | 70/73 | ✓ |
