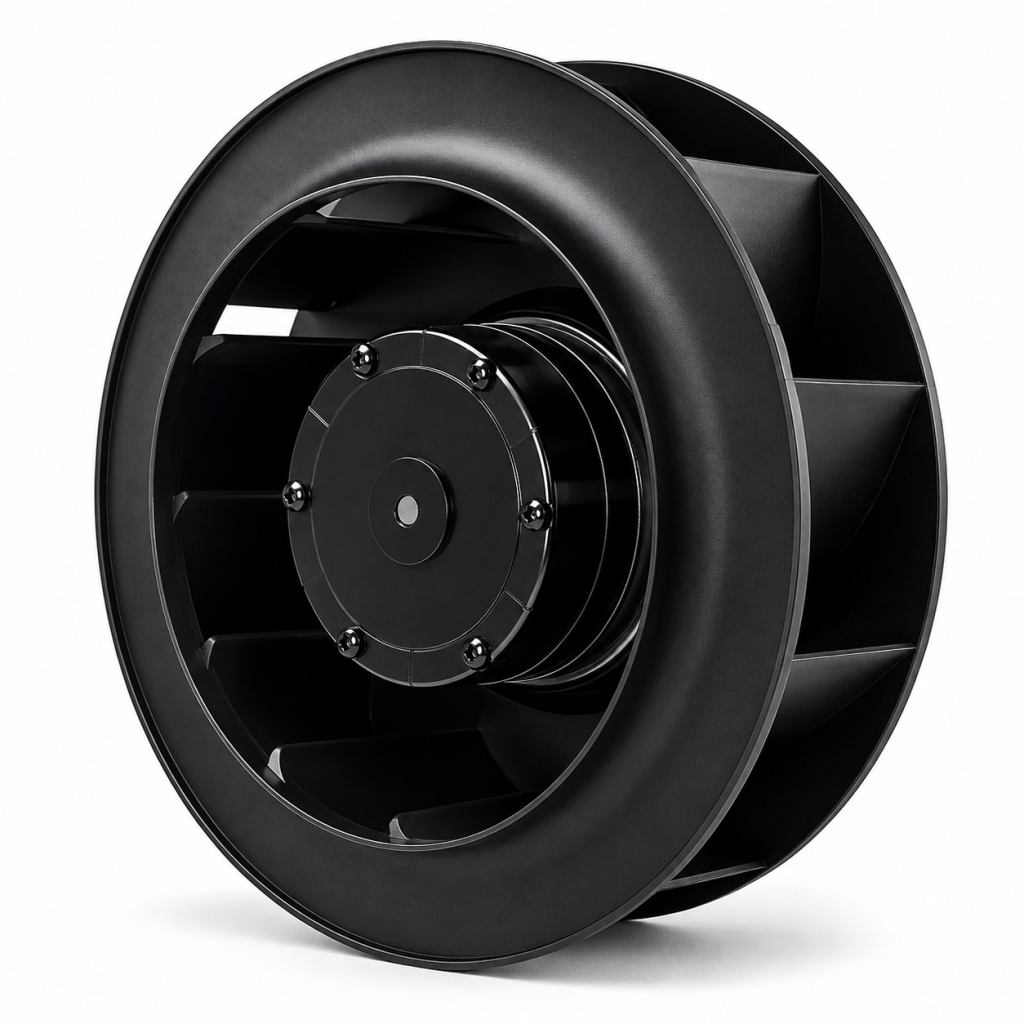

AC CENTRIFUGAL FANS

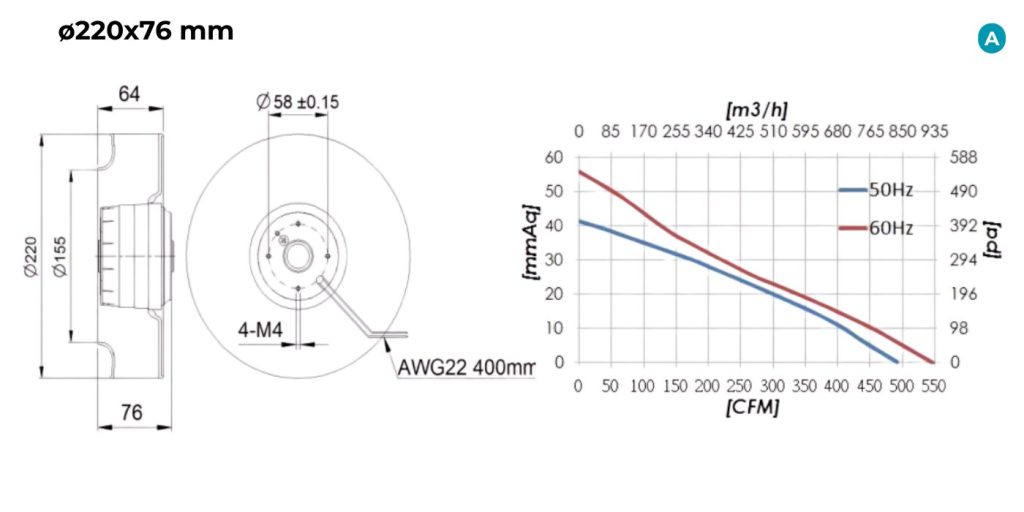

ø220x76 mm
(ø8.66x2.99 in)
PRODUCT SPECIFICATIONS
Impeller: Plastic
Ambient Temperature Range: -20°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Capacitor Induction Motor
Motor Protection: Thermal Protection with Auto Restart
Termination: Lead Wire
Certification: TÜV / UL
Weight: 1,980 g
Typical Applications
HVAC Systems
Machinery Cooling
Industrial Ventilation
Air Handling Units
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
TÜV / UL |
|---|---|---|---|---|---|---|---|---|---|
| HYC12276HB | 115 | 50/60 | 0.7/1 | 82/115 | 2650/2950 | 490/550 | 40/55 | 75/78 | ✓ |
| HYC22276HB | 230 | 50/60 | 0.35/0.5 | 82/115 | 2650/2950 | 490/550 | 40/55 | 75/78 | ✓ |
